10.2.3 Application Curves

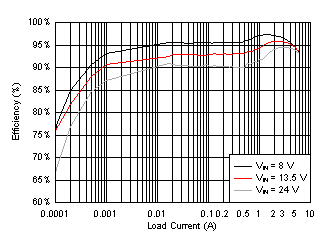

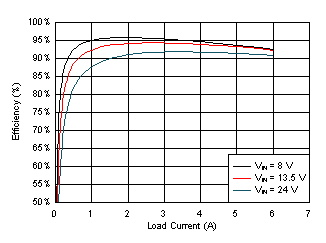

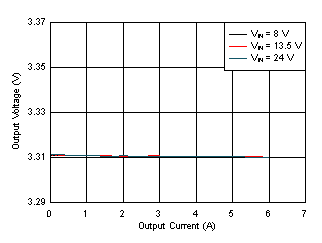

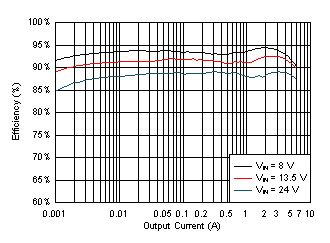

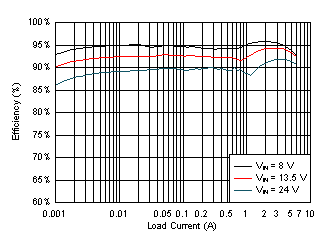

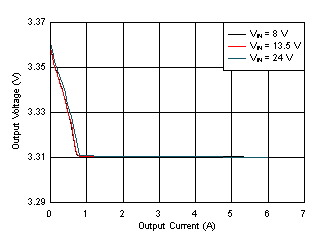

| VOUT = 3.3 V | FSW = 400 kHz | Auto Mode |
| VOUT = 3.3 V | FSW = 2100 kHz | AUTO Mode |

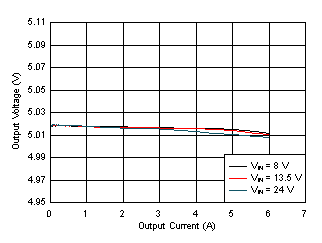

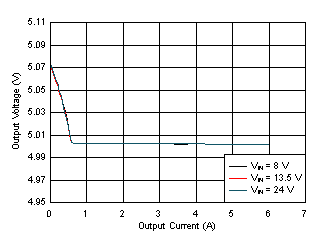

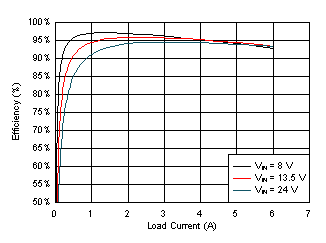

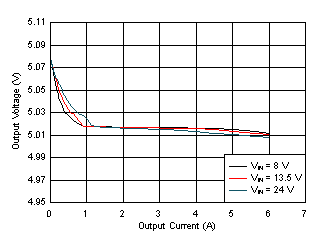

| VOUT = 5 V | FSW = 400 kHz | AUTO Mode |
| VOUT = 5 V | FSW = 2100 kHz | AUTO Mode |
| VOUT = 3.3 V | FSW = 400 kHz | Auto Mode |
| VOUT = 3.3 V | FSW = 2100 kHz | AUTO Mode |

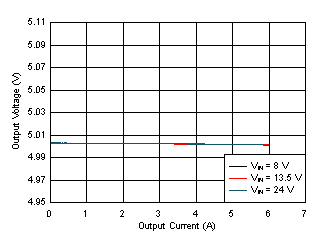

| VOUT = 5 V | FSW = 400 kHz | AUTO Mode |
| VOUT = 5 V | FSW = 2100 kHz | AUTO Mode |

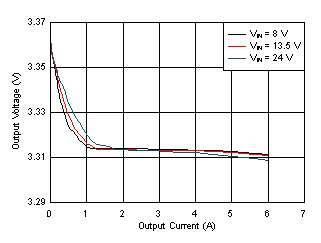

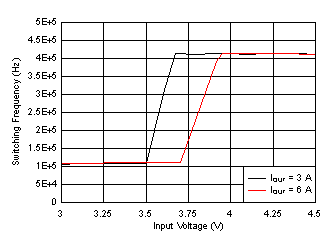

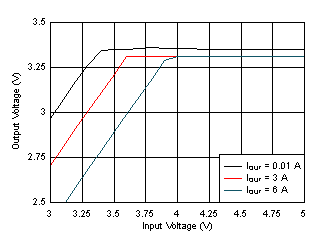

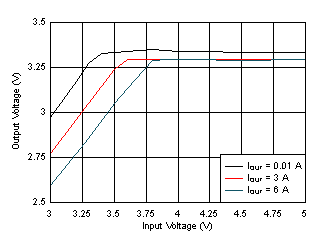

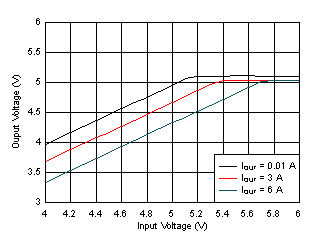

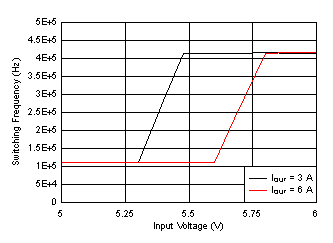

| VOUT = 3.3 V | FSW = 400 kHz | AUTO Mode |
| VOUT = 5 V | FSW = 400 kHz | AUTO Mode |
| VOUT = 3.3 V | FSW = 400 kHz | AUTO Mode |
| VOUT = 5 V | FSW = 400 kHz | AUTO Mode |

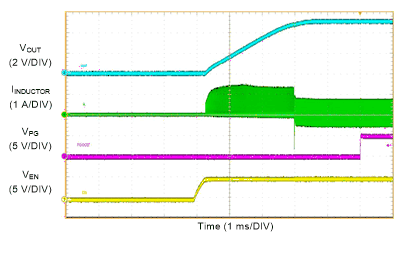

| VOUT = 5 V | FSW = 2100 kHz | AUTO Mode |

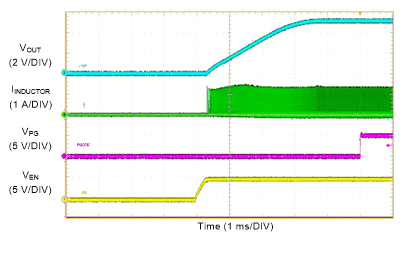

| IOUT = 50 mA | VIN = 13.5 V |
| VOUT = 5 V | FSW = 2100 kHz | AUTO Mode |
| IOUT = 50 mA | VIN = 13.5 V |

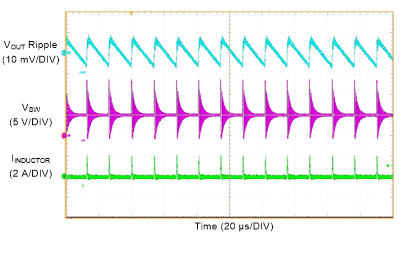

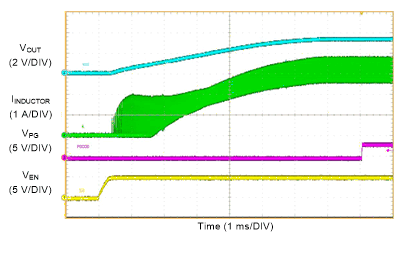

| VOUT = 3.3 V | FSW = 2100 kHz | FPWM Mode |
| IOUT = 3.25 A | VIN = 13.5 V |
| VOUT = 5 V | FSW = 2100 kHz | FPWM Mode |
| IOUT = Short Circuit to 5 A | VIN = 13.5 V | |

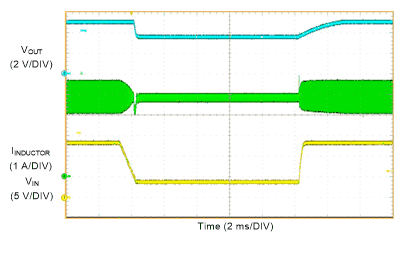

| VOUT = 5 V | FSW = 2100 kHz | FPWM Mode |
| IOUT = 4 A | VIN = 13.5 V to 4 V to 13.5 V | |

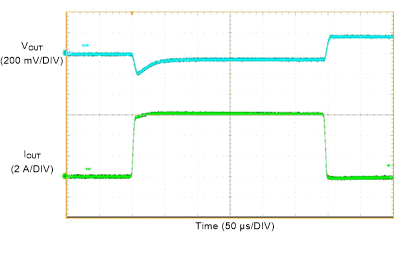

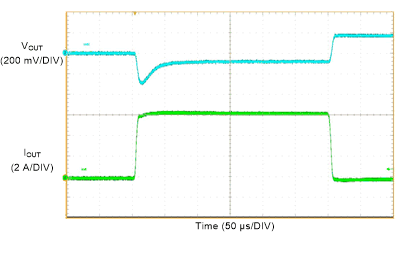

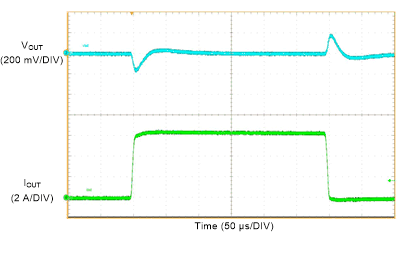

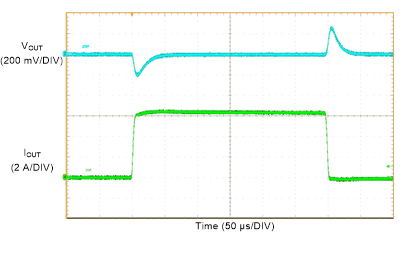

| VOUT = 5 V | FSW = 400 kHz | FPWM Mode |
| IOUT = 0 A to 6 A to 0 A | VIN = 13.5 V | TR = TF = 6 μs |
| VOUT = 5 V | FSW = 400 kHz | AUTO Mode |
| IOUT = 50 mA to 6 A to 50 mA | VIN = 13.5 V | TR = TF = 6 μs |

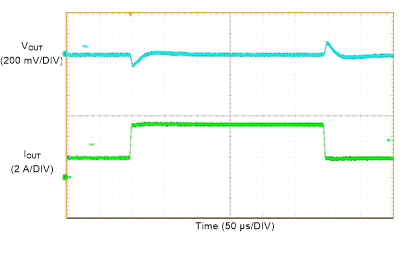

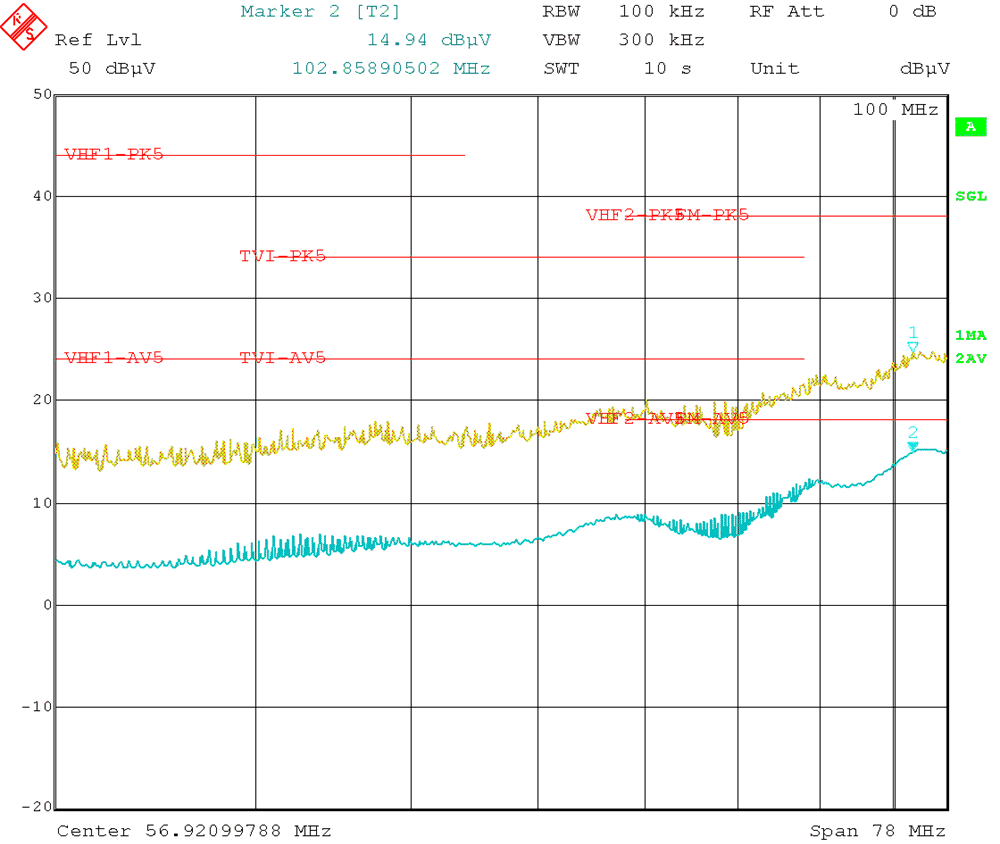

| VOUT = 3.3 V | FSW = 400 kHz | AUTO Mode |
| IOUT = 2 A to 4 A to 2 A | VIN = 13.5 V | TR = TF = 2 μs |
| VOUT = 5 V | FSW = 2100 kHz | FPWM Mode |
| IOUT = 0 A to 6 A to 0 A | VIN = 13.5 V | TR = TF = 6 μs |
| VOUT = 5 V | FSW = 400 kHz | IOUT = 5 A |
| Frequency Tested: 30 MHz to 108 MHz | ||

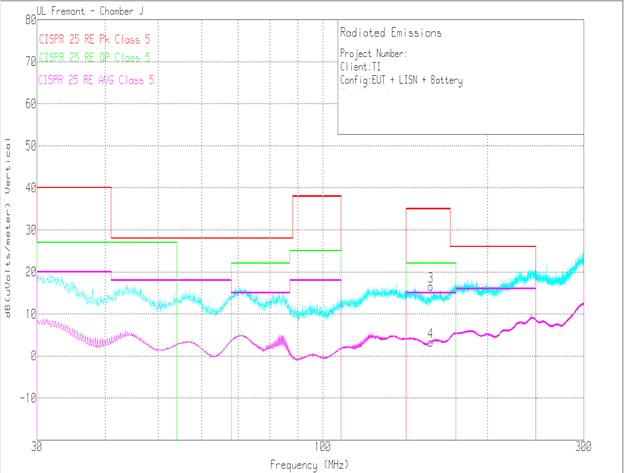

| VOUT = 5 V | FSW = 400 kHz | IOUT = 5 A |
| Frequency Tested: 30 MHz to 300 MHz | ||

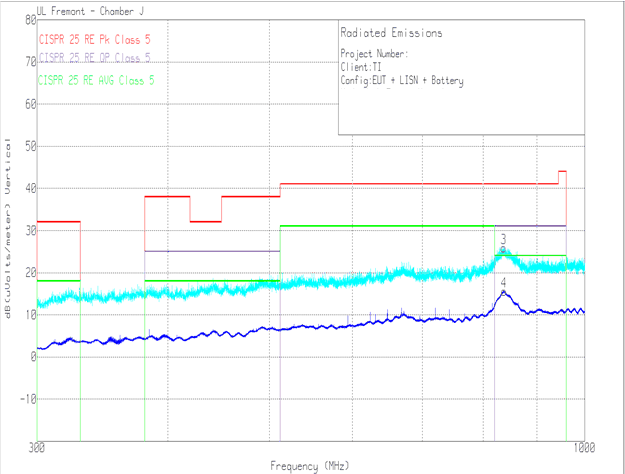

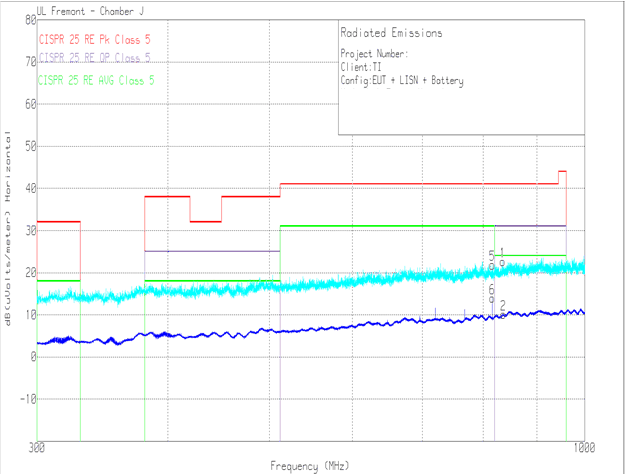

| VOUT = 5 V | FSW = 400 kHz | IOUT = 5 A |
| Frequency Tested: 300 MHz to 1 GHz | ||

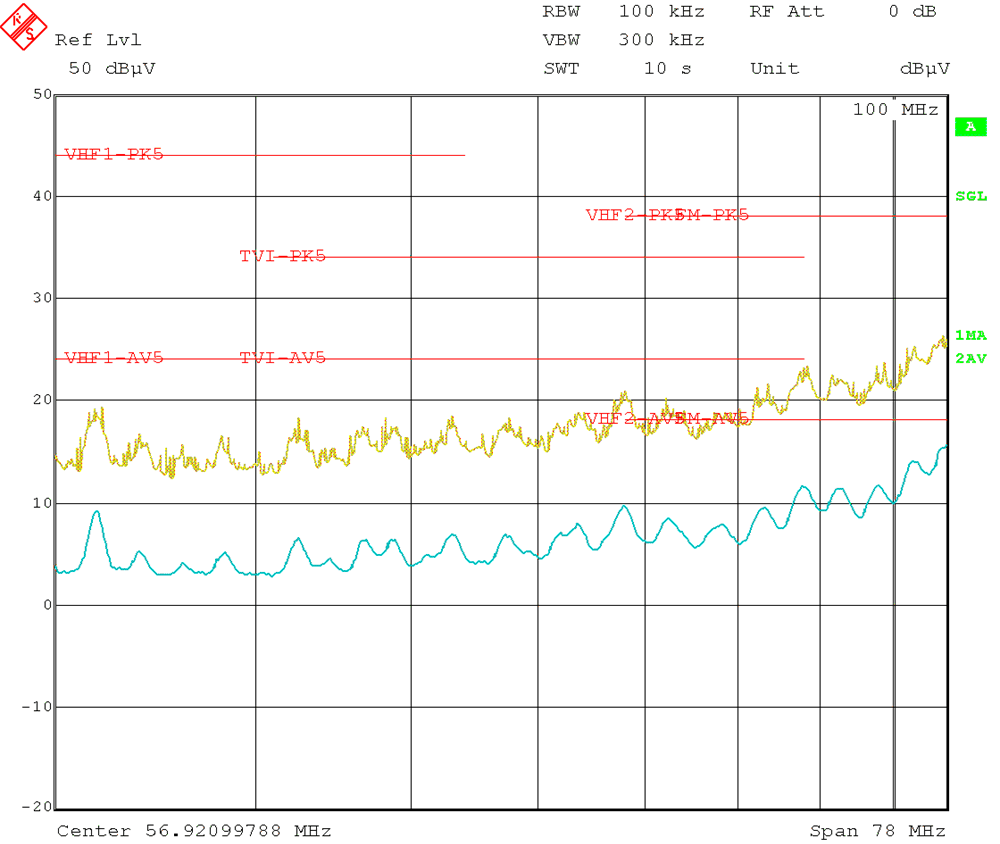

| FSW = 2100 kHz | VOUT = 5 V | IOUT = 5 A |
| Frequency Tested: 30 MHz to 108 MHz | ||

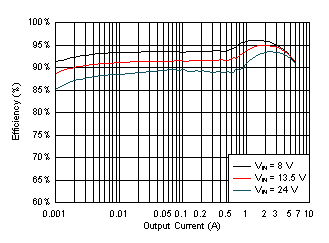

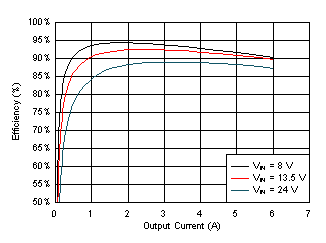

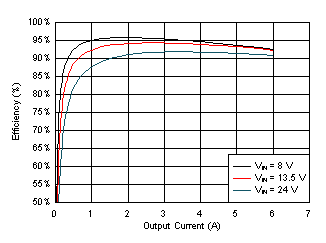

| VOUT = 3.3 V | FSW = 400 kHz | FPWM Mode |
| VOUT = 3.3 V | FSW = 2100 kHz | FPWM Mode |
| VOUT = 5 V | FSW = 400 kHz | FPWM Mode |
| VOUT = 5 V | FSW = 2100 kHz | FPWM Mode |

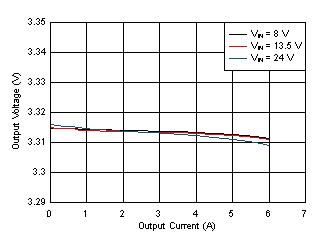

| VOUT = 3.3 V | FSW = 400 kHz | FPWM Mode |
| VOUT = 3.3 V | FSW = 2100 kHz | FPWM Mode |
| VOUT = 5 V | FSW = 400 kHz | FPWM Mode |
| VOUT = 5 V | FSW = 2100 kHz | FPWM Mode |

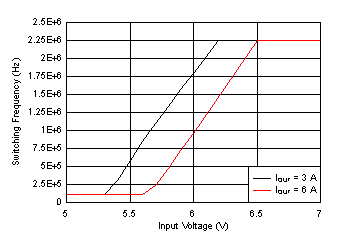

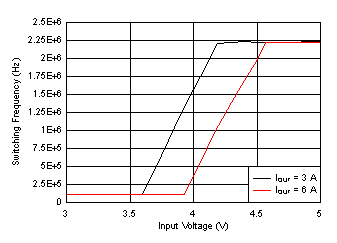

| VOUT = 3.3 V | FSW = 2100 kHz | AUTO Mode |
| VOUT = 5 V | FSW = 2100 kHz | AUTO Mode |
| VOUT = 3.3 V | FSW = 2100 kHz | AUTO Mode |
| VOUT = 5 V | FSW = 2100 kHz | AUTO Mode |

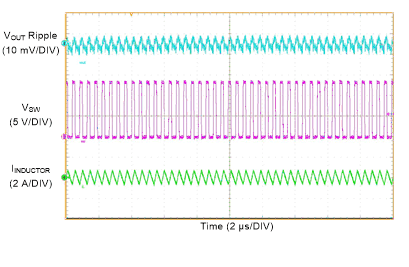

| VOUT = 5 V | FSW = 2100 kHz | FPWM Mode |
| IOUT = 50 mA | VIN = 13.5 V |
| VOUT = 5 V | FSW = 2100 kHz | FPWM Mode |
| IOUT = 50 mA | VIN = 13.5 V |

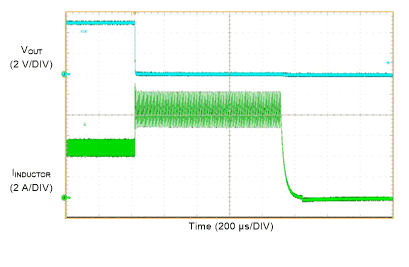

| VOUT = 5 V | FSW = 2100 kHz | FPWM Mode |
| IOUT = 5 A to Short Circuit | VIN = 13.5 V | |
| VOUT = 5 V | FSW = 2100 kHz | FPWM Mode |
| IOUT = Short Circuit | VIN = 13.5 V | |

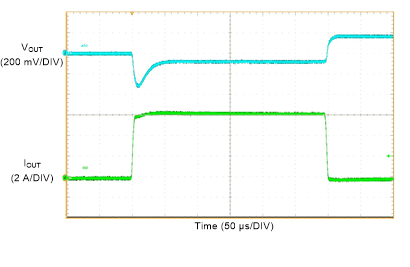

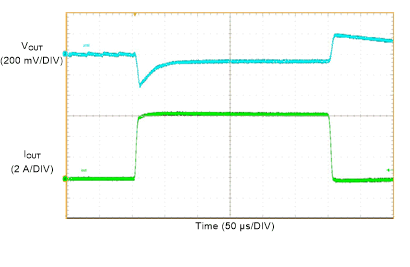

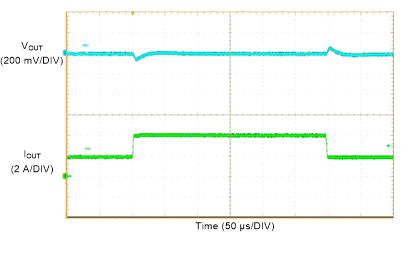

| VOUT = 5 V | FSW = 400 kHz | AUTO Mode |
| IOUT = 0 A to 6 A to 0 A | VIN = 13.5 V | TR = TF = 6 μs |
| VOUT = 5 V | FSW = 400 kHz | AUTO Mode |
| IOUT = 2 A to 5 A to 2 A | VIN = 13.5 V | TR = TF = 3 μs |
| VOUT = 3.3 V | FSW = 400 kHz | AUTO Mode |
| IOUT = 0 A to 6 A to 0 A | VIN = 13.5 V | TR = TF = 6 μs |
| VOUT = 5 V | FSW = 2100 kHz | AUTO Mode |
| IOUT = 0 A to 6 A to 0 A | VIN = 13.5 V | TR = TF = 6 μs |

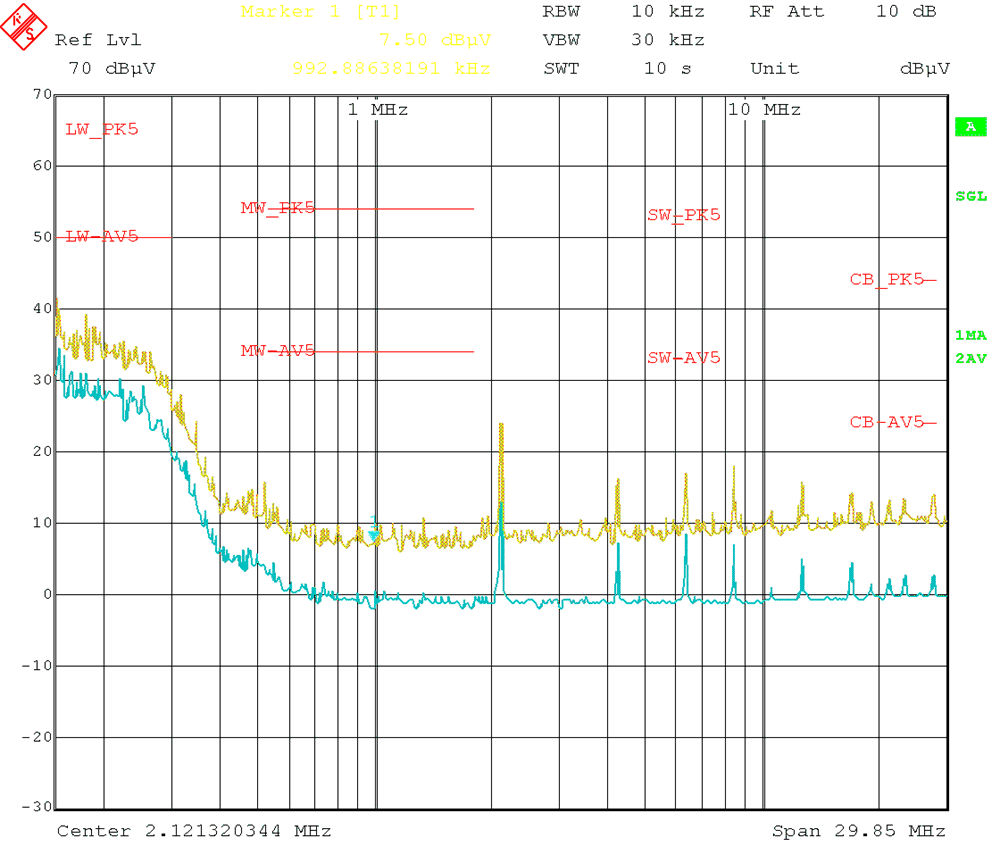

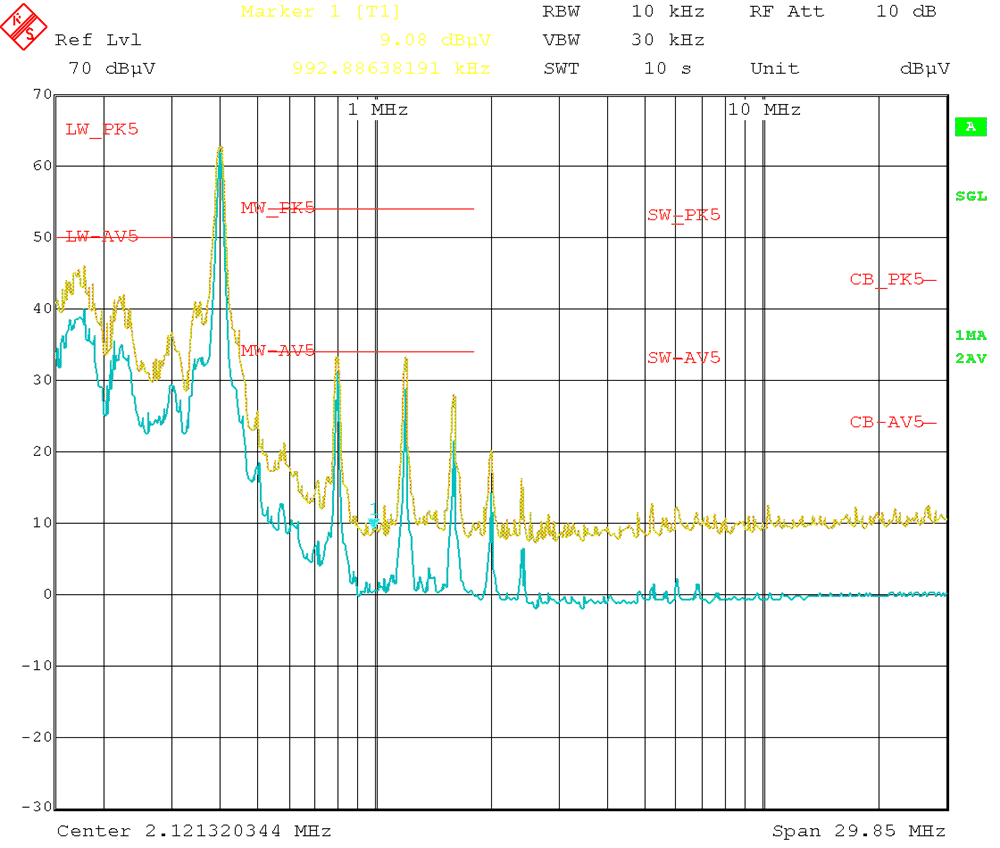

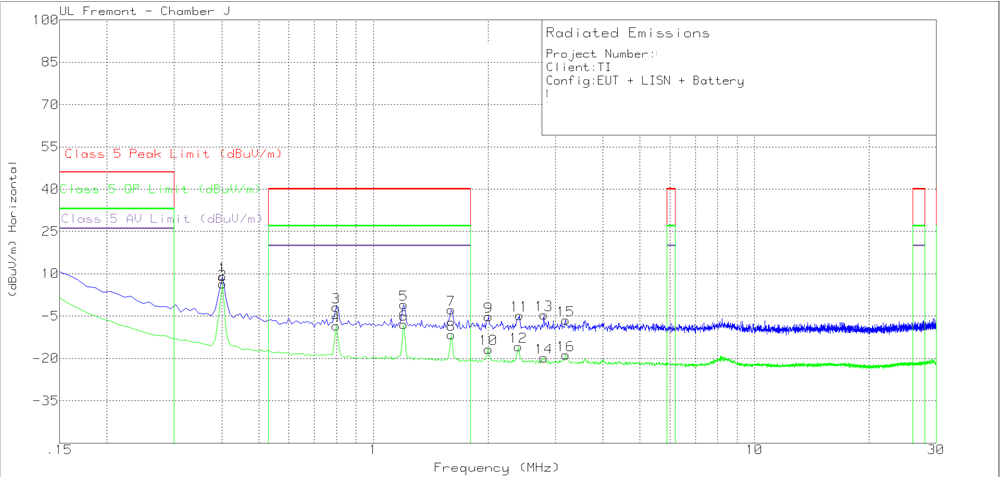

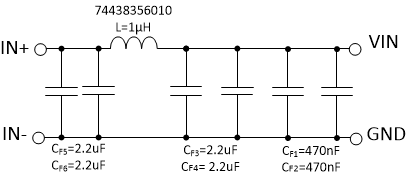

| FSW = 400 kHz | VOUT = 5 V | IOUT = 5 A |
| Frequency Tested: 150 kHz to 30 MHz | ||
| VOUT = 5 V | FSW = 400 kHz | IOUT = 5 A |
| Frequency Tested: 150 kHz to 30 MHz | ||
| VOUT = 5 V | FSW = 400 kHz | IOUT = 5 A |
| Frequency Tested: 30 MHz to 300 MHz | ||
| VOUT = 5 V | FSW = 400 kHz | IOUT = 5 A |
| Frequency Tested: 300 MHz to 1 GHz | ||
| FSW = 2100 kHz | VOUT = 5 V | IOUT = 5 A |
| Frequency Tested: 150 kHz to 30 MHz | ||
| FSW = 2100 kHz |
Table 10-5 BOM for Typical Application
Curves
| VOUT | FREQUENCY | RFBB | RT | COUT | CIN + CHF | L | CFF |
|---|---|---|---|---|---|---|---|
| 3.3 V | 400 kHz | 43.2 k? | 33.2 k? | 6 x 22 μF | 2 x 4.7 μF + 2 x 100 nF | 4.7 μH (XHMI6060) | 22 pF |
| 3.3 V | 2100 kHz | 43.2 k? | 6.04 k? | 3 x 22 μF | 2 x 4.7 μF + 2 x 100 nF | 1 μH (XEL5030) | 22 pF |
| 5 V | 400 kHz | 24.9 k? | 33.2 k? | 4 x 22 μF | 2 x 4.7 μF + 2 x 100 nF | 4.7 μH (XHMI6060) | 22 pF |
| 5 V | 2100 kHz | 24.9 k? | 6.04 k? | 3 x 22 μF | 2 x 4.7 μF + 2 x 100 nF | 1 μH (XEL5030) | 22 pF |
