8.8 Typical Characteristics
Unless otherwise specified, VIN = 13.5 V and fSW = 400 kHz.

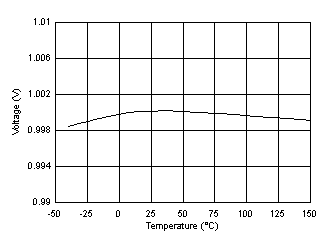

| VFB = 1 V |
Figure 8-5 Switching Frequency Set by RT Resistor

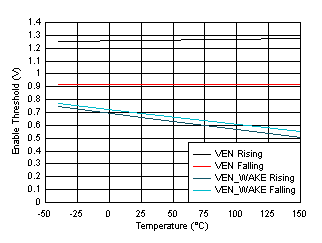

Figure 8-7 Enable Thresholds
| VEN = 0 V |

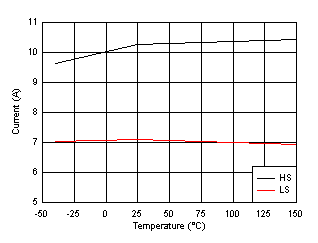

Figure 8-4 LM61460-Q1 High-side and Low-side Current Limits

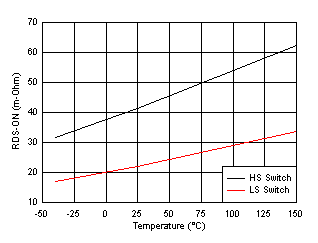

Figure 8-6 High-side and Low-side Switches RDS_ON

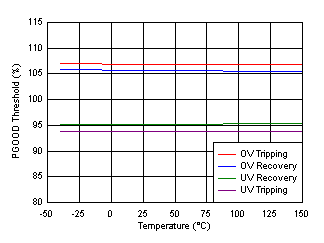

Figure 8-8 PGOOD Thresholds
