6.6 Typical Characteristics
At TA = 25°C, VOUT = 12 V, LO = 120 μH, RRON = 105 kΩ, unless otherwise specified.

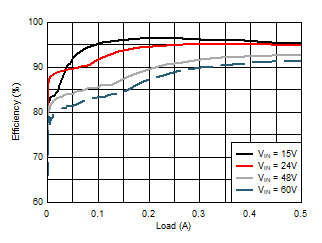

Figure 6-1 Conversion Efficiency (Log Scale)

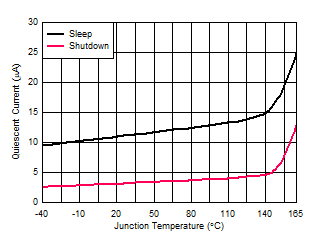

Figure 6-3 VIN Shutdown and Sleep Supply Current versus
Temperature

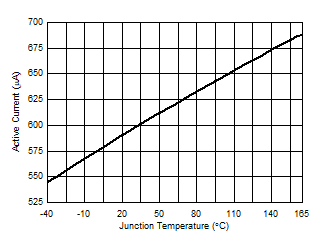

Figure 6-5 VIN Active Current versus Temperature

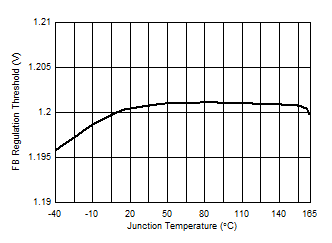

Figure 6-7 Feedback Comparator Threshold versus Temperature

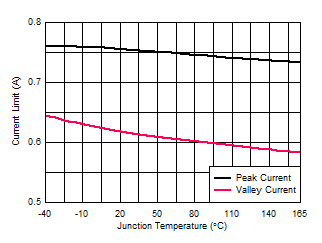

Figure 6-9 Peak
and Valley Current Limit versus Temperature
Figure 6-2 Conversion Efficiency (Linear Scale)

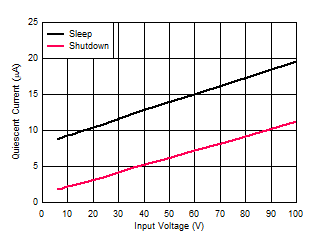

Figure 6-4 VIN Shutdown and Sleep Supply Current versus Input
Voltage

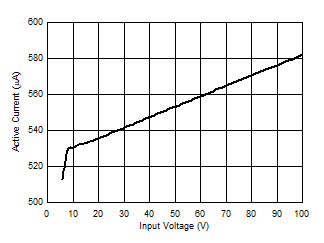

Figure 6-6 VIN Active Current versus Input Voltage

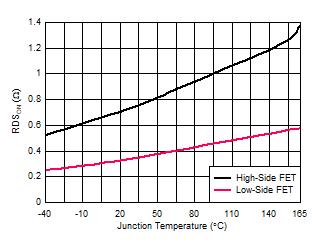

Figure 6-8 MOSFETs On-State Resistance versus Temperature

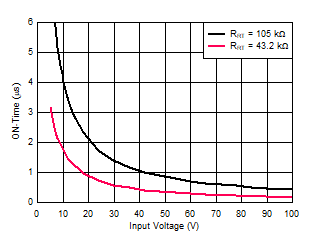

Figure 6-10 COT
On-Time versus VIN
