8.2.3 Application Curves

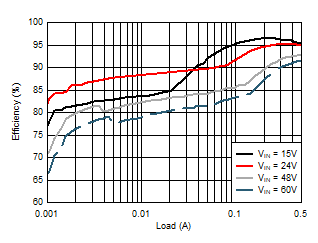

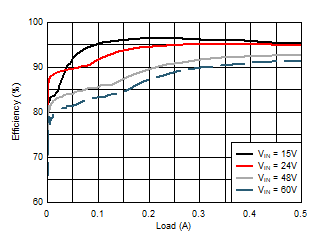

Figure 8-2 Conversion Efficiency (Log Scale)

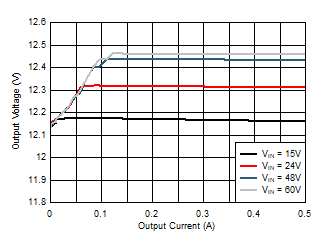

Figure 8-4 Load
and Line Regulation Performance

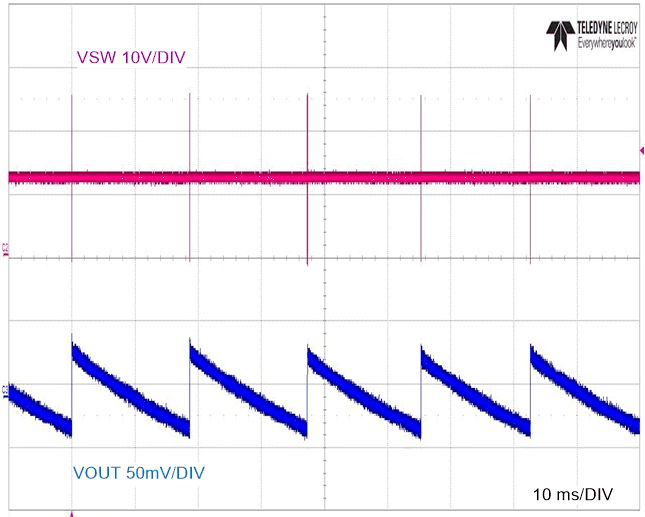

| VIN = 24 V | IOUT = 0 A |
| VIN = 24 V | IOUT = 0 A |
| VIN = 24 V | IOUT = 0 A |
| VIN = 24 V | Load = Short to 0 A |
| VIN = 24 V | IOUT = 0 A |

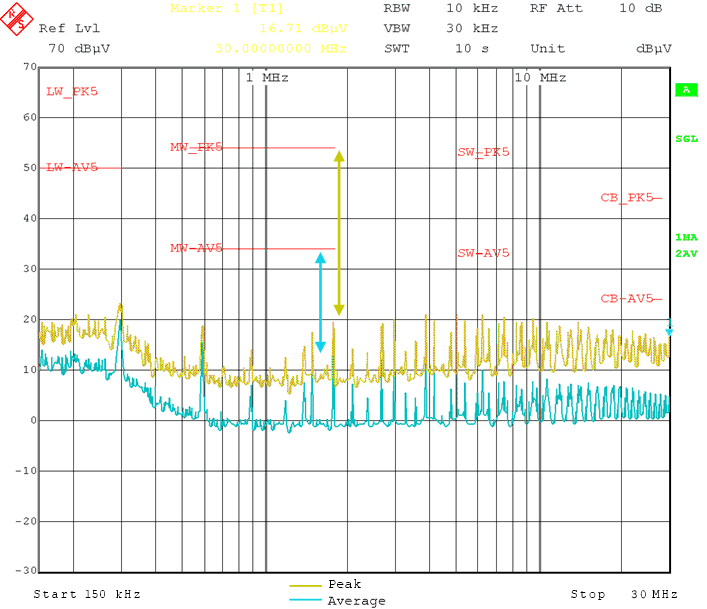

| VIN = 48 V | Load = 0.5 A |
Figure 8-3 Conversion Efficiency (Linear Scale)

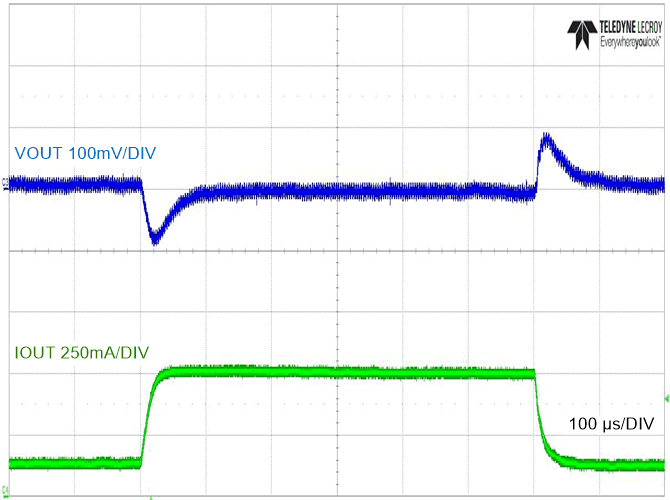

| VIN = 24 V | IOUT = 0.125 A to 0.5 A at 0.1 A/μs |

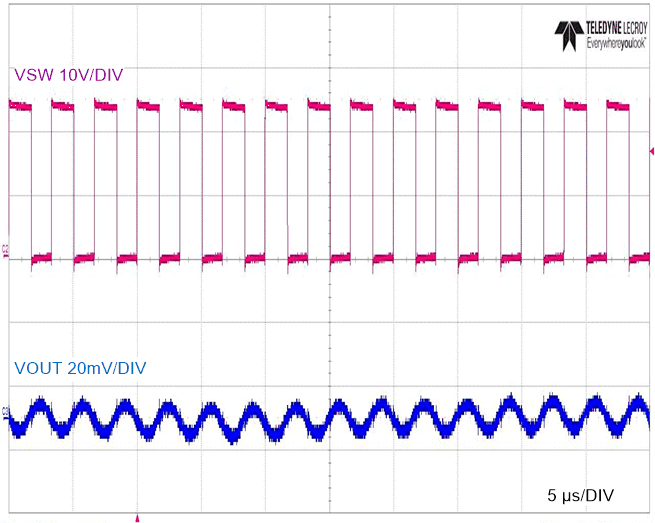

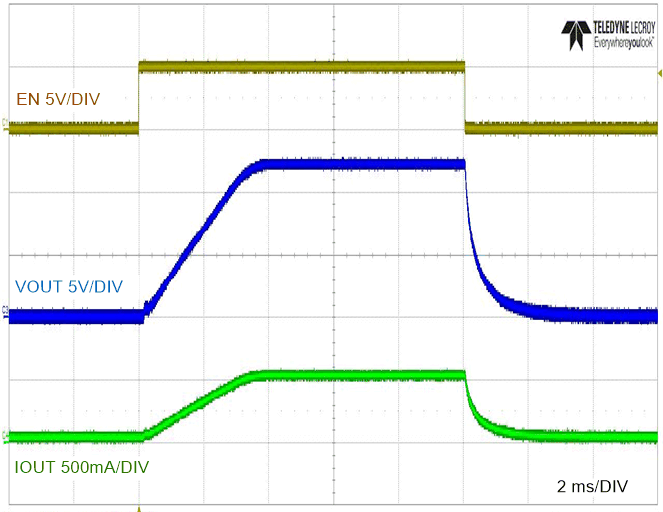

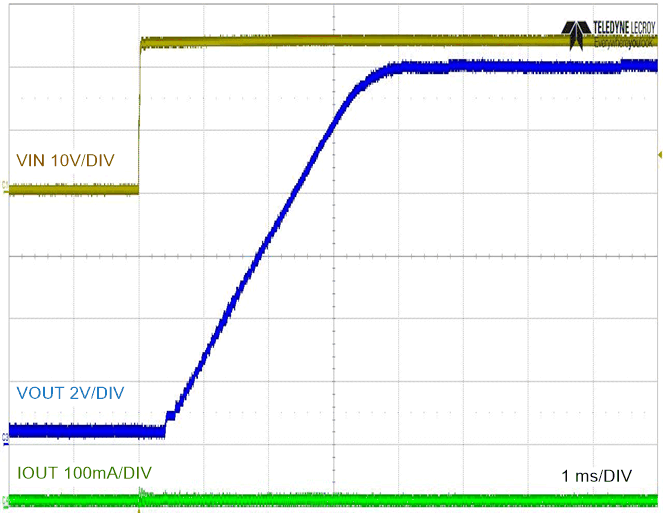

| VIN = 24 V | IOUT = 0.5 A (Resistive) |

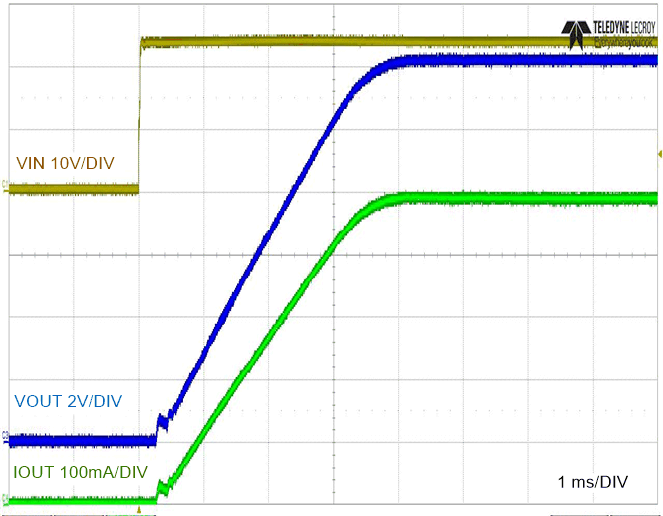

| VIN = 24 V | IOUT = 0.5 A (Resistive) |

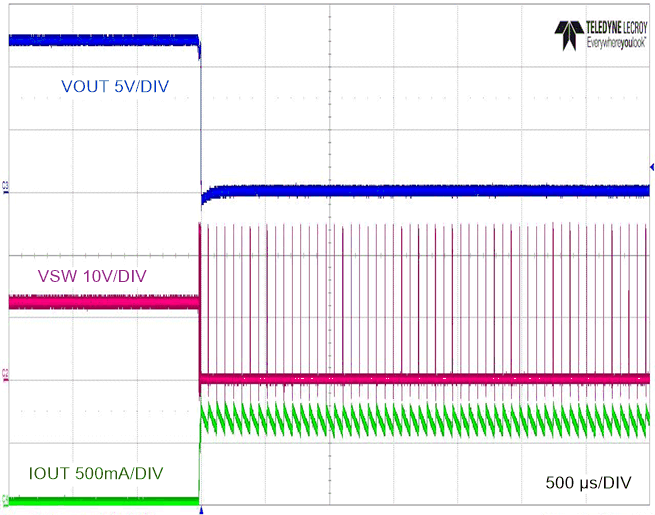

| VIN = 24 V | Load = 0 A to Short |

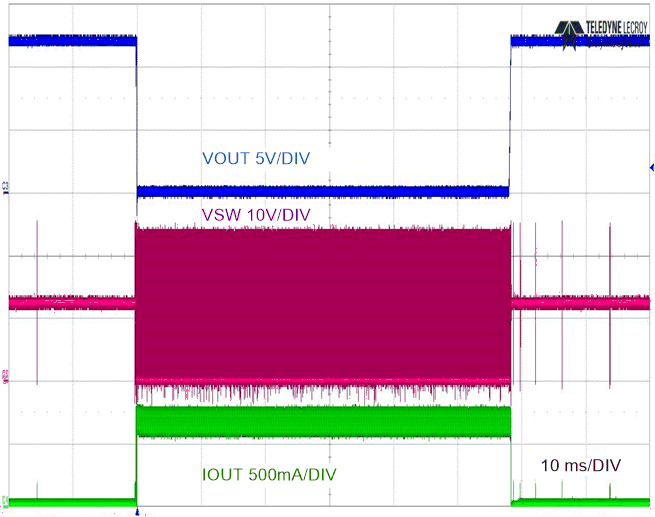

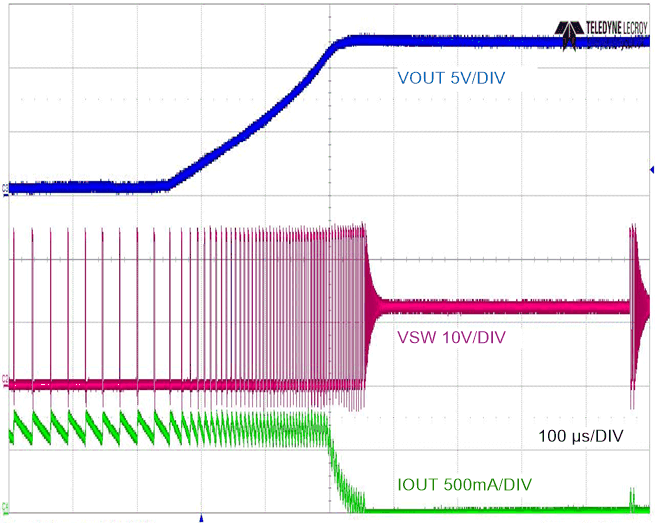

| VIN = 24 V | Load = 0 A to Short to 0 A |
| VIN = 24 V | IOUT = 0.5 A |
| VIN = 48 V | Load = 0.5 A |
