The LM5163H-Q1 step-down switching converter employs a constant on-time (COT) control scheme. The COT control scheme sets a fixed on-time t_ON of the high-side FET using a timing resistor (R_ON). The t_ON is adjusted as Vin changes and is inversely proportional to the input voltage to maintain a fixed frequency when in continuous conduction mode (CCM). After t_ON expires, the high-side FET remains off until the feedback pin is equal or below the reference voltage of 1.2 V. To maintain stability, the feedback comparator requires a minimal ripple voltage that is in phase with the inductor current during the off-time. Furthermore, this change in feedback voltage during the off-time must be large enough to dominate any noise present at the feedback node. The minimum recommended ripple voltage is 20 mV. See Table 7-1 for different types of ripple injection schemes that ensure stability over the full input voltage range.

During a rapid start-up or a positive load step, the regulator operates with minimum off-times until regulation is achieved. This feature enables extremely fast load transient response with minimum output voltage undershoot. When regulating the output in steady-state operation, the off-time automatically adjusts itself to produce the SW-pin duty cycle required for output voltage regulation to maintain a fixed switching frequency. In CCM, the switching frequency F_SW is programmed by the R_RON resistor. Use Equation 1 to calculate the switching frequency.

Table 7-1 Ripple Generation Methods

TYPE 1	TYPE 2	TYPE 3
Lowest Cost	Reduced Ripple	Minimum Ripple
Equation 2. $R_{ESR}\ge \frac{20mV\times V_{OUT}}{V_{FB1}\times {?I}_{L\left(nom\right)}}$ Equation 3. $R_{ESR}\ge \frac{V_{OUT}}{2\times V_{IN}\times F_{SW}\times C_{OUT}}$	Equation 4. $R_{ESR}\ge \frac{20mV}{{?I}_{L\left(nom\right)}}$ Equation 5. $R_{ESR}\ge \frac{V_{OUT}}{2\times V_{IN}\times F_{SW}\times C_{OUT}}$ Equation 6. $C_{FF}\ge \frac{1}{2\pi \times F_{SW}\times \left(R_{FB1}\left|\right|R_{FB2}\right)}$	Equation 7. $C_A\ge \frac{10}{F_{SW}\times \left(R_{FB1}\left|\right|R_{FB2}\right)}$ Equation 8. $R_A\times C_A\le \frac{\left(V_{IN-nom}-V_{OUT}\right)\times t_{ON(@V_{IN-nom})}}{20mV}$ Equation 9. $C_B\ge \frac{t_{TR-settling}}{3\times R_{FB1}}$

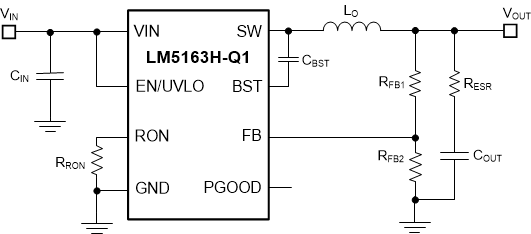

Table 7-1 presents three different methods for generating appropriate voltage ripple at the feedback node. The type-1 ripple generation method uses a single resistor, R_ESR, in series with the output capacitor. The generated voltage ripple has two components: capacitive ripple caused by the inductor ripple current charging and discharging the output capacitor and resistive ripple caused by the inductor ripple current flowing into the output capacitor and through series resistance R_ESR. The capacitive ripple component is out of phase with the inductor current and does not decrease monotonically during the off-time. The resistive ripple component is in phase with the inductor current and decreases monotonically during the off-time. The resistive ripple must exceed the capacitive ripple at V_OUT for stable operation. If this condition is not satisfied, unstable switching behavior is observed in COT converters, with multiple on-time bursts in close succession followed by a long off time. Equation 2 and Equation 3 define the value of the series resistance R_ESR to ensure sufficient in-phase ripple at the feedback node.

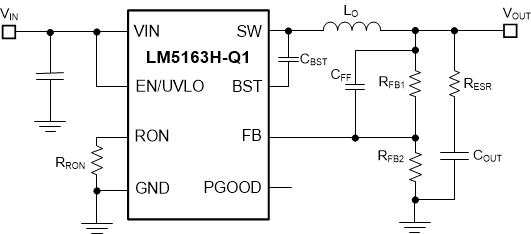

Type-2 ripple generation uses a C_FF capacitor in addition to the series resistor. As the output voltage ripple is directly AC-coupled by C_FF to the feedback node, the R_ESR and ultimately the output voltage ripple are reduced by a factor of V_OUT / V_FB1.

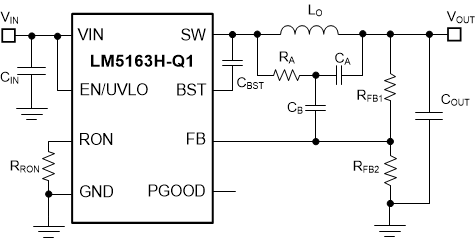

Type-3 ripple generation uses an RC network consisting of R_A and C_A, and the switch node voltage to generate a triangular ramp that is in-phase with the inductor current. This triangular wave is the AC-coupled into the feedback node with capacitor C_B. Because this circuit does not use output voltage ripple, it is suited for applications where low output voltage ripple is critical. The AN-1481 Controlling Output Ripple and Achieving ESR Independence in Constant On-time (COT) Regulator Designs Application Note provides additional details on this topic.

Diode emulation mode (DEM) prevents negative inductor current, and pulse skipping maintains the highest efficiency at light load currents by decreasing the effective switching frequency. DEM operation occurs when the synchronous power MOSFET switches off as inductor valley current reaches zero. Here, the load current is less than half of the peak-to-peak inductor current ripple in CCM. Turning off the low-side MOSFET at zero current reduces switching loss, and preventing negative current conduction reduces conduction loss. Power conversion efficiency is higher in a DEM converter than an equivalent forced-PWM CCM converter. With DEM operation, the duration that both power MOSFETs remain off progressively increases as load current decreases. When this idle duration exceeds 15 μs, the converter transitions into an ultra-low I_Q mode, consuming only 10-μA quiescent current from the input.
