10.2.2.1 Application Ideas
For applications requiring the lowest cost with minimum conduction loss, inductor DC resistance (DCR) can be used to sense the inductor current rather than using a sense resistor. RDCRC and CDCRC must meet Equation 14 to match a time constant.
Figure 10-2 DCR Current Sensing Equation 14.

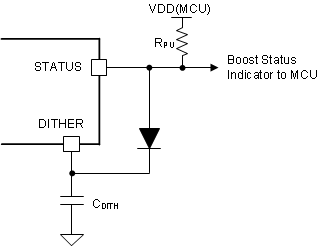

Add a diode from STATUS to DITHER if the clock dithering is required in active mode and the bypass operation is required in deep sleep mode.
Figure 10-3 Enable Both Clock Dithering and Bypass
Operation
