9.3.5 Fast Restart Using VCC HOLD (VH Pin)
The device is prepared for a fast start or restart when VH is greater than VSYNC. The device configuration is completed and the VCC regulator is active. The device stops switching, but keeps the VCC regulator active when EN is less than VEN and VH is greater than VSYNC (see Figure 9-5).

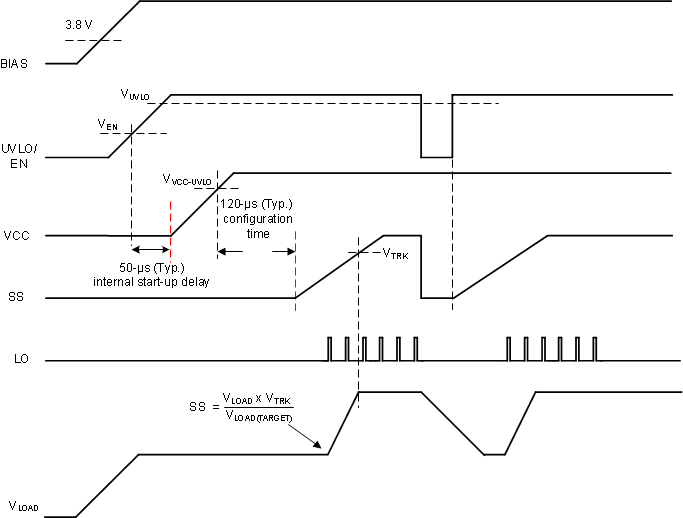

Figure 9-4 Boost Start-Up Waveforms Case
1: Start-Up by EN/UVLO, Restart when VH < VSYNC

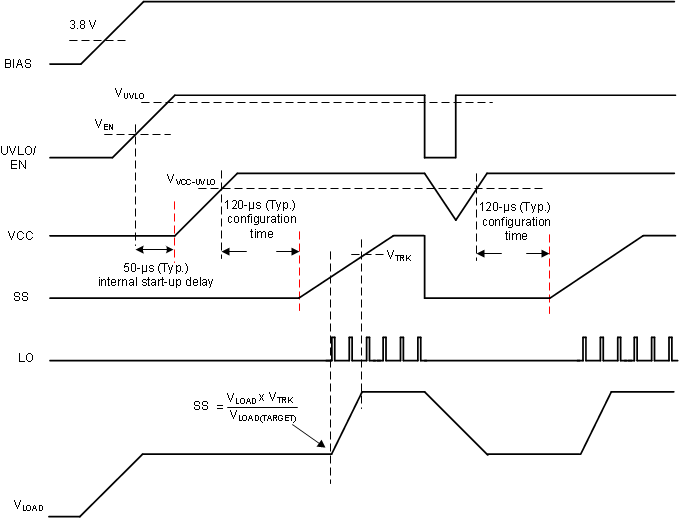

Figure 9-5 Boost Start-Up Waveforms Case
2: Start-Up by EN/UVLO, Restart when VH > VSYNC
