9.4.2 Light Load Switching Mode
The device provides three light load switching modes. Inductor current waveforms in each mode are different at the light or no load condition.

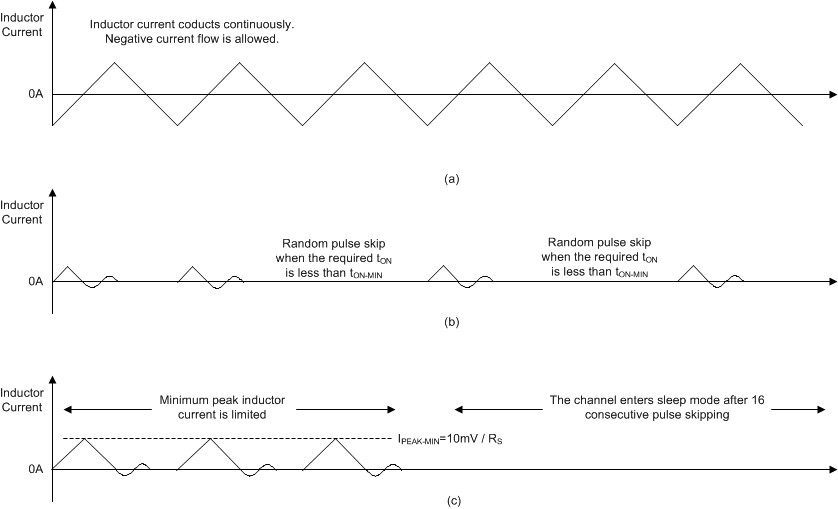

Figure 9-22 Inductor Current Waveform at Light Load (a)
FPWM (b) Diode Emulation (c) Skip Mode
