6.9 Typical Characteristics
Over recommended operating conditions unless specified otherwise. VDD = 1.8 V, TJ = 25°C.One channel enabled with a button sampling window of 1 ms unless specified otherwise.

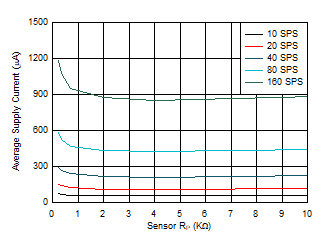

Figure 6-2 Supply Current vs Sensor RP for Normal Power Mode. Sensor
Frequency = 10 MHz. Sampling Window = 2mS. Four Channels Enabled.

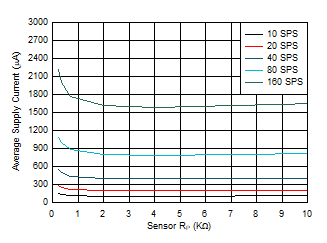

Figure 6-4 Supply Current vs Sensor RP for Low Power Mode. Sensor Frequency
= 10 MHz.

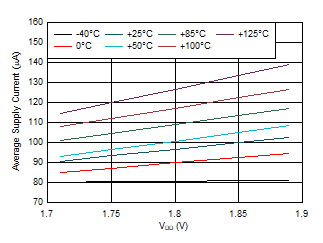

Figure 6-6 Supply Current vs. VDD. Sensor RP = 720 ?, Scan Rate
= 40 SPS, Sensor Frequency = 20 MHz.

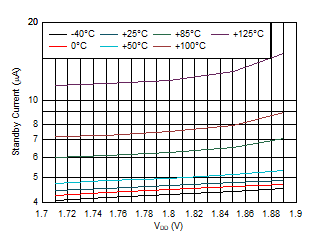

Figure 6-8 Standby Current vs VDD
Figure 6-3 Supply Current vs Sensor RP for Normal Power Mode. Sensor
Frequency = 10 MHz. Sampling Window = 2mS. Two Channels Enabled.

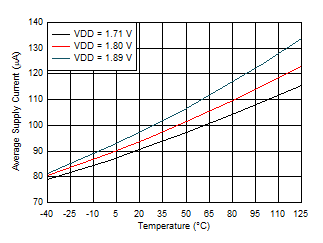

Figure 6-5 Supply Current vs Temperature. Sensor RP = 720 ?, Scan Rate = 40
SPS, Sensor Frequency = 20 MHz.

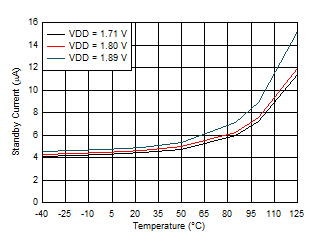

Figure 6-7 Standby Current vs. Temperature
Figure 6-9 Scan Rate Distribution at 30°C
