8.1.4 Defining Power-On Timing
The low power architecture of the LDC3114-Q1 makes it possible for the device to be active all the time. When not being used, the LDC3114-Q1 can operate in Low Power Mode with a single standby power button, which typically consumes less than 10 μA. If additional power-saving is desired, or in the rare event where a power-on reset becomes necessary (see Section 7.3.8), the output data will become ready after 50-ms start-up time, about 1-ms optional register loading time, and two sampling windows for all active channels. Figure 8-5 shows the power-on timing of the LDC3114-Q1.

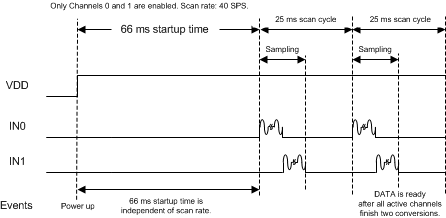

Figure 8-5 Power-On Timing
