ZHCSGK0H August 2017 – January 2024 ISO7760 , ISO7761 , ISO7762 , ISO7763
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Pin Configuration and Functions
-
5 Specifications
- 5.1 Absolute Maximum Ratings
- 5.2 ESD Ratings
- 5.3 Recommended Operating Conditions
- 5.4 Thermal Information
- 5.5 Power Ratings
- 5.6 Insulation Specifications
- 5.7 Safety-Related Certifications
- 5.8 Safety Limiting Values
- 5.9 Electrical Characteristics—5-V Supply
- 5.10 Supply Current Characteristics—5-V Supply
- 5.11 Electrical Characteristics—3.3-V Supply
- 5.12 Supply Current Characteristics—3.3-V Supply
- 5.13 Electrical Characteristics—2.5-V Supply?
- 5.14 Supply Current Characteristics—2.5-V Supply
- 5.15 Switching Characteristics—5-V Supply
- 5.16 Switching Characteristics—3.3-V Supply
- 5.17 Switching Characteristics—2.5-V Supply
- 5.18 Insulation Characteristics Curves
- 5.19 Typical Characteristics
- 6 Parameter Measurement Information
- 7 Detailed Description
- 8 Application and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11Device and Documentation Support
- 12Revision History
- 13Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
散熱焊盤機械數據 (封裝 | 引腳)
- DW|16
訂購信息
4 Pin Configuration and Functions

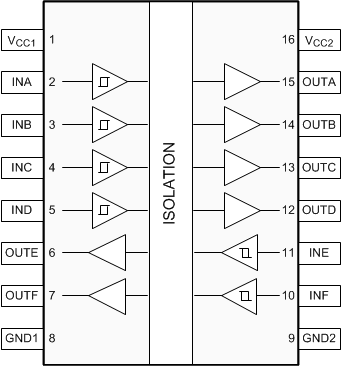

Figure 4-1 ISO7760 DW and DBQ Packages16-Pin SOIC and SSOP Top View

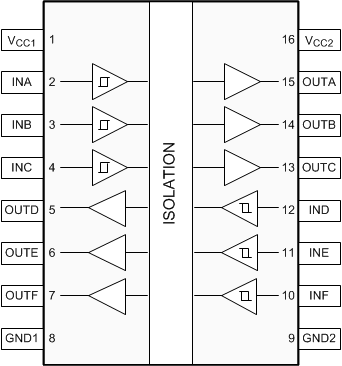

Figure 4-2 ISO7761 DW and DBQ Packages16-Pin SOIC and SSOPTop View

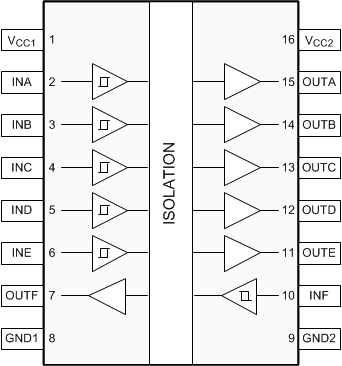

Figure 4-3 ISO7762 DW and DBQ Packages16-Pin SOIC and SSOP Top View

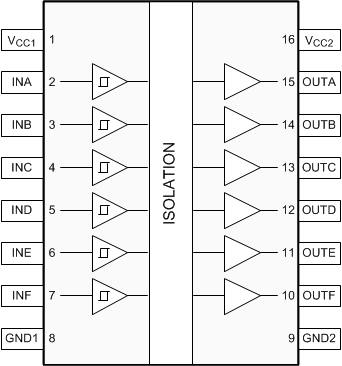

Figure 4-4 ISO7763 DW and DBQ Packages16-Pin SOIC and SSOP Top ViewTable 4-1 Pin Functions
| PIN | I/O | DESCRIPTION | ||||
|---|---|---|---|---|---|---|
| NAME | NO. | |||||
| ISO7760 | ISO7761 | ISO7762 | ISO7763 | |||
| GND1 | 8 | 8 | 8 | 8 | — | Ground connection for VCC1 |
| GND2 | 9 | 9 | 9 | 9 | — | Ground connection for VCC2 |
| INA | 2 | 2 | 2 | 2 | I | Input, channel A |
| INB | 3 | 3 | 3 | 3 | I | Input, channel B |
| INC | 4 | 4 | 4 | 4 | I | Input, channel C |
| IND | 5 | 5 | 5 | 12 | I | Input, channel D |
| INE | 6 | 6 | 11 | 11 | I | Input, channel E |
| INF | 7 | 10 | 10 | 10 | I | Input, channel F |
| OUTA | 15 | 15 | 15 | 15 | O | Output, channel A |
| OUTB | 14 | 14 | 14 | 14 | O | Output, channel B |
| OUTC | 13 | 13 | 13 | 13 | O | Output, channel C |
| OUTD | 12 | 12 | 12 | 5 | O | Output, channel D |
| OUTE | 11 | 11 | 6 | 6 | O | Output, channel E |
| OUTF | 10 | 7 | 7 | 7 | O | Output, channel F |
| VCC1 | 1 | 1 | 1 | 1 | — | Power supply, side 1 |
| VCC2 | 16 | 16 | 16 | 16 | — | Power supply, side 2 |
