6 Parameter Measurement Information

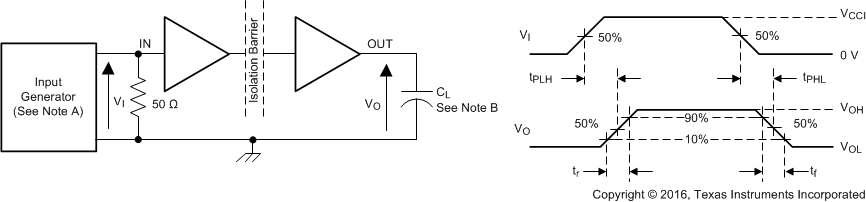

A. The input pulse is supplied by a
generator having the following characteristics: PRR ≤ 50 kHz, 50% duty cycle,
tr ≤ 3 ns, tf ≤ 3 ns, ZO = 50 Ω. At the
input, a 50-Ω resistor is required to terminate Input Generator signal. It is
not needed in actual application.
B. CL = 15 pF and
includes instrumentation and fixture capacitance within ±20%.
Figure 6-1 Switching
Characteristics Test Circuit and Voltage Waveforms

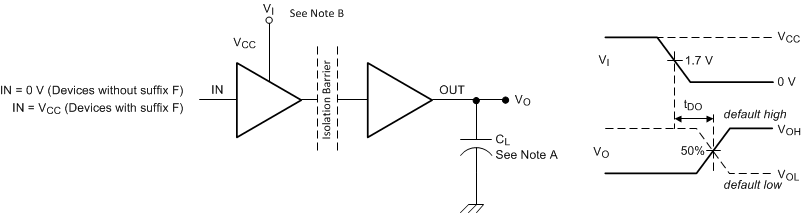

A. CL = 15 pF and
includes instrumentation and fixture capacitance within ±20%.
B. Power-supply ramp rate = 10
mV/ns
Figure 6-2 Default
Output Delay Time Test Circuit and Voltage Waveforms

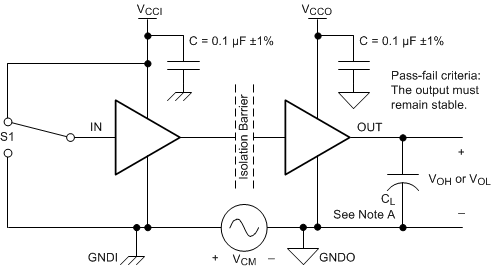

A. CL = 15 pF and
includes instrumentation and fixture capacitance within ±20%.
Figure 6-3 Common-Mode Transient Immunity Test Circuit
