SLVSF66A August 2019 – December 2019 DRV8874
PRODUCTION DATA.
"Steady-state" conditions assume that the motor driver operates with a constant RMS current over a long period of time.Figure 21, Figure 22, Figure 23, and Figure 24 show how RθJA and ΨJB (junction-to-board characterization parameter) change depending on copper area, copper thickness, and number of layers of the PCB for the HTSSOP package. More copper area, more layers, and thicker copper planes decrease RθJA and ΨJB, which indicate better thermal performance from the PCB layout.

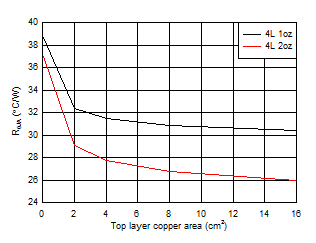

Figure 21. HTSSOP, 4-layer PCB junction-to-ambient thermal resistance vs copper area

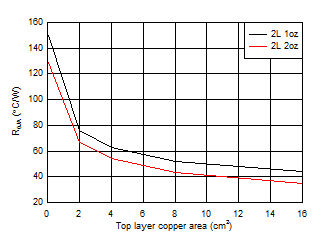

Figure 23. HTSSOP, 2-layer PCB junction-to-ambient thermal resistance vs copper area

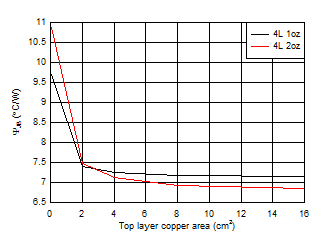

Figure 22. HTSSOP, 4-layer PCB junction-to-board characterization parameter vs copper area

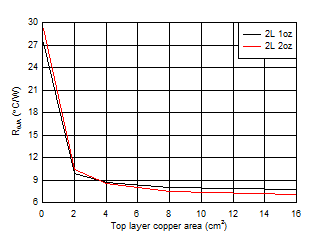

Figure 24. HTSSOP, 2-layer PCB junction-to-board characterization parameter vs copper area
