7.3.3.2.2 Cycle-By-Cycle Current Chopping

In cycle-by-cycle mode, the H-bridge enters a brake, low-side slow decay state (both low-side MOSFETs ON) after I_OUT exceeds I_TRIP until the next control input edge on the EN/IN1 or PH/IN2 pins. This allows for additional control of the current chopping scheme by the external controller. This is shown in Figure 13. Cycle-by-cycle mode will not support 100% duty cycle current regulation as a new control input edge is required to reset the outputs after the brake, low-side slow decay state has been entered.

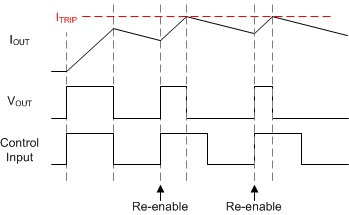

Figure 13. Cycle-By-Cycle Current Regulation

In cycle-by-cycle mode, the device will also indicate whenever the H-bridge enters internal current chopping by pulling the nFAULT pin low. This can be used to determine when the device outputs will differ from the control inputs or the load has reached the I_TRIP threshold. This is shown in Figure 14. nFAULT will be released whenever the next control input edge is received by the device and the outputs are reset.

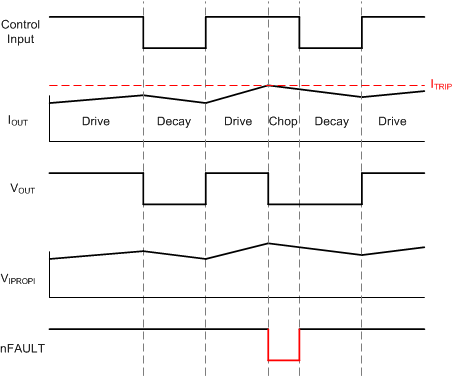

Figure 14. Cycle-By-Cycle Current Regulation Where nFAULT Acts as Current Chopping Indicator

No device functionality is affected when the nFAULT pin is pulled low for the current chopping indicator. The nFAULT pin is only used as an indicator and the device will continue normal operation. To distinguish a device fault (outlined in the Protection Circuits section) from the current chopping indicator, the nFAULT pin can be compared with the control inputs. The current chopping indicator can only assert when the control inputs are commanding a forward or reverse drive state (Figure 10). If the nFAULT pin behavior deviates from the operation shown in Figure 14 then one of the following situations has occurred:

• If a device fault has occurred, then the nFAULT pin pulls low to indicate a fault condition rather than current chopping. Depending on the device fault, nFAULT may remain low even when the control inputs are commanding the high-Z or slow-decay states.
• When the control inputs transition from drive to slow decay, the nFAULT pin will go high for t_BLKthen be pulled low again if I_OUT > I_TRIP. This may be caused by a PWM frequency or duty cycle on the control inputs with a off-time that is too short for the I_OUT current to decay below the I_TRIP threshold. Figure 15 shows an example of this condition. The condition I_OUT > I_TRIP can be viewed on an oscilloscope as V_IPROPI > V_REF.

	Chan. 1 = EN	Chan. 2 = nFAULT
	Chan. 3 = VREF	Chan. 4 = IPROPI

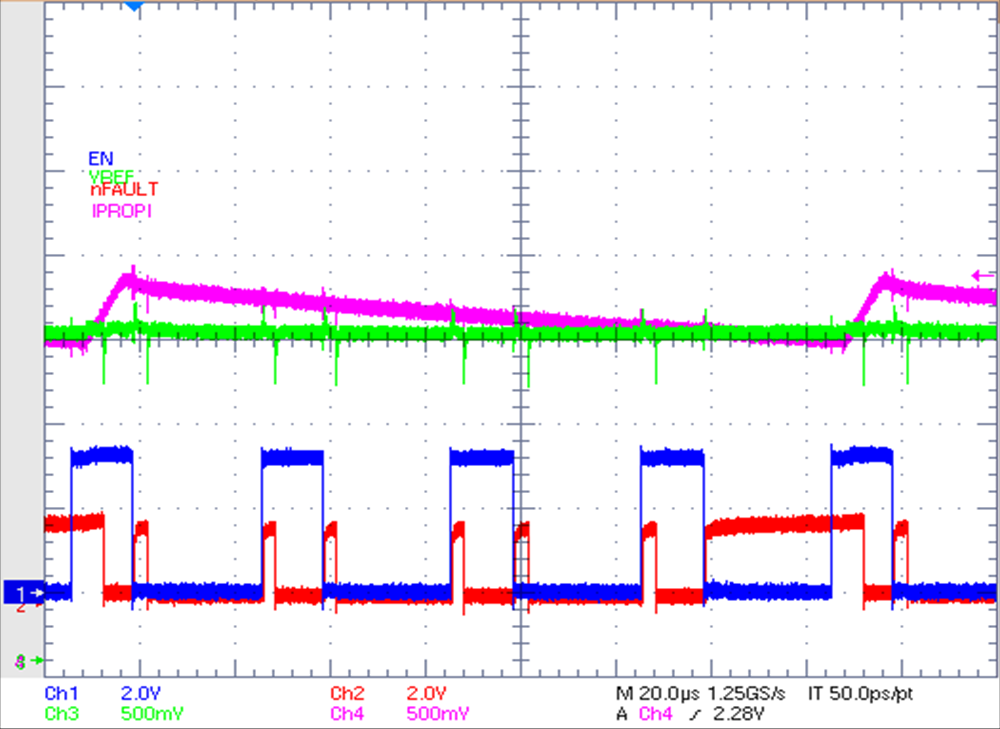

Figure 15. nFAULT Pin When V_IPROPI > V_VREF with PH/EN Mode and PWM Signal on EN Pin
