8.4.12.8 Speed-Command Buffer Readback
If acceleration current limit and AVS are enabled, the PWM duty cycle output (read back at spdCmdBuffer) may not always match the input command (read back at SpeedCmd) shown in Figure 8-38. See Section 8.4.9 and Section 8.4.7.
By reading the value of spdCmdBuffer, the user can observe buffered speed command (output PWM duty cycle) to the motor.
Equation 15 shows how the buffered speed is calculated.
Equation 15. DutyOUTPUT (%) = spdCmdBuffer × 100 / 255
where
- DutyOUTPUT = The maximum duty cycle of the output PWM, which represents the output amplitude in percentage.
- spdCmdBuffer = Register value

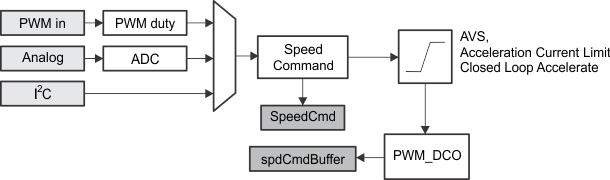

Figure 8-38 SpeedCmd and spdCmdBuffer Registers
