3 說明
DRV10982-Q1 器件是一款帶有集成式電源 MOSFET 的三相無傳感器電機驅動器，可提供高達 2A 的連續驅動電流。該器件專為成本敏感型、低噪音、需要少量外部組件的風扇和泵應用而設計。
DRV10982-Q1 器件可保持低至 4.5V 的寄存器設置，并以低至 6.2V 的電源電壓將電流傳輸給電機。如果電源電壓高于 28V，則器件停止驅動電機并保護 DRV10982-Q1 電路。該功能能夠處理高達 45V 的負載轉儲情況。
TI 提供了 DRV10983-Q1 調整指南，便于快速設置和調整器件以獲得出色性能。
器件選項：
- DRV10982Q：休眠型號
- DRV10982SQ：待機型號
器件信息(1)
| 器件型號 | 封裝 | 封裝尺寸（標稱值） |
|---|---|---|
| DRV10982-Q1 | HTSSOP (24) | 7.80mm × 6.40mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

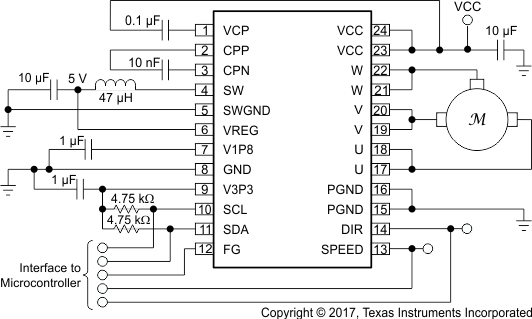

應用原理圖
