8.4.3 Motor Start Sequence

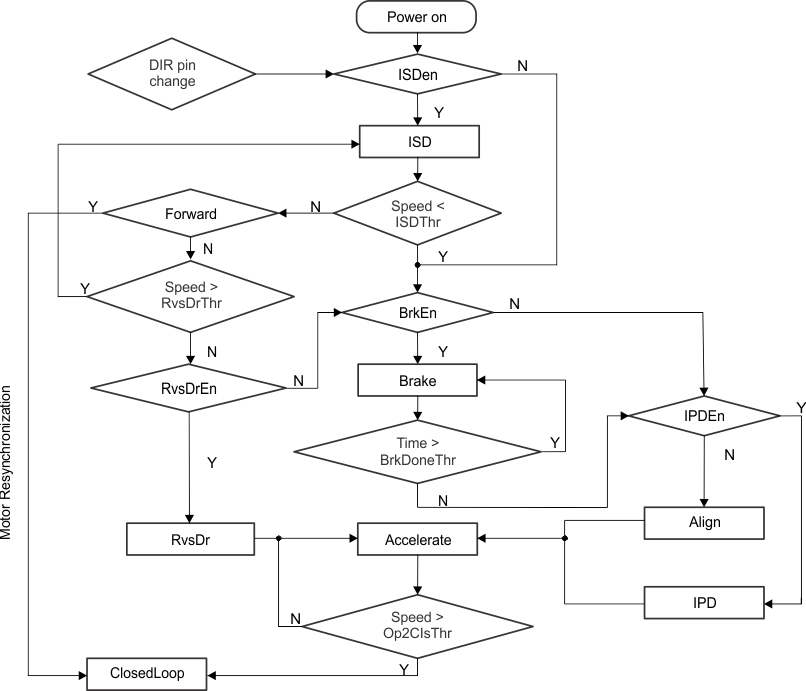

Figure 8-11 shows the motor-start sequence implemented in the DRV10982-Q1 device.
Figure 8-11 Motor Starting-Up Flow- Power-On StateThis is the initial power-on state of the motor start sequencer (MSS). The MSS starts in this state on initial power-up or whenever the DRV10982-Q1 device comes out of either standby or sleep mode.
- ISDen JudgmentAfter power-on, the DRV10982-Q1 MSS enters the ISDen judgment where it checks to see if the initial speed detect (ISD) function is enabled (ISDen = 1). If ISD is disabled, the MSS proceeds directly to the BrkEn Judgment. If ISD is enabled, the motor start sequence advances to the ISD state.
- ISD StateThe MSS determines the initial condition of the motor (see Section 8.4.3.1).
- Speed<ISDThr JudgmentIf the motor speed is lower than the threshold defined by ISDThr[1:0], then the motor is considered to be stationary and the MSS proceeds to the BrkEn judgment. If the speed is greater than the threshold defined by ISDThr[1:0], the start sequence proceeds to the Forward judgment.
- Forward JudgmentThe MSS determines whether the motor is spinning in the forward or the reverse direction. If the motor is spinning in the forward direction, the DRV10982-Q1 device executes the resynchronization (see Section 8.4.3.2) process by transitioning directly into the ClosedLoop state. If the motor is spinning in the reverse direction, the MSS proceeds to the Speed>RvsDrThr.
- Speed>RvsDrThr JudgmentThe motor start sequencer checks to see if the reverse speed is greater than the threshold defined by RvsDrThr[1:0]. If it is, then the MSS returns to the ISD state to allow the motor to decelerate. This prevents the DRV10982-Q1 device from attempting to reverse drive or brake a motor that is spinning too quickly. If the reverse speed of the motor is less than the threshold defined by RvsDrThr[1:0], then the MSS advances to the RvsDrEn judgment.
- RvsDrEn JudgmentThe MSS checks to see if the reverse drive function is enabled (RvsDrEn = 1). If it is, the MSS transitions into the RvsDr state. If the reverse drive function is not enabled, the MSS advances to the BrkEn judgment.
- RvsDr StateThe DRV10982-Q1 device drives the motor in the forward direction to force it to rapidly decelerate (see Section 8.4.3.3). When it reaches zero velocity, the MSS transitions to the Accelerate state.
- BrkEn JudgmentThe MSS checks to determine whether the brake function is enabled (BrkDoneThr[2:0] ≠ 000). If the brake function is enabled, the MSS advances to the brake state.
- Brake StateThe device performs the brake function (see Section 8.4.3.4).
- Time>BrkDoneThr JudgmentThe MSS applies brake for a time configured by BRKDoneThr[2:0]. After brake state, the MSS advances to the IPDEn judgment.
- IPDEn JudgmentThe MSS checks to see if IPD has been enabled (IPDCurrThr[3:0] ≠ 0000). If the IPD is enabled, the MSS transitions to the IPD state. Otherwise, it transitions to the align state.
- Align StateThe DRV10982-Q1 device performs the align function (see Section 8.4.3.5.1). After the align completes, the MSS transitions to the Accelerate state.
- IPD StateThe DRV10982-Q1 device performs the IPD function. The IPD function is described in Section 8.4.3.5.2. After the IPD completes, the MSS transitions to the accelerate state.
- Accelerate StateThe DRV10982-Q1 device accelerates the motor according to the settings of StAccel and StAccel2. After applying the accelerate settings, the MSS advances to the Speed>Op2ClsThr judgment.
- Speed>Op2ClsThr JudgmentThe motor accelerates until the drive rate exceeds the threshold configured by the Op2ClsThr[4:0] settings. When this threshold is reached, the DRV10982-Q1 device enters into the ClosedLoop state.
- ClosedLoop StateIn this state, the DRV10982-Q1 device drives the motor based on feedback from the commutation control algorithm.
- DIR Pin Change JudgmentIf the DIR pin is changed during any of above states, DRV10982-Q1 device stops driving the motor and restarts from the beginning.
