6.19 Typical Characteristics
VA = VDR = VTC = VE = 1.9 V, fCLK = 1600 MHz in non-LSPSM and 800 MHz in LSPSM, fIN = 248 MHz, TA= 25°C, 1:2 demux non-DES mode, and calibration performed after temperature, supply voltage or sample rate change, unless otherwise stated.
Figure 6-11 INL vs Code

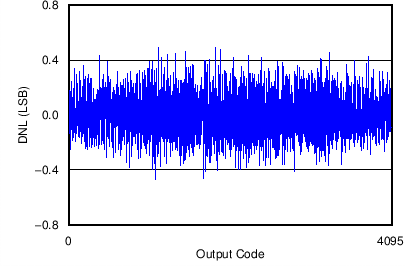

Figure 6-13 DNL vs Code
Figure 6-15 ENOB vs Sample Rate
Figure 6-17 ENOB vs Temperature
Figure 6-19 SNR vs Sample Rate
Figure 6-21 SNR vs Temperature

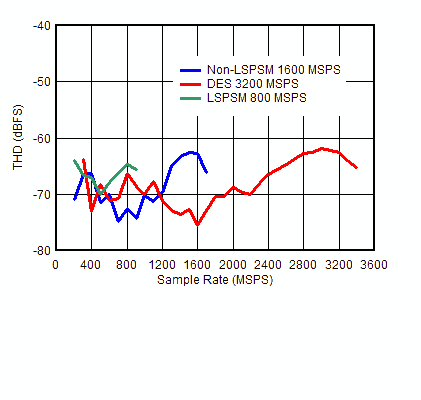

Figure 6-23 THD vs Sample Rate
Figure 6-25 THD vs Temperature
Figure 6-27 SFDR vs Sample Rate
Figure 6-29 SFDR vs Temperature
| fCLK = 1.6 GHz | fIN = 248 MHz |
| fCLK = 1.6 GHz | fIN = 248 MHz |
Figure 6-35 3rd Order Intermodulation Distortion vs Input Frequency
Figure 6-37 Cross Talk vs Input Frequency

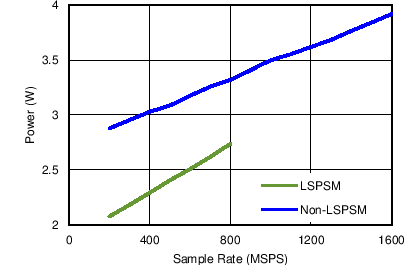

Figure 6-39 Power Consumption vs Sample Rate
Figure 6-12 Minimum and Maximum INL vs Temperature
Figure 6-14 Minimum and Maximum DNL vs Temperature
Figure 6-16 ENOB vs Supply Voltage
Figure 6-18 ENOB vs Input Frequency
Figure 6-20 SNR vs Supply Voltage
Figure 6-22 SNR vs Input Frequency
Figure 6-24 THD vs Supply Voltage
Figure 6-26 THD vs Input Frequency
Figure 6-28 SFDR vs Supply Voltage
Figure 6-30 SFDR vs Input Frequency
| fCLK = 1.6 GHz | fIN = 248 MHz |
| fCLK = 1.6 GHz | fIN = 248 MHz |
Figure 6-36 3rd Order Intermodulation Distortion vs Input Frequency (DES Mode 3200 MSPS)
Figure 6-38 Insertion Loss vs Input Frequency
