9.3 Build Options File

The build options file is a text file in the following format:

NOTE

The options corresponding to the COMPort are default settings in the corresponding HALCoGen project (default SCI settings) of the device variant. If these settings are changed in the build options file, the test cases will not execute successfully unless the HALCoGen project configuration is also changed and the code is re-generated.

Some sample build options files are provided in the folder <install directory>\Test\Misc\BuildOptions.
Users can use it as is in their project.

• Compiler Options:
  • ARM compiler options can be obtained from the appropriate device project file in the Code Composer Studio as shown in Figure 15 (Step 1).
• Linker Options
  • ARM linker options can be obtained from Code Composer Studio as shown in Figure 16 (Step 2).
• Run Time Library
  • Runtime support library is used for the CCS project as shown in Figure 17 (Step 3).
• CG Tool Root Path
  • The root path is where the CCS compiler is installed.
• COMPortNumber, COMPortBaudRate, COMPortParity, COMPortDatabits, COMPortStopBits
  • These options correspond to the SCI settings of the connected device.

  NOTE

  These settings must be in sync with the HALCoGen project corresponding to the device as in the demo_app\HALCoGen.

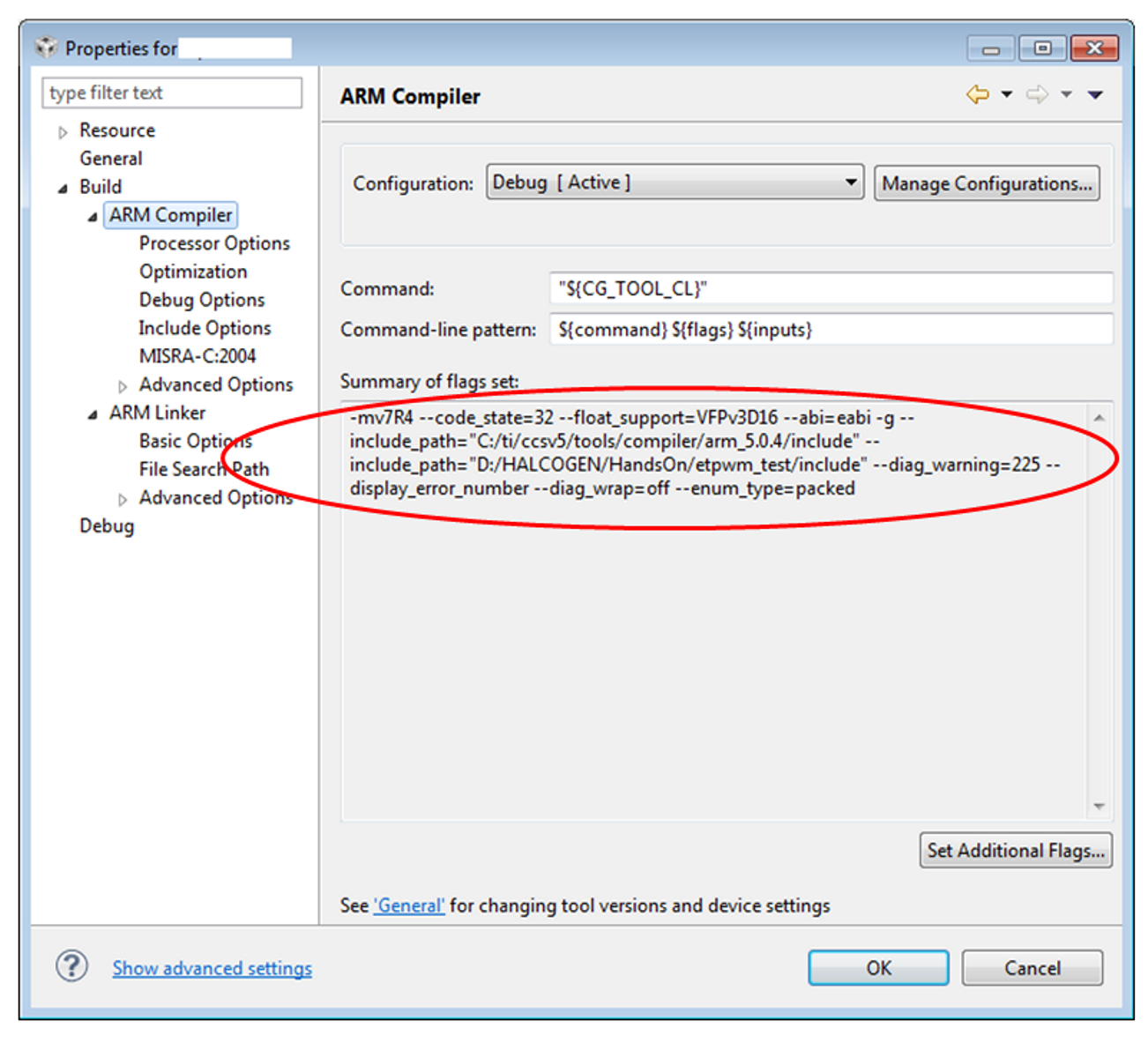

Step 1: Compiler Option Selection

Step 2: Linker Option Selection

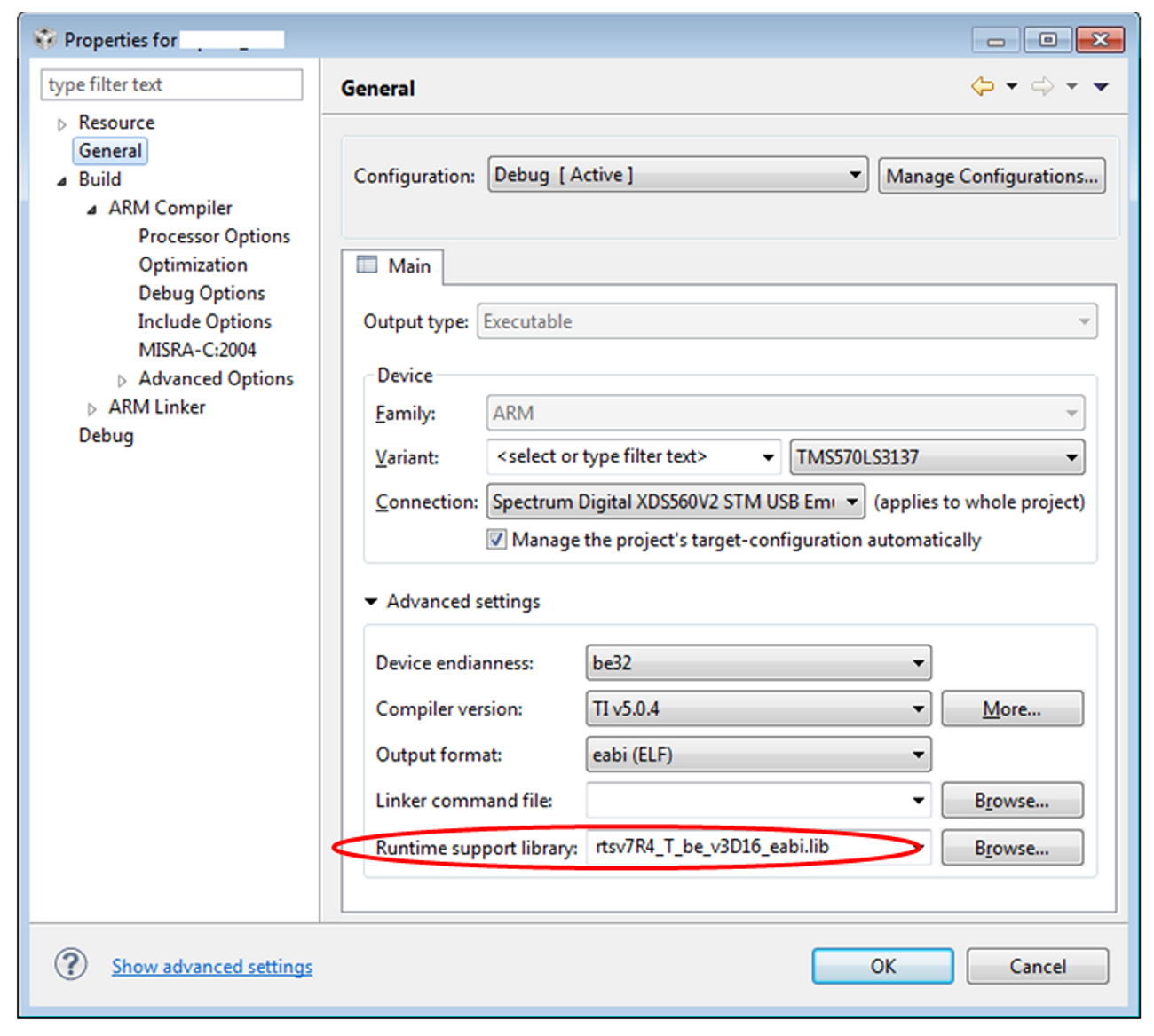

Step 3: Runtime Library Selection
