SLVUB71A August 2017 – June 2021 TPS565208
4.6 Load Transient Response
The TPS565208EVM-858 response to load transient is shown in Figure 4-4. The current steps and slew rates are indicated in the figures. Total peak-to-peak voltage variation is as shown.

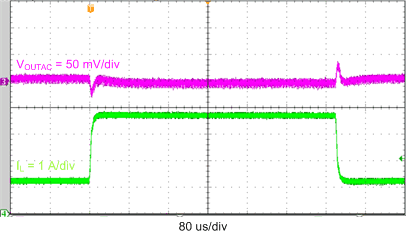

Figure 4-4 TPS565208 Transient Response, 1.25 A to 3.75 A
