SLVUB71A August 2017 – June 2021 TPS565208
4.9 Start-Up
The TPS565208EVM-858 start-up waveform relative to VIN is shown in Figure 4-9. Load = 1 Ω resistive.
The TPS565208EVM-858 start-up waveform relative to enable (EN) is shown in Figure 4-10. Load = 1 Ω resistive.

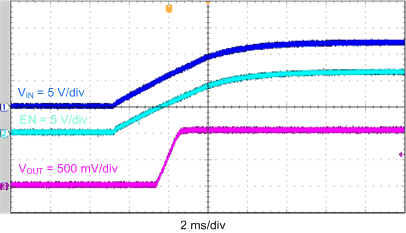

Figure 4-9 Start-Up Relative to VIN

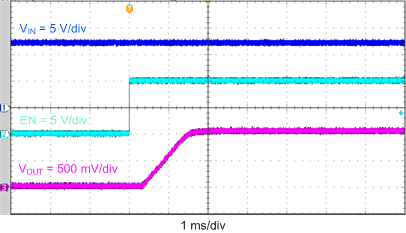

Figure 4-10 TPS565208 Start-Up Relative to EN
