SLVUB71A August 2017 – June 2021 TPS565208
4.7 Output Voltage Ripple
The TPS565208EVM-858 output voltage ripple is shown in Figure 4-5, Figure 4-6, and Figure 4-7. The output currents are as indicated.

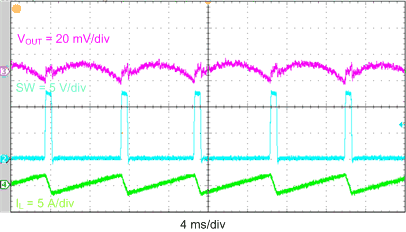

Figure 4-5 TPS565208 Output Voltage Ripple, VOUT = 5 A

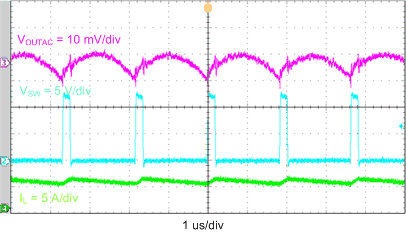

Figure 4-6 TPS565208 Output Voltage Ripple, IOUT = 2.5 A

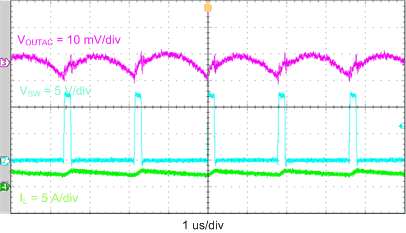

Figure 4-7 TPS565208 Output Voltage Ripple, No Load
