SLVUAY4A October 2014 – July 2021 TPS563210A
4.7 Output Voltage Ripple
The TPS563210AEVM-663 output voltage ripple is shown in Figure 4-7, Figure 4-8, and Figure 4-9. The output currents are as indicated.

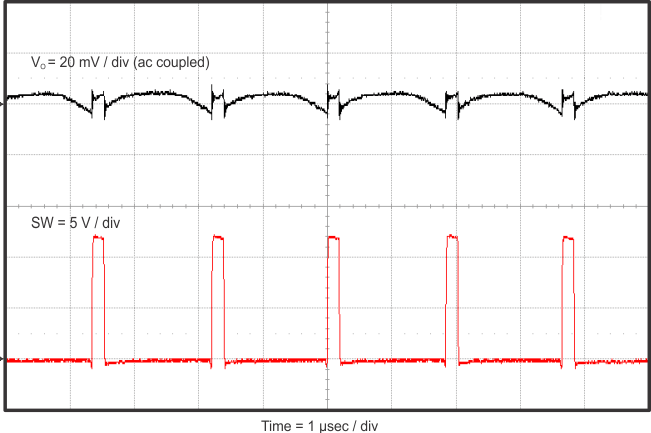

Figure 4-7 TPS563210AEVM-663 Output Voltage Ripple, IOUT = 3 A

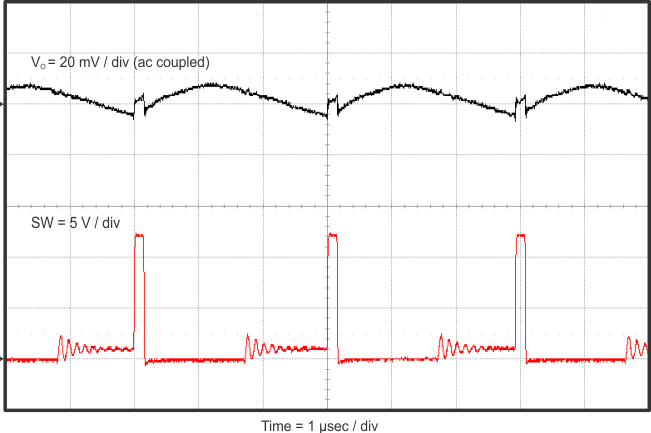

Figure 4-8 TPS563210AEVM-663 Output Voltage Ripple, IOUT = 300 mA
Figure 4-9 TPS563210AEVM-663 Output Voltage Ripple, IOUT = 0 mA
