4.10 Shut-Down

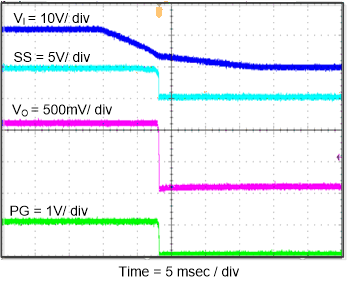

The TPS563210AEVM-663 shut-down waveform relative to VIN is shown in Figure 4-13. Load = 1 Ω resistive.

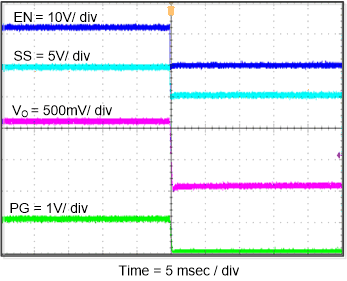

Figure 4-13 TPS563210AEVM-663 Shut-Down Relative to VINThe TPS563210AEVM-663 shut-down waveform relative to EN is shown in Figure 4-14. Load = 1 Ω resistive.
Figure 4-14 TPS563210AEVM-663 Shut-Down Relative to EN
