SLVUAY4A October 2014 – July 2021 TPS563210A
4.4 Load Regulation
The load regulation for the TPS563210AEVM-663 is shown in Figure 4-3 and Figure 4-4.

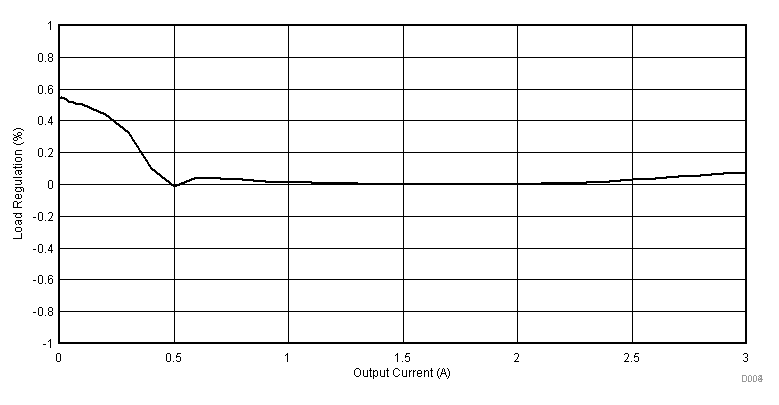

Figure 4-3 TPS563210AEVM-663 Load Regulation, 5 V Input

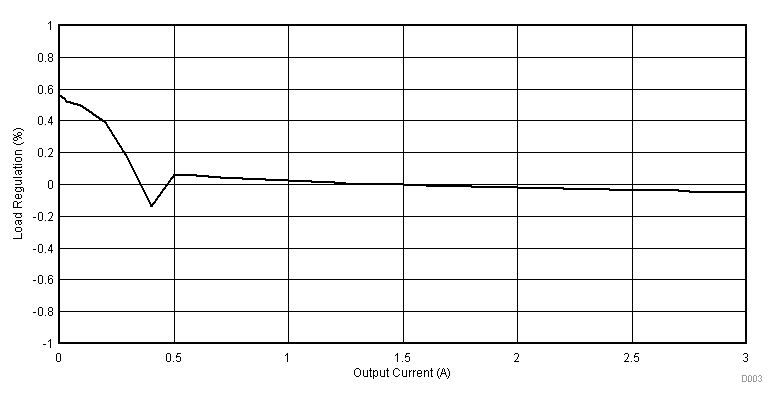

Figure 4-4 TPS563210AEVM-663 Load Regulation, 12 V Input
