4.6 Load Transient Response
The TPS563209EVM-652 response to load transient is shown in Figure 4-6. The current steps and slew rates are indicated in the figures. Total peak-to-peak voltage variation is as shown.

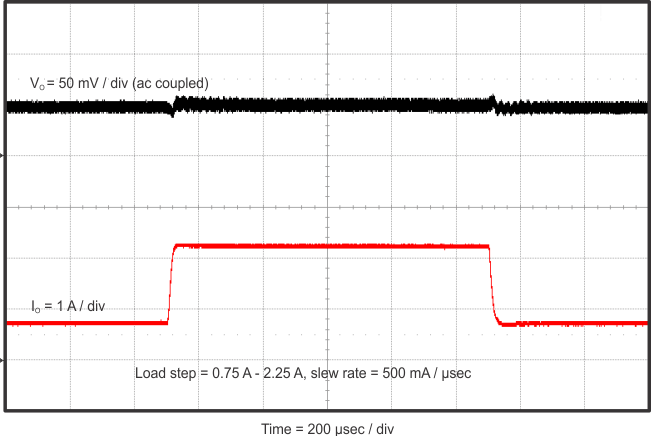

Figure 4-6 TPS563209EVM-652 Load Transient Response, 25% to 75% Load Step
