SLVUAB2A September 2014 – July 2021 TPS563209
4.10 Shut-Down

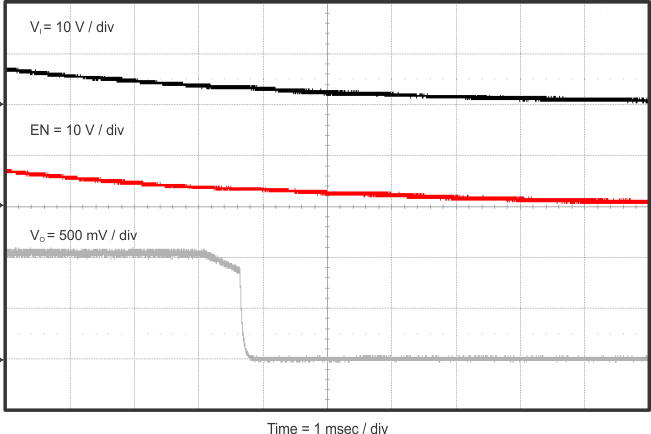

The TPS563209EVM-652 shut-down waveform relative to VIN is shown in Figure 4-12. Load = 1 Ω resistive.

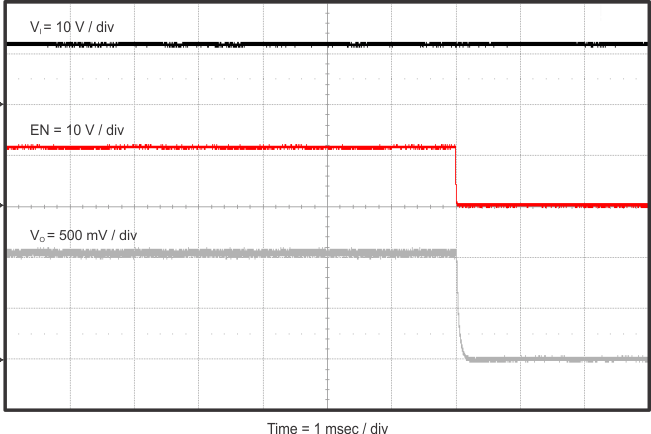

Figure 4-12 TPS563209EVM-652 Shut-Down Relative to VINThe TPS563209EVM-652 shut-down waveform relative to EN is shown in Figure 4-13. Load = 1 Ω resistive.
Figure 4-13 TPS563209EVM-652 Shut-Down Relative to EN
