4.4 Load Regulation
The load regulation for the TPS563209EVM-652 is shown in Figure 4-3 and Figure 4-4.

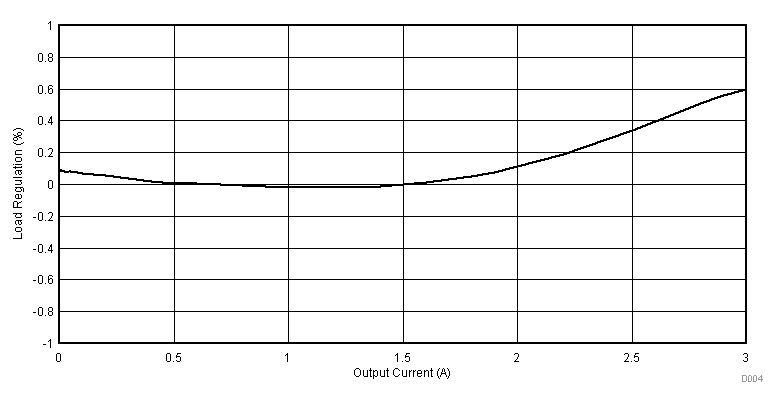

Figure 4-3 TPS563209EVM-652 Load Regulation, 5-V Input

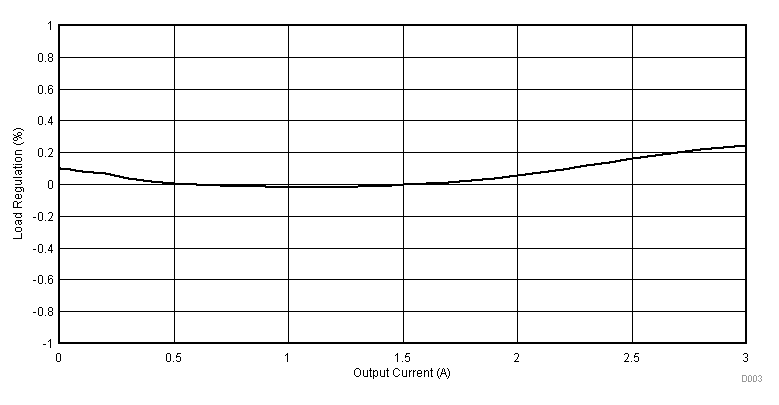

Figure 4-4 TPS563209EVM-652 Load Regulation, 12-V Input
