3.2.1 Import a System File

Use the Fusion Manufacturing Tool in mass-production environments to import a System file (.tifsp) to an online board.

To download the Fusion Manufacturing Tool , click here: http://www.ti.com/tool/FUSION_MFR_GUI. .

1. Build a Fusion System File (.tifsp) using Fusion Digital Power Designer
2. Apply power to the target board
3. Connect the USB-to-GPIO interface adapter
4. Start the Fusion Manufacturing Tool
5. Click the Load Script tab.
6. Click Browse to select a .tifsp file.

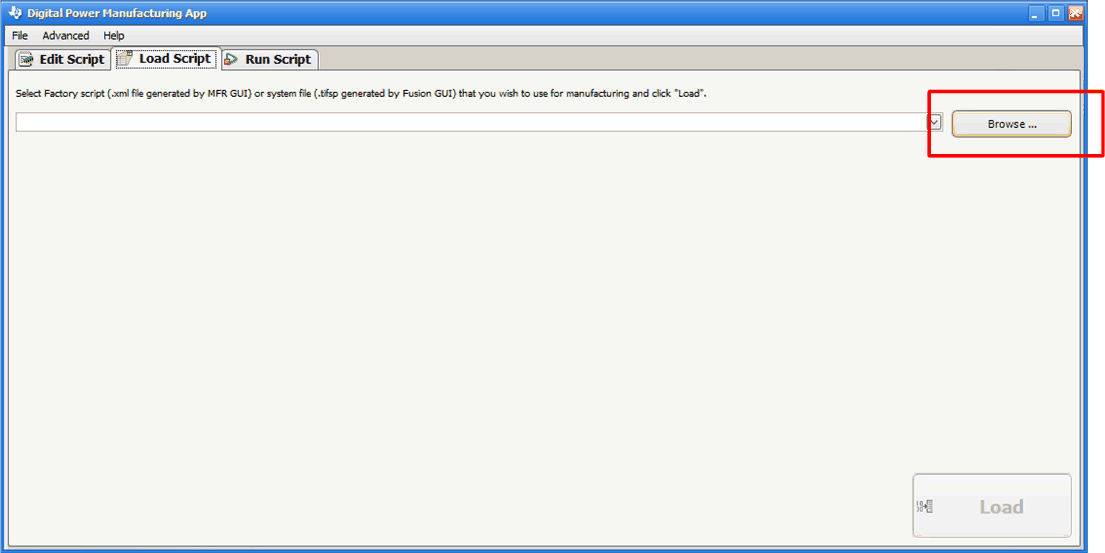

Figure 37. Browse for System File
7. After the software loads the System file, it shows a list of available devices.
8. Review this list to make sure the correct System files are selected.
9. Click Load Script.
Figure 38. Load the Script
10. Click Scan to ensure that the USB-to-GPIO interface adapter recognizes each device in the System file.
11. Click Start to upload the file to the target board.

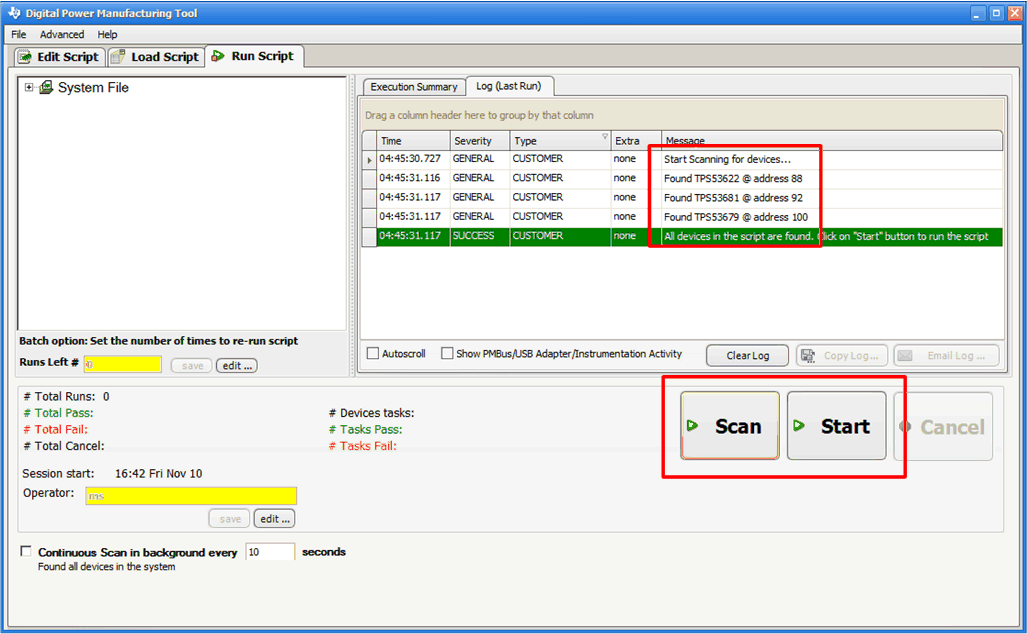

Figure 39. Scan and Start
12. The Result Summary dialog box appears. Click OK.
13. Disconnect power from the target board.
14. Repeat from step 10 for all remaining boards.

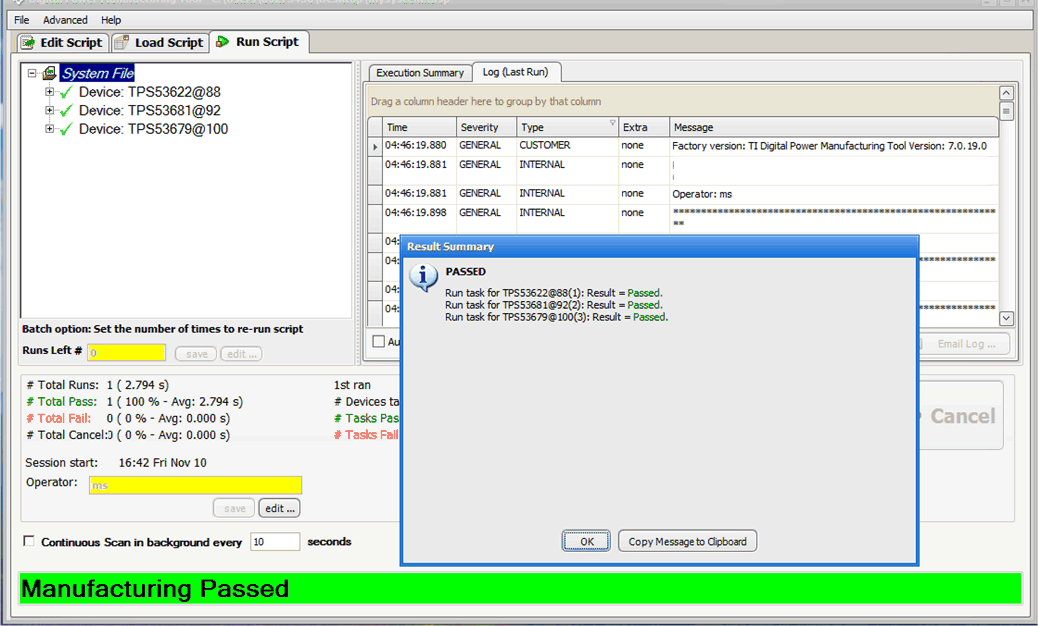

Figure 40. Manufacturing Passed
