3.1.6 Compare Two Project Files
This procedure applies to Project files created in Fusion Digital Power Designer 7.0 and later. This software compares Project files only. It does not compare Fusion Manufacturing scripts.
- From the System View, click on a device name, and click Configure Device.

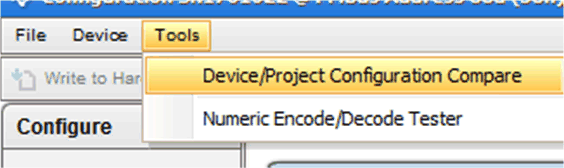

- From the Tools menu, select Device/Project Configuration Compare
- Select two or more Project files to compare.
- The Results window shows the differences between the commands in a column for each device.
Figure 30. Device/Project Configuration Compare
Figure 31. Compare Project Files
Figure 32. Project File Compare
