3.1.3 Import a Project File to a Single Online Device

1. Connect the USB-GPIO to a board.
2. Apply 3.3 V to the V3P3 pin of the controller device.
3. Start the Fusion Digital Power Designer software.
4. From the System View window, Click to configure device
5. From the File menu, select Import to device
6. Select Project File
7. Click Next.

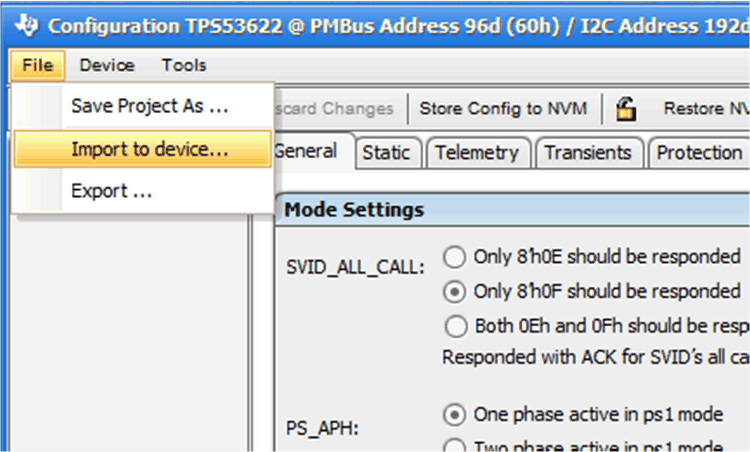

Figure 19. Import to Devcie
Figure 20. Import Project File

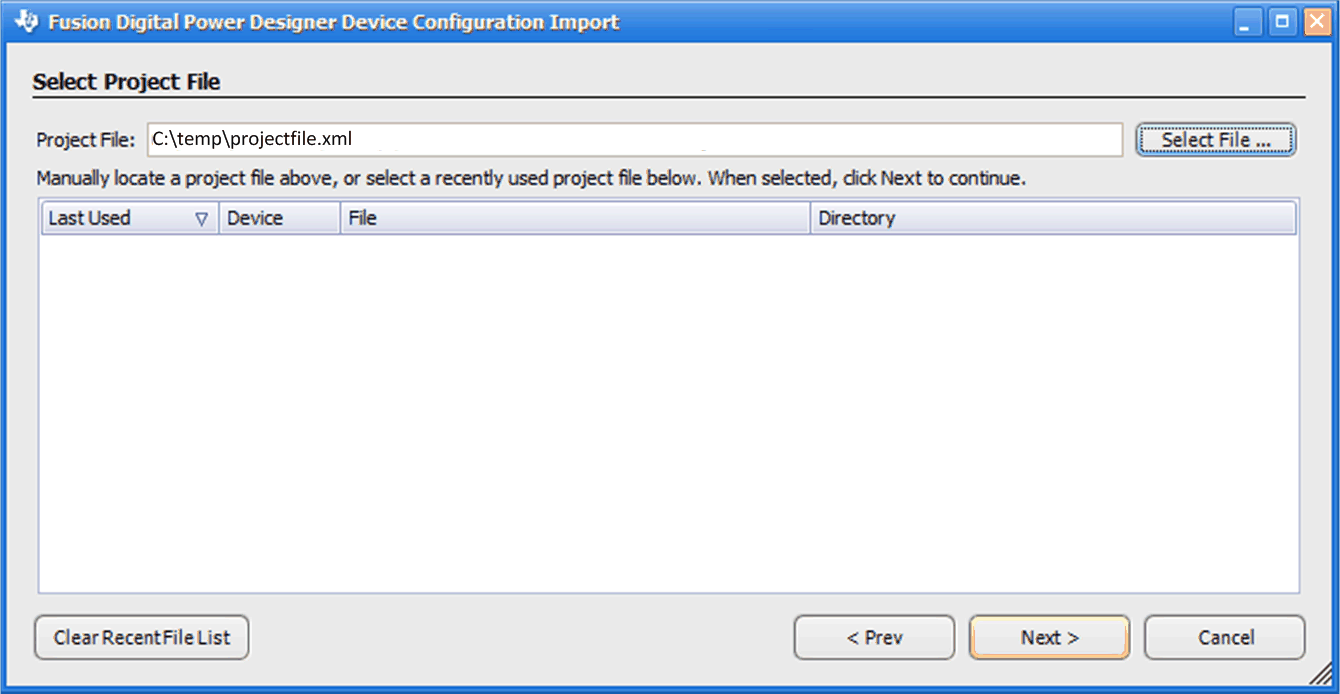

Figure 21. Select Project File
8. Click Select All to import all parameters of the device.
9. Click Write Checked.

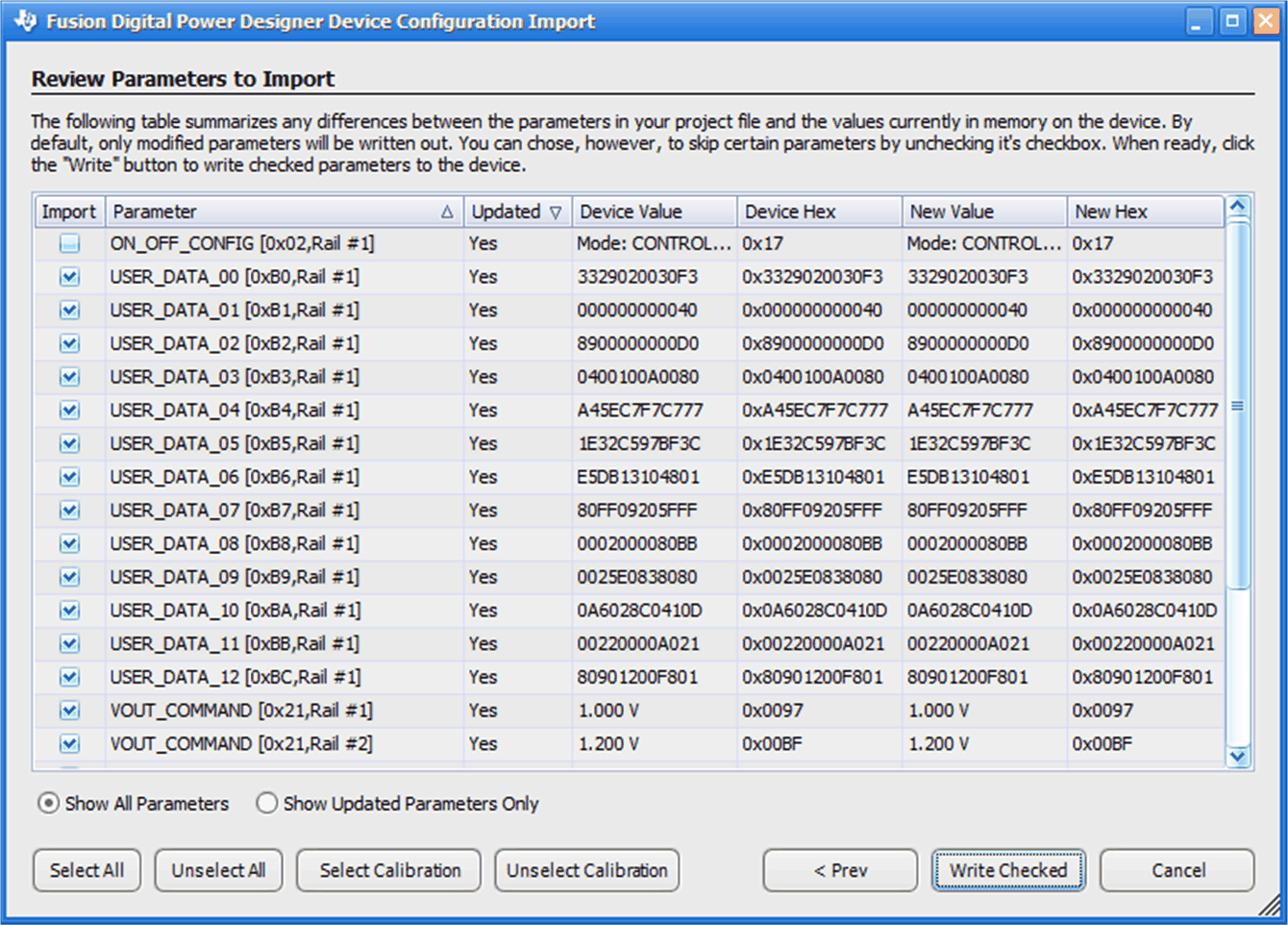

Figure 22. Select All and Write Checked Parameters

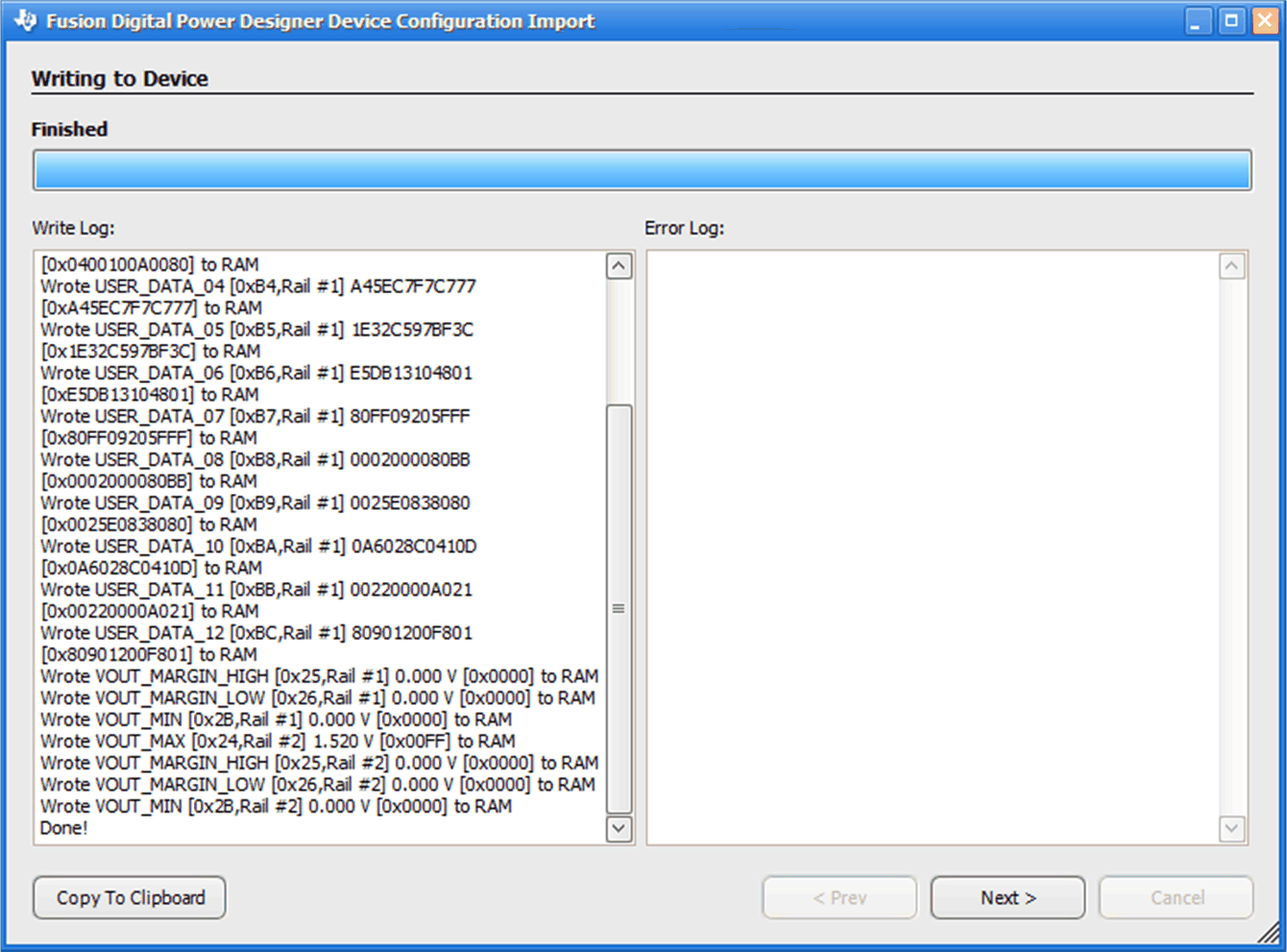

Figure 23. Successful Project File Import
10. When the Project file import finishes, the software does not automatically issue an NVM store operation command. You must click Store Config to NVM to update NVM settings after you import a Project file.

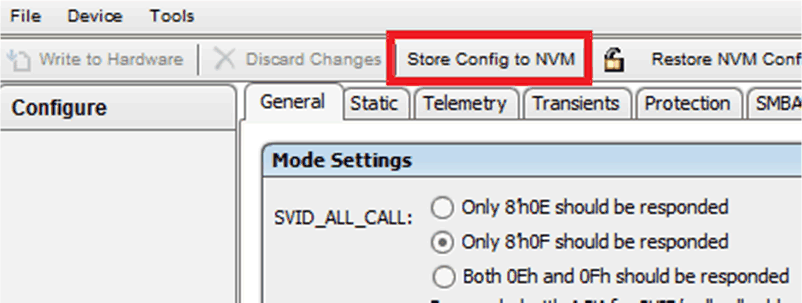

Figure 24. Store to NVM
