3.1 ASI Configuration for Shared TDM
In Shared TDM bus configuration, the ASI buses of multiple PCM6xx0 devices are connected together into a single shared bus, as shown in Figure 4.

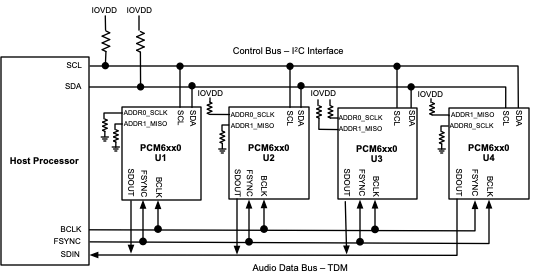

Figure 4. PCM6xx0 Shared TDM Connection Diagram To avoid multiple devices transmitting output data in the same slot, the PCM6xx0 supports mapping the input channels of a device to a programmable slot using the following registers:
- ASI_CH1 (Page 0x00, Register 0x0B), shown in Figure 5
- ASI_CH2 (Page 0x00, Register 0x0C), shown in Figure 6
- ASI_CH3 (Page 0x00, Register 0x0D), shown in Figure 7
- ASI_CH4 (Page 0x00, Register 0x0E), shown in Figure 8
This allows any channel to be mapped to any slot in any order. Furthermore, the PCM6xx0 also supports a secondary SDOUT output (SDOUT2) configured through the GPO_CFG0 register, bit field GPIO1_CFG with value of 0x03, as shown in Figure 18. This allows one or more devices outputting slots through two pins: primary output (SDOUT) and secondary output (SDOUT2). The ASI_CHx register bit field CHx_OUTPUT maps a slot to the primary (SDOUT) or secondary output (SDOUT2).
| 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| Reserved | CH1_OUTPUT | CH1_SLOT[5:0] | |||||
| R-0h | R/W-0h | R/W-0h | |||||
Table 2. ASI_CH1 Register Field Descriptions
| Bit | Field | Type | Reset | Description |
|---|---|---|---|---|
| 7 | Reserved | R | 0h | Reserved |
| 6 | CH1_OUTPUT | R/W | 0h | Channel 1 output line
0d = Channel 1 output is on the ASI primary output pin (SDOUT) 1d = Channel 1 output is on the ASI secondary output pin (GPIO1 or GPOx) |
| 5-0 | CH1_SLOT[5:0] | R/W | 0h | Channel 1 slot assignment
0d = TDM is slot 0 or I2S, LJ is left slot 0 1d = TDM is slot 1 or I2S, LJ is left slot 1 2d to 30d = Slot assigned as per configuration 31d = TDM is slot 31 or I2S, LJ is left slot 31 32d = TDM is slot 32 or I2S, LJ is right slot 0 33d = TDM is slot 33 or I2S, LJ is right slot 1 34d to 62d = Slot assigned as per configuration 63d = TDM is slot 63 or I2S, LJ is right slot 31 |
| 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| Reserved | CH2_OUTPUT | CH2_SLOT[5:0] | |||||
| R-0h | R/W-0h | R/W-1h | |||||
Table 3. ASI_CH2 Register Field Descriptions
| Bit | Field | Type | Reset | Description |
|---|---|---|---|---|
| 7 | Reserved | R | 0h | Reserved |
| 6 | CH2_OUTPUT | R/W | 0h | Channel 2 output line
0d = Channel 2 output is on the ASI primary output pin (SDOUT) 1d = Channel 2 output is on the ASI secondary output pin (GPIO1 or GPOx) |
| 5-0 | CH2_SLOT[5:0] | R/W | 1h | Channel 2 slot assignment
0d = TDM is slot 0 or I2S, LJ is left slot 0 1d = TDM is slot 1 or I2S, LJ is left slot 1 2d to 30d = Slot assigned as per configuration 31d = TDM is slot 31 or I2S, LJ is left slot 31 32d = TDM is slot 32 or I2S, LJ is right slot 0 33d = TDM is slot 33 or I2S, LJ is right slot 1 34d to 62d = Slot assigned as per configuration 63d = TDM is slot 63 or I2S, LJ is right slot 31 |
| 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| Reserved | CH3_OUTPUT | CH3_SLOT[5:0] | |||||
| R-0h | R/W-0h | R/W-2h | |||||
Table 4. ASI_CH3 Register Field Descriptions
| Bit | Field | Type | Reset | Description |
|---|---|---|---|---|
| 7 | Reserved | R | 0h | Reserved |
| 6 | CH3_OUTPUT | R/W | 0h | Channel 3 output line
0d = Channel 3 output is on the ASI primary output pin (SDOUT) 1d = Channel 3 output is on the ASI secondary output pin (GPIO1 or GPOx) |
| 5-0 | CH3_SLOT[5:0] | R/W | 2h | Channel 3 slot assignment
0d = TDM is slot 0 or I2S, LJ is left slot 0 1d = TDM is slot 1 or I2S, LJ is left slot 1 2d to 30d = Slot assigned as per configuration 31d = TDM is slot 31 or I2S, LJ is left slot 31 32d = TDM is slot 32 or I2S, LJ is right slot 0 33d = TDM is slot 33 or I2S, LJ is right slot 1 34d to 62d = Slot assigned as per configuration 63d = TDM is slot 63 or I2S, LJ is right slot 31 |
| 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| Reserved | CH4_OUTPUT | CH4_SLOT[5:0] | |||||
| R-0h | R/W-0h | R/W-3h | |||||
Table 5. ASI_CH4 Register Field Descriptions
| Bit | Field | Type | Reset | Description |
|---|---|---|---|---|
| 7 | Reserved | R | 0h | Reserved |
| 6 | CH4_OUTPUT | R/W | 0h | Channel 4 output line
0d = Channel 4 output is on the ASI primary output pin (SDOUT) 1d = Channel 4 output is on the ASI secondary output pin (GPIO1 or GPOx) |
| 5-0 | CH4_SLOT[5:0] | R/W | 3h | Channel 4 slot assignment
0d = TDM is slot 0 or I2S, LJ is left slot 0 1d = TDM is slot 1 or I2S, LJ is left slot 1 2d to 30d = Slot assigned as per configuration 31d = TDM is slot 31 or I2S, LJ is left slot 31 32d = TDM is slot 32 or I2S, LJ is right slot 0 33d = TDM is slot 33 or I2S, LJ is right slot 1 34d to 62d = Slot assigned as per configuration 63d = TDM is slot 63 or I2S, LJ is right slot 31 |
| 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| Reserved | CH5_OUTPUT | CH5_SLOT[5:0] | |||||
| R-0h | R/W-0h | R/W-3h | |||||
Table 6. ASI_CH5 Register Field Descriptions (PCM6x60)
| Bit | Field | Type | Reset | Description |
|---|---|---|---|---|
| 7 | Reserved | R | 0h | Reserved |
| 6 | CH5_OUTPUT | R/W | 0h | Channel 5 output line
0d = Channel 5 output is on the ASI primary output pin (SDOUT) 1d = Channel 5 output is on the ASI secondary output pin (GPIO1 or GPOx) |
| 5-0 | CH5_SLOT[5:0] | R/W | 3h | Channel 5 slot assignment
0d = TDM is slot 0 or I2S, LJ is left slot 0 1d = TDM is slot 1 or I2S, LJ is left slot 1 2d to 30d = Slot assigned as per configuration 31d = TDM is slot 31 or I2S, LJ is left slot 31 32d = TDM is slot 32 or I2S, LJ is right slot 0 33d = TDM is slot 33 or I2S, LJ is right slot 1 34d to 62d = Slot assigned as per configuration 63d = TDM is slot 63 or I2S, LJ is right slot 31 |
| 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| Reserved | CH6_OUTPUT | CH6_SLOT[5:0] | |||||
| R-0h | R/W-0h | R/W-3h | |||||
Table 7. ASI_CH6 Register Field Descriptions (PCM6x60)
| Bit | Field | Type | Reset | Description |
|---|---|---|---|---|
| 7 | Reserved | R | 0h | Reserved |
| 6 | CH5_OUTPUT | R/W | 0h | Channel 6 output line
0d = Channel 6 output is on the ASI primary output pin (SDOUT) 1d = Channel 6 output is on the ASI secondary output pin (GPIO1 or GPOx) |
| 5-0 | CH5_SLOT[5:0] | R/W | 3h | Channel 6 slot assignment
0d = TDM is slot 0 or I2S, LJ is left slot 0 1d = TDM is slot 1 or I2S, LJ is left slot 1 2d to 30d = Slot assigned as per configuration 31d = TDM is slot 31 or I2S, LJ is left slot 31 32d = TDM is slot 32 or I2S, LJ is right slot 0 33d = TDM is slot 33 or I2S, LJ is right slot 1 34d to 62d = Slot assigned as per configuration 63d = TDM is slot 63 or I2S, LJ is right slot 31 |
For the example of , the following I2C script configures the input channels of U1–U4 into slots 0–15 for PCM6xx0, respectively. Note that slots are not assigned to the input channels of each device in sequence to show the flexibility of channel assignments to TDM slots:
w 90 0B 04 # Set U1 Ch1 mapped to slot 4 of SDOUT
w 90 0C 06 # Set U1 Ch2 mapped to slot 6 of SDOUT
w 90 0D 01 # Set U1 Ch3 mapped to slot 1 of SDOUT
w 90 0E 00 # Set U1 Ch4 mapped to slot 0 of SDOUT
w 91 0B 03 # Set U2 Ch1 mapped to slot 3 of SDOUT
w 91 0C 05 # Set U2 Ch2 mapped to slot 5 of SDOUT
w 91 0D 02 # Set U2 Ch3 mapped to slot 2 of SDOUT
w 91 0E 07 # Set U2 Ch4 mapped to slot 7 of SDOUT
w 92 0B 08 # Set U3 Ch1 mapped to slot 8 of SDOUT
w 92 0C 09 # Set U3 Ch2 mapped to slot 9 of SDOUT
w 92 0D 0A # Set U3 Ch3 mapped to slot 10 of SDOUT
w 92 0E 0C # Set U3 Ch4 mapped to slot 12 of SDOUT
w 93 0B 0F # Set U4 Ch1 mapped to slot 15 of SDOUT
w 93 0C 0D # Set U4 Ch1 mapped to slot 13 of SDOUT
w 93 0D 0E # Set U4 Ch1 mapped to slot 14 of SDOUT
w 93 0E 0B # Set U4 Ch1 mapped to slot 11 of SDOUT
This configuration requires that all the devices place their outputs in high-impedance mode, so another device can drive the bus. PCM6xx0 supports driving the output line low or placing it in high-impedance during unused bit clock cycles through the ASI_CFG0 register bit field TX_FILL, shown in Figure 11. Setting the TX_FILL places the primary (SDOUT) and secondary output line (SDOUT2) in high-impedance. Note the reset value configures SDOUT and SDOUT2 to drive low during unused bit clock cycles.
| 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| ASI_FORMAT[1:0] | ASI_WLEN[1:0] | FSYNC_POL | BCLK_POL | TX_EDGE | TX_FILL | ||
| R/W-0h | R/W-3h | R/W-0h | R/W-0h | R/W-0h | R/W-0h | ||
Table 8. ASI_CFG0 Register Field Descriptions
| Bit | Field | Type | Reset | Description |
|---|---|---|---|---|
| 7-6 | ASI_FORMAT[1:0] | R/W | 0h | ASI protocol format
0d = TDM mode 1d = I2S mode 2d = LJ (left-justified) mode 3d = Reserved |
| 5-4 | ASI_WLEN[1:0] | R/W | 3h | ASI word or slot length
0d = 16 bits 1d = 20 bits 2d = 24 bits 3d = 32 bits |
| 3 | FSYNC_POL | R/W | 0h | ASI FSYNC polarity
0d = Default polarity as per standard protocol 1d = Inverted polarity with respect to standard protocol |
| 2 | BCLK_POL | R/W | 0h | ASI BCLK polarity
0d = Default polarity as per standard protocol 1d = Inverted polarity with respect to standard protocol |
| 1 | TX_EDGE | R/W | 0h | ASI data output (on the primary and secondary data pin) transmit edge
0d = Default edge as per the protocol configuration setting in bit 2 (BCLK_POL) 1d = Inverted following edge (half cycle delay) with respect to the default edge setting |
| 0 | TX_FILL | R/W | 0h | ASI data output (on the primary and secondary data pin) for any unused cycles
0d = Always transmit 0 for unused cycles 1d = Always use Hi-Z for unused cycles |
PCM6xx0 also supports tri-stating unused channels slots through the ASI_OUT_CH_EN register, as shown in Figure 12.
| 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| ASI_OUT_CH1_EN | ASI_OUT_CH2_EN | ASI_OUT_CH3_EN | ASI_OUT_CH4_EN | ASI_OUT_CH5_EN
(PCM6x60) |
ASI_OUT_CH6_EN
(PCM6x60) |
Reserved | Reserved |
| R/W-0h | R/W-0h | R/W-0h | R/W-0h | R/W-0h | R/W-0h | R/W-0h | R/W-0h |
Table 9. ASI_OUT_CH_EN Register Field Descriptions
| Bit | Field | Type | Reset | Description |
|---|---|---|---|---|
| 7 | ASI_OUT_CH1_EN | R/W | 0h | ASI output channel 1 enable setting
0d = Channel 1 output slot is in a tri-state condition 1d = Channel 1 output slot is enabled |
| 6 | ASI_OUT_CH2_EN | R/W | 0h | ASI output channel 2 enable setting
0d = Channel 2 output slot is in a tri-state condition 1d = Channel 2 output slot is enabled |
| 5 | ASI_OUT_CH3_EN | R/W | 0h | ASI output channel 3 enable setting
0d = Channel 3 output slot is in a tri-state condition 1d = Channel 3 output slot is enabled |
| 4 | ASI_OUT_CH4_EN | R/W | 0h | ASI output channel 4 enable setting
0d = Channel 4 output slot is in a tri-state condition 1d = Channel 4 output slot is enabled |
| 3 | ASI_OUT_CH5_EN
(PCM6x60) |
R/W | 0h | ASI output channel 5 enable setting
0d = Channel 5 output slot is in a tri-state condition 1d = Channel 5 output slot is enabled |
| 2 | ASI_OUT_CH6_EN
(PCM6x60) |
R/W | 0h | ASI output channel 6 enable setting
0d = Channel 6 output slot is in a tri-state condition 1d = Channel 6 output slot is enabled |
| 1 | Reserved | R/W | 0h | Reserved |
| 0 | Reserved | R/W | 0h | Reserved |
To minimize power consumption by preventing pins from floating, the PCM6xx0 also supports enabling bus-keepers on SDOUT and SDOUT2 outputs. Register ASI_CFG1 controls the bus-keeper on the outputs through the TX_KEEPER bit field, as shown in Table 10. This register also controls the length of time SDOUT and SDOUT2 strongly drives the least significant bit (LSB) on the bus. This allows fine control so that two devices do not drive different signals on the same bus line at the same time, avoiding bus contention. For example, the LSB of U2 could be set to transmit on the first half of the bit clock cycle, while the MSB of U3 is driving without any offset. Moreover, selecting TX_KEEPER value of 0x2 or 0x3 adds robustness to the system by ensuring the LSB is latched properly by the host processor, since bus-keepers continue holding the bus with the last value driven. Note that this register also controls the number of bit clocks the most significant bit (MSB) is delayed.
| 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| TX_LSB | TX_KEEPER[1:0] | TX_OFFSET[4:0] | |||||
| R/W-0h | R/W-0h | R/W-0h | |||||
Table 10. ASI_CFG1 Register Field Descriptions
| Bit | Field | Type | Reset | Description |
|---|---|---|---|---|
| 7 | TX_LSB | R/W | 0h | ASI data output (on the primary and secondary data pin) for LSB transmissions
0d = Transmit the LSB for a full cycle 1d = Transmit the LSB for the first half cycle and Hi-Z for the second half cycle |
| 6-5 | TX_KEEPER[1:0] | R/W | 0h | ASI data output (on the primary and secondary data pin) bus keeper
0d = Bus keeper is always disabled 1d = Bus keeper is always enabled 2d = Bus keeper is enabled during LSB transmissions only for one cycle 3d = Bus keeper is enabled during LSB transmissions only for one and half cycles |
| 4-0 | TX_OFFSET[4:0] | R/W | 0h | ASI data MSB slot 0 offset (on the primary and secondary data pin)
0d = ASI data MSB location has no offset and is as per standard protocol 1d = ASI data MSB location (TDM mode is slot 0 or I2S, LJ mode is the left and right slot 0) offset of one BCLK cycle with respect to standard protocol 2d = ASI data MSB location (TDM mode is slot 0 or I2S, LJ mode is the left and right slot 0) offset of two BCLK cycles with respect to standard protocol 3d to 30d = ASI data MSB location (TDM mode is slot 0 or I2S, LJ mode is the left and right slot 0) offset assigned as per configuration 31d = ASI data MSB location (TDM mode is slot 0 or I2S, LJ mode is the left and right slot 0) offset of 31 BCLK cycles with respect to standard protocol |
To support a greater number of slots than Equation 1 allows, multiple host processor TDM busses can split the PCM6xx0 devices connected, as shown in Figure 14. This connection method not only decreases the bit clock (BCLK) speed by half, but also reduces the load capacitance on the data lines SDIN1 and SDIN2 of the host processor.

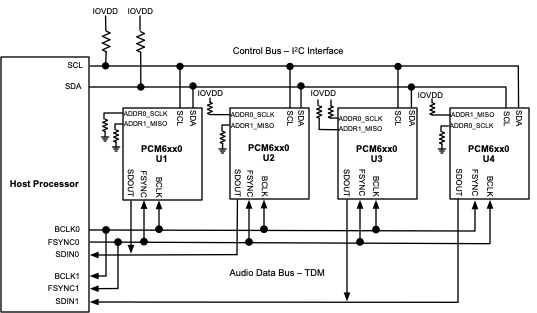

Figure 14. PCM6xx0 Shared Split TDM Connection Diagram Another option is to use the secondary output to map slots of a single device to the primary and secondary output. For example, a system with 12 channels, 32-bit data words, and running with a 96-KHz sample rate requires a bit clock of 36.864 MHz (three devices * four channels/device * 32 bit words * 96 kHz), violating the maximum BCLK speed of 25 MHz. Dividing the 12 channels by assigning six channels to a primary bus and six channels to a secondary bus keeps the BCLK under 25 MHz. Since each device has four channels, one device has two channels assigned to the primary bus and two channels assigned to the secondary bus, as shown in Figure 15.

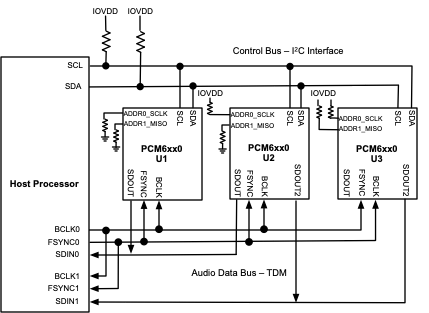

Figure 15. PCM6xx0 Shared Split TDM with Primary and Secondary Bus Connection Diagram For the example of , the following I2C script configures U1, U2, and U3 for Shared TDM with primary and secondary bus.
w 90 0B 00 # Set U1 Ch1 mapped to slot 0 of SDOUT
w 90 0C 01 # Set U1 Ch2 mapped to slot 1 of SDOUT
w 90 0D 02 # Set U1 Ch3 mapped to slot 2 of SDOUT
w 90 0E 03 # Set U1 Ch4 mapped to slot 3 of SDOUT
w 91 0B 04 # Set U2 Ch1 mapped to slot 4 of SDOUT
w 91 0C 05 # Set U2 Ch2 mapped to slot 5 of SDOUT
w 91 22 30 # Set U2 GPIO1 as SDOUT2
w 91 0D 40 # Set U2 Ch3 mapped to slot 0 of SDOUT2
w 91 0E 41 # Set U2 Ch4 mapped to slot 1 of SDOUT2
w 92 22 30 # Set U3 GPIO1 as SDOUT2
w 92 0B 42 # Set U3 Ch1 mapped to slot 2 of SDOUT2
w 92 0C 43 # Set U3 Ch2 mapped to slot 3 of SDOUT2
w 92 0D 44 # Set U3 Ch3 mapped to slot 4 of SDOUT2
