1.1.3 EVM Cables
The EVM cables and Cheetah USB to SPI adapter are listed in Table 1-5 and shown in Figure 1-3.

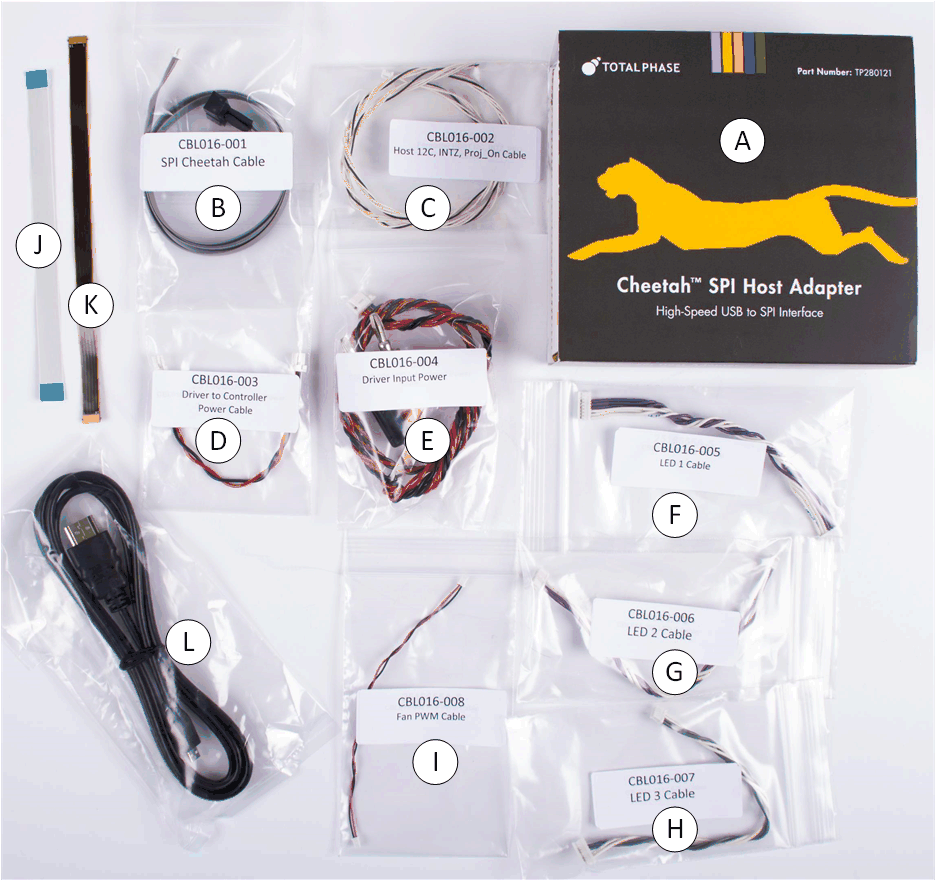

Figure 1-3 EVM CablesTable 1-5 EVM Cables
| NAME | REFERENCE | QUANTITY |
|---|---|---|
| Cheetah? SPI Host Adapter | A | 1 |
| Host SPI Cable | B | 1 |
| Host I2C Cable (Includes PROJ_ON, HOLD_BOOT, HOST_IRQ signals) | C | 1 |
| Driver to Controller Power Cable | D | 1 |
| Input Power Cable | E | 1 |
| LED1 Illuminator Power Cable | F | 1 |
| LED2 Illuminator Power Cable | G | 1 |
| LED3 Illuminator Power Cable | H | 1 |
| Fan PWM | I | 1 |
| Controller to Driver Control Flex | J | 1 |
| OpenLDI Flex Cable | K | 1 |
| Micro HDMI Cable | L | 1 |
