7.7 I2C/PMBus Interface Timing Requirements
| MIN | NOM | MAX | UNIT | |||
|---|---|---|---|---|---|---|
| I1 | t(HD:STA) | Start condition hold time | 450 | ns | ||
| I2 | t(LOW) | Clock low period(1) | 450 | ns | ||
| I3 | tr | Clock rise time and data rise time(2) | See(2) | ns | ||
| I4 | t(HD:DAT) | Data hold time | 25 | ns | ||
| I5 | tf | Clock fall time and data fall time(3) | 112.5 | 125 | ns | |
| I6 | t(HIGH) | Clock high time | 300 | ns | ||
| I7 | t(SU:DAT) | Data setup time | 225 | ns | ||
| I8 | t(SU:STA) | Start condition setup time (repeated start only) | 450 | ns | ||
| I9 | t(SU:STO) | Stop condition setup time | 300 | ns | ||
| I10 | t(DV) | Data valid | 25 | ns | ||
(1) PMBus host must support clock stretching per PMBus Power System Management Protocol Specification Part I General Requirements, Transport and Electrical Interface, Revision 1.2, Section 5.2.6.
(2) Because the I2CSCL signal and the I2CSDA signal operate as open-drain-type signals, which the controller can actively drive only "Low", the time that either signal takes to reach a high level depends on external signal capacitance and pull-up resistor values.
(3) Specified at a nominal 50-pF load.

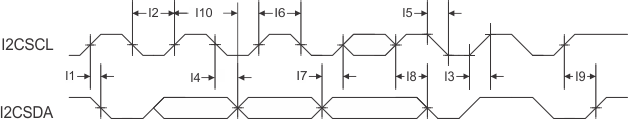

Figure 1. I2C/PMBus Timing Diagram
