7.1.1 CMTI Testing
Figure 7-3, Figure 7-4, and Figure 7-5 are simplified diagrams of the CMTI testing configuration used for each device type.
Figure 7-3 CMTI Test Circuit for Split
Output (UCC53x0S)

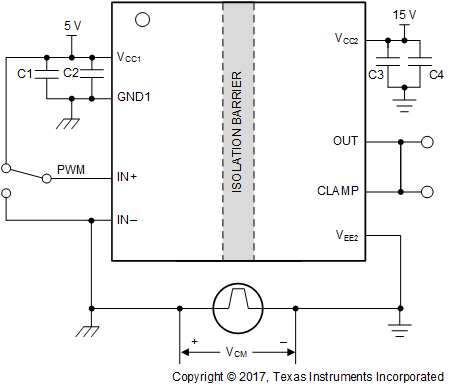

Figure 7-4 CMTI Test Circuit for Miller
Clamp (UCC53x0M)

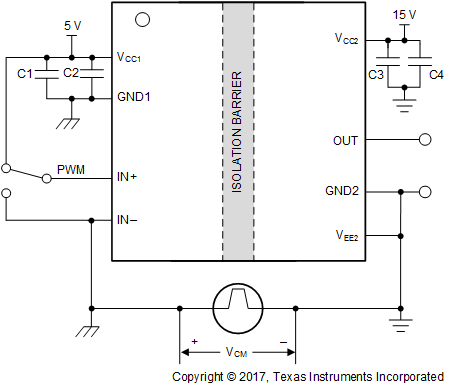

Figure 7-5 CMTI Test Circuit for UVLO2
with Respect to GND2 (UCC53x0E)
