Figure 10-1 shows a PCB layout example with the signals and key components labeled.

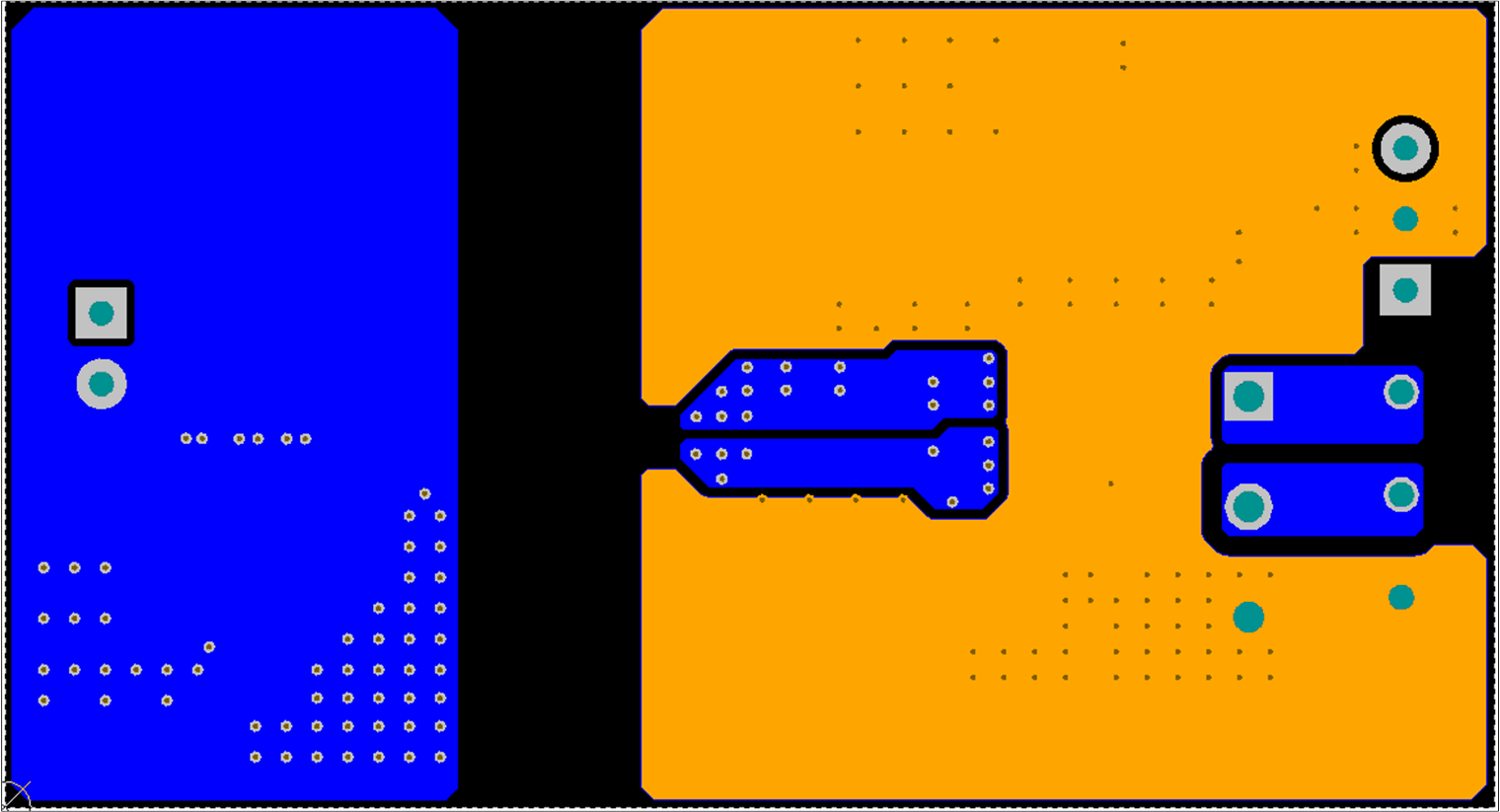

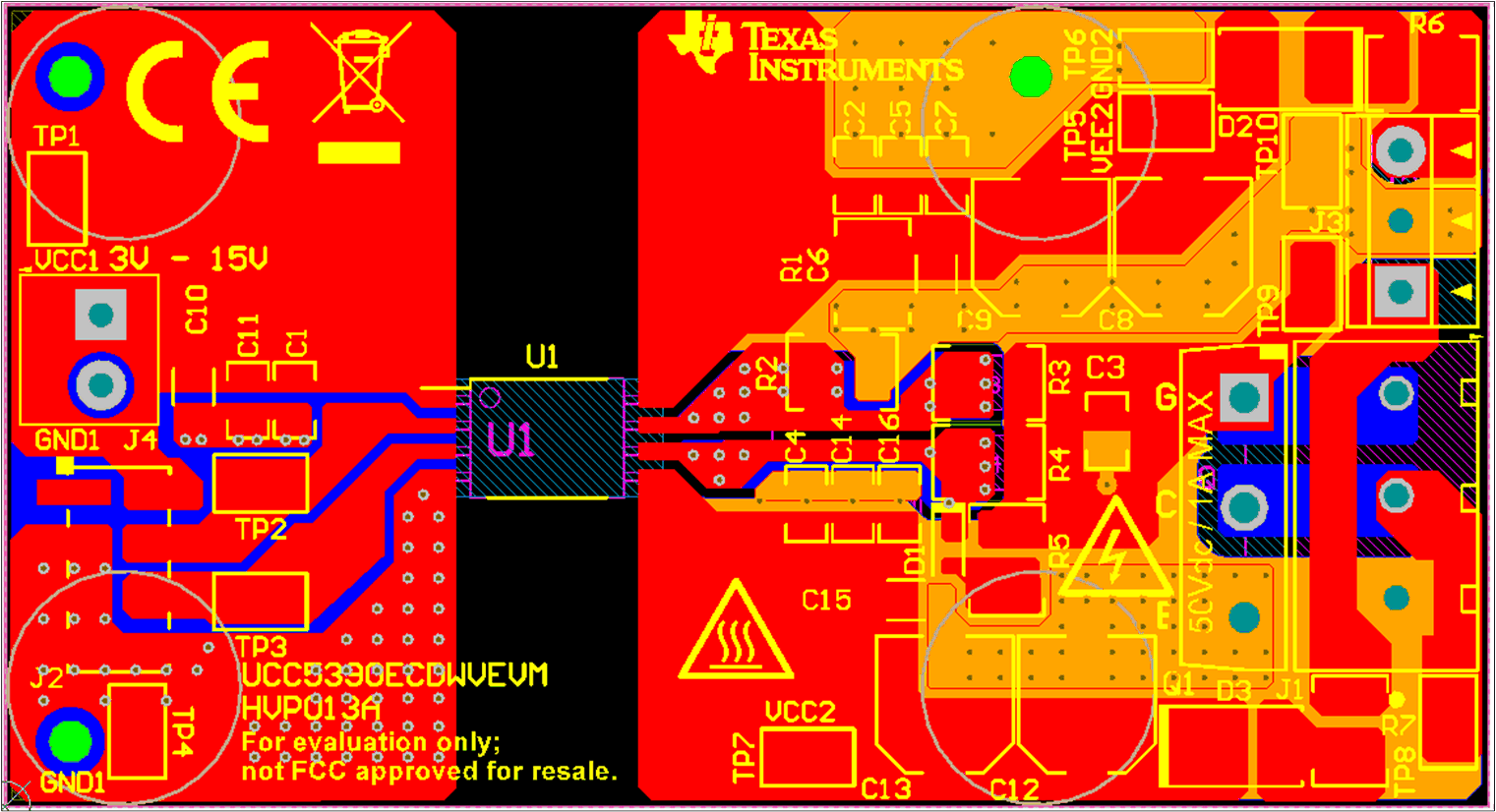

Figure 10-2 and Figure 10-3 show the top and bottom layer traces and copper.
Figure 10-2 Top-Layer Traces and
Copper
Figure 10-3 Bottom-Layer Traces and Copper

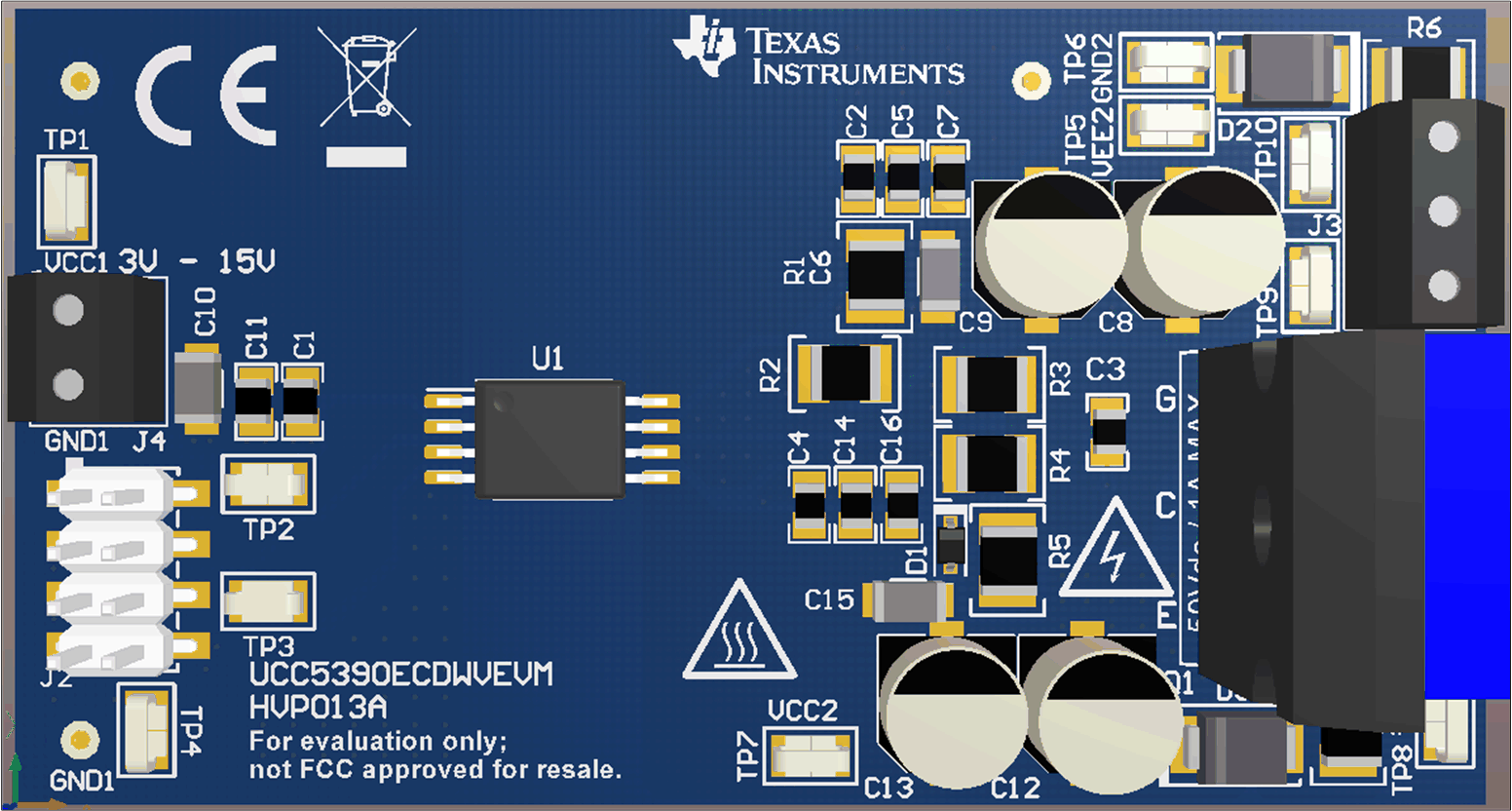

(Flipped)Figure 10-4 shows the 3D layout of the top view of the PCB.
Figure 10-4 3-D PCB View
