9.2.3 Application Curves

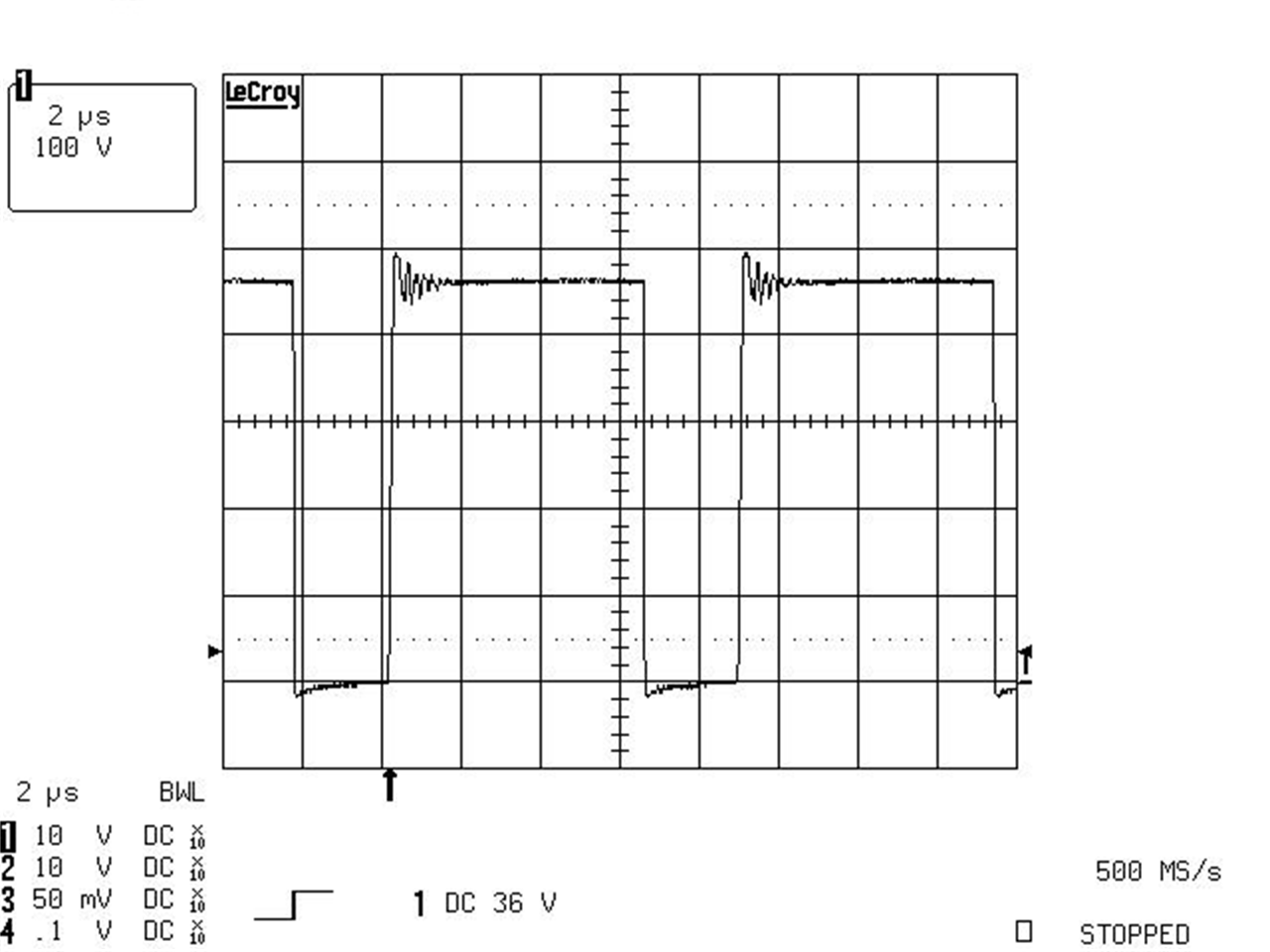

Figure 9-7 Primary Side MOSFET Drain to Source Voltage at 240-V AC Input (100 V/div)
| CH1: Output Voltage AC Coupled, 200 mV/div |
| CH4: Output Current, 1 A/div |

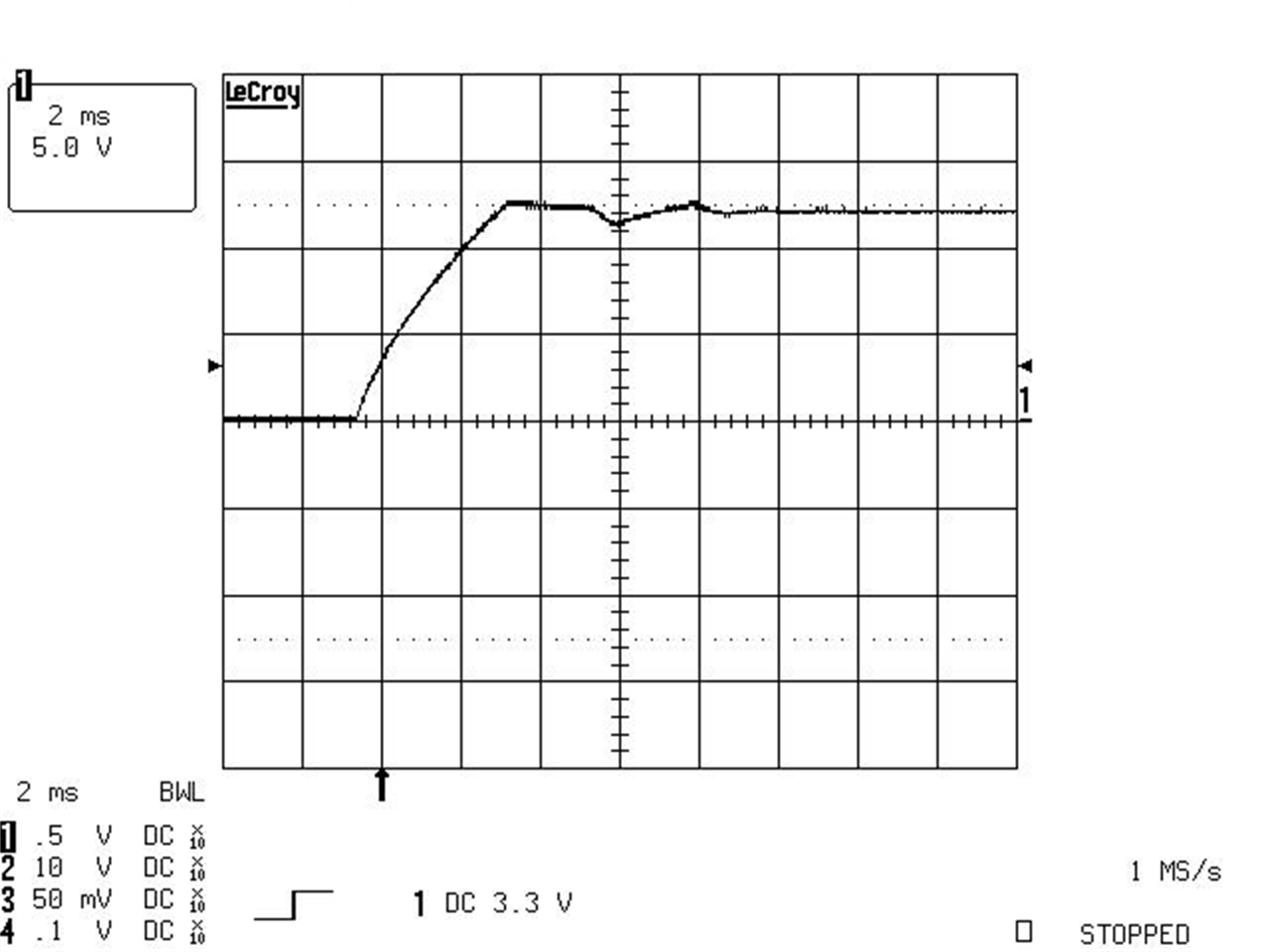

Figure 9-11 Output Voltage Behavior at Full Load Start-up (5 V/div)

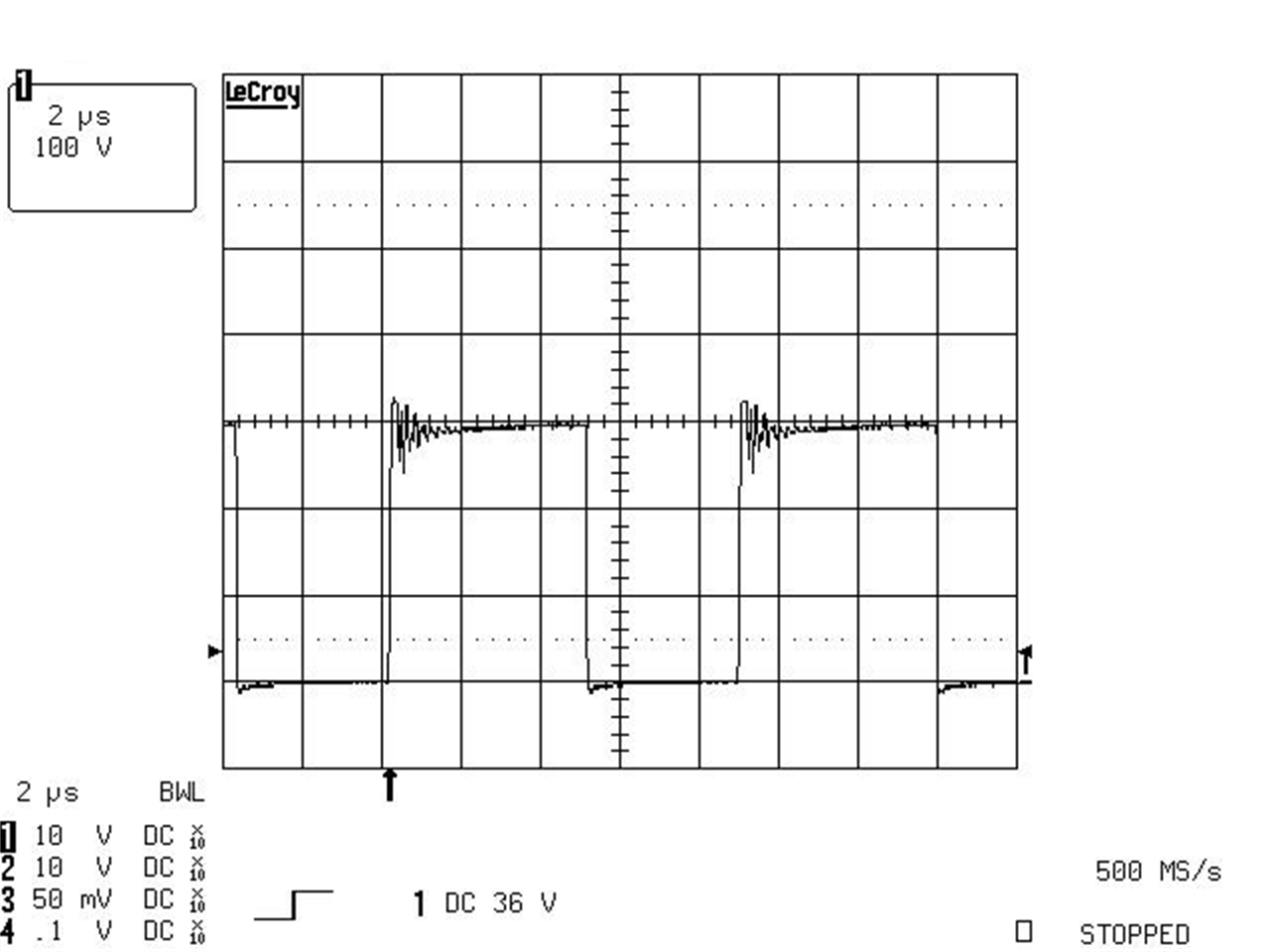

Figure 9-8 Primary Side MOSFET Drain to Source Voltage at 120-V AC Input (100 V/div)
