7.2.3 Application Curves
The figures below show the typical switching characteristics of the UCC27624V device used in high-voltage boost converter application. In this application, the UCC27624V is driving the IGBT switch that has a gate charge of 110nC.
Figure 7-3 UCC27624V Used to Drive IGBT in the Boost
Converter

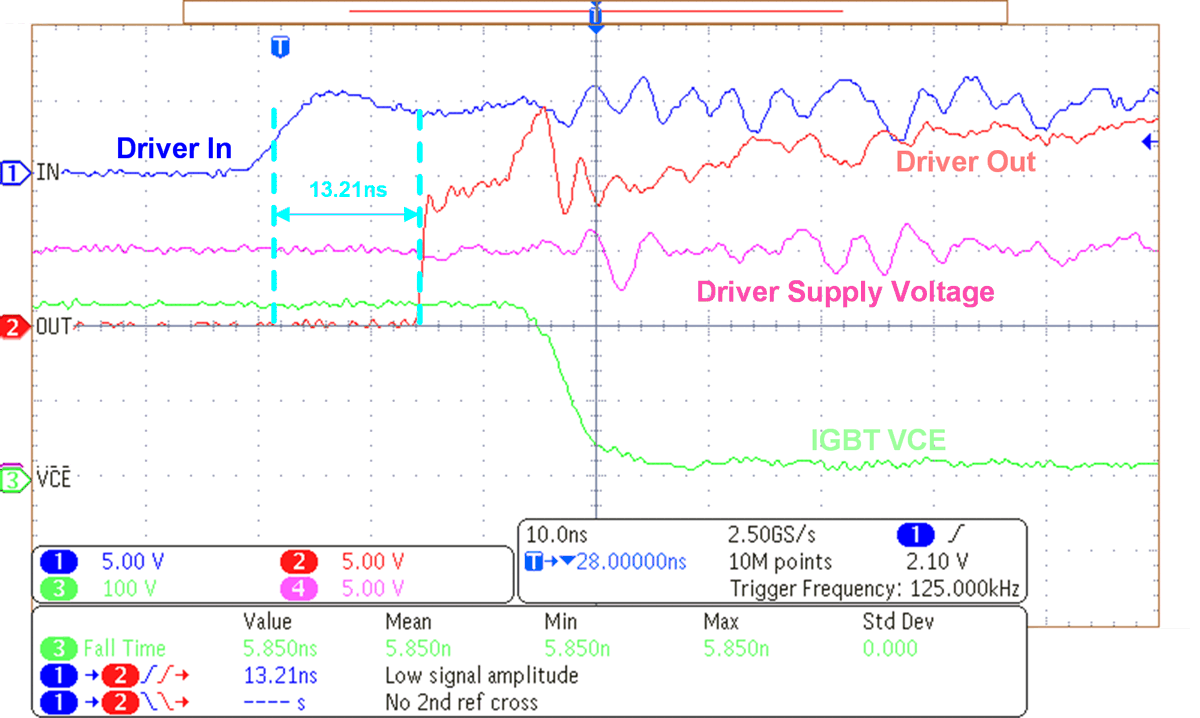

| Vin = 210V, Vout = 235V, Iout = 1.14A, Fsw = 125kHz, driver supply voltage = 15V, gate resistor = 0? |

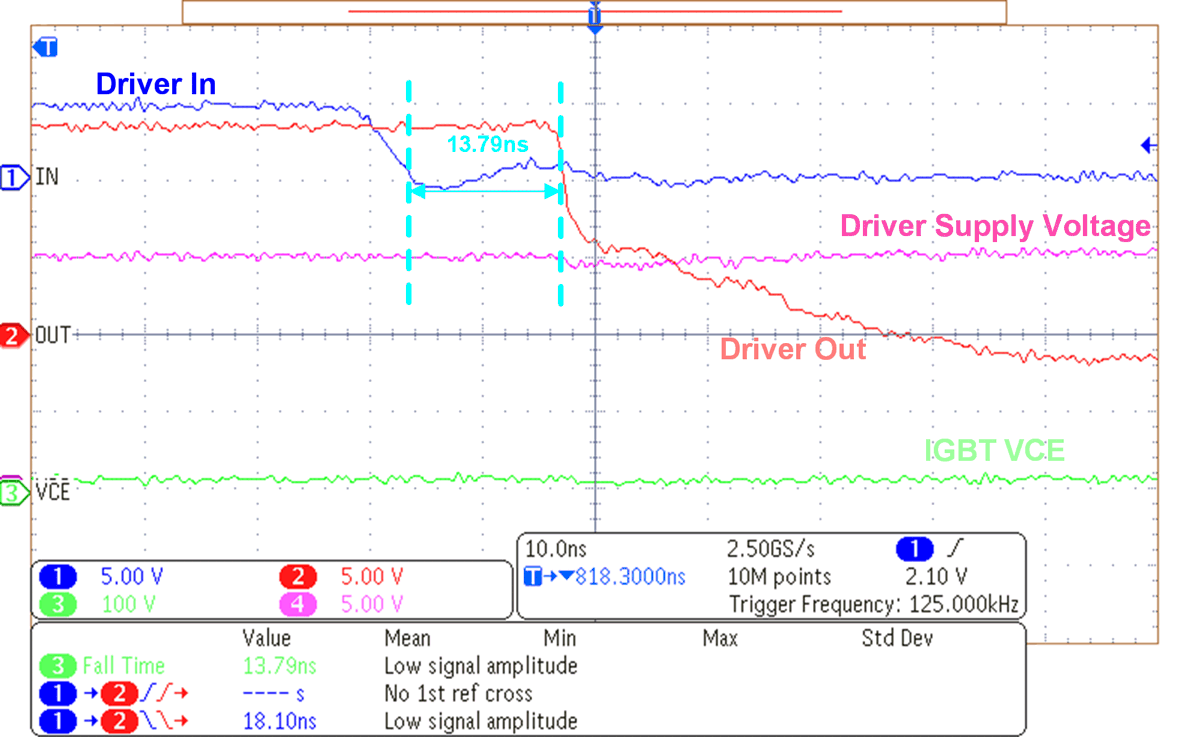

| Vin = 210V, Vout = 235V, Iout = 1.14A, Fsw = 100kHz, driver supply voltage = 15V, gate resistor = 0? |
