6.11 Typical Characteristics

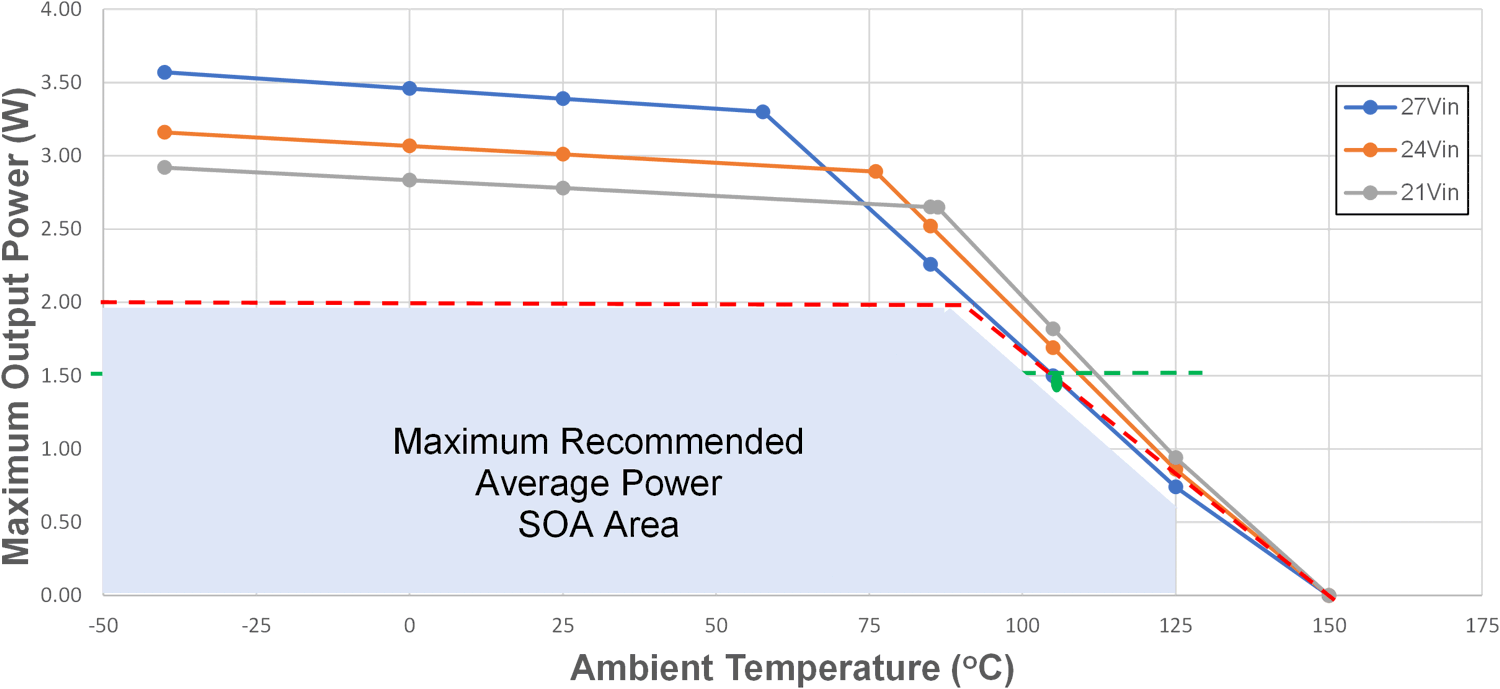

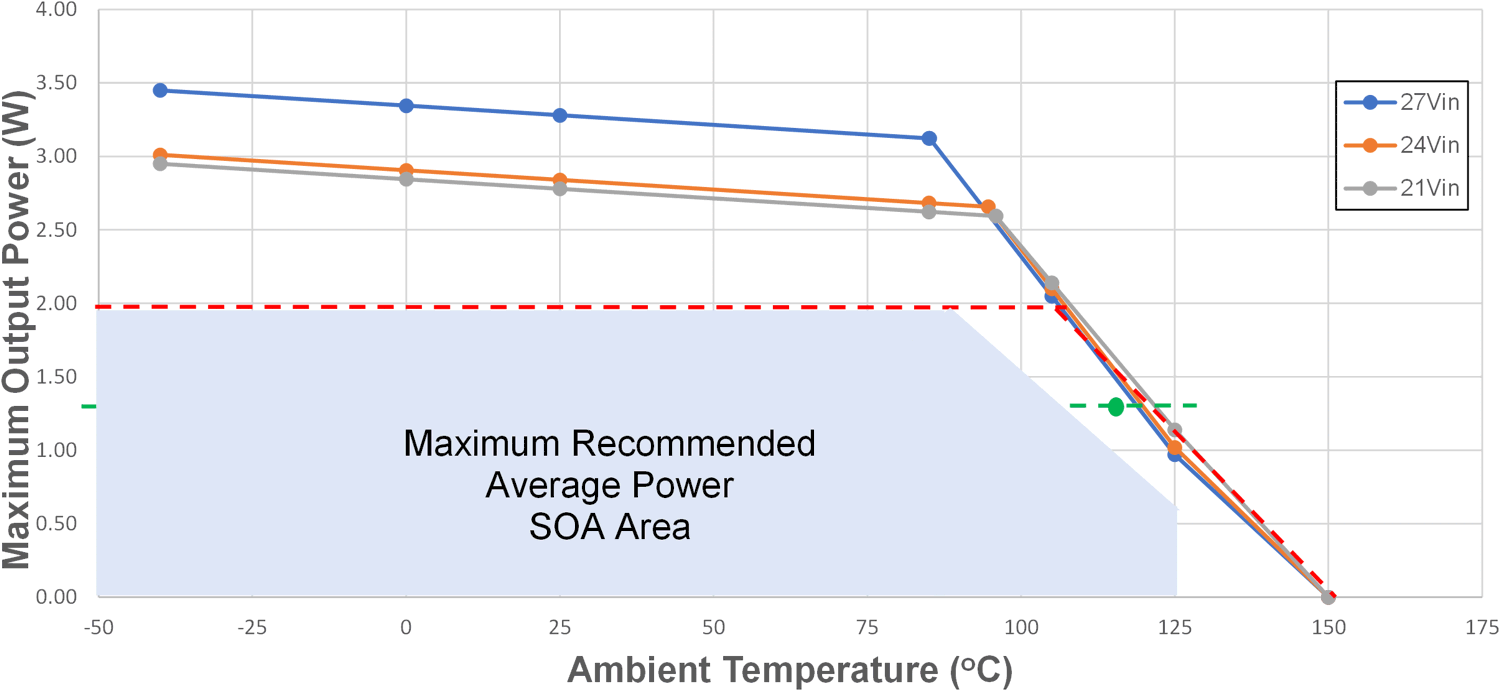

Figure 6-2 SOA Derating Curves: VVDD-VEE = 18 V,
VCOM-VEE = 5 V, No Load.

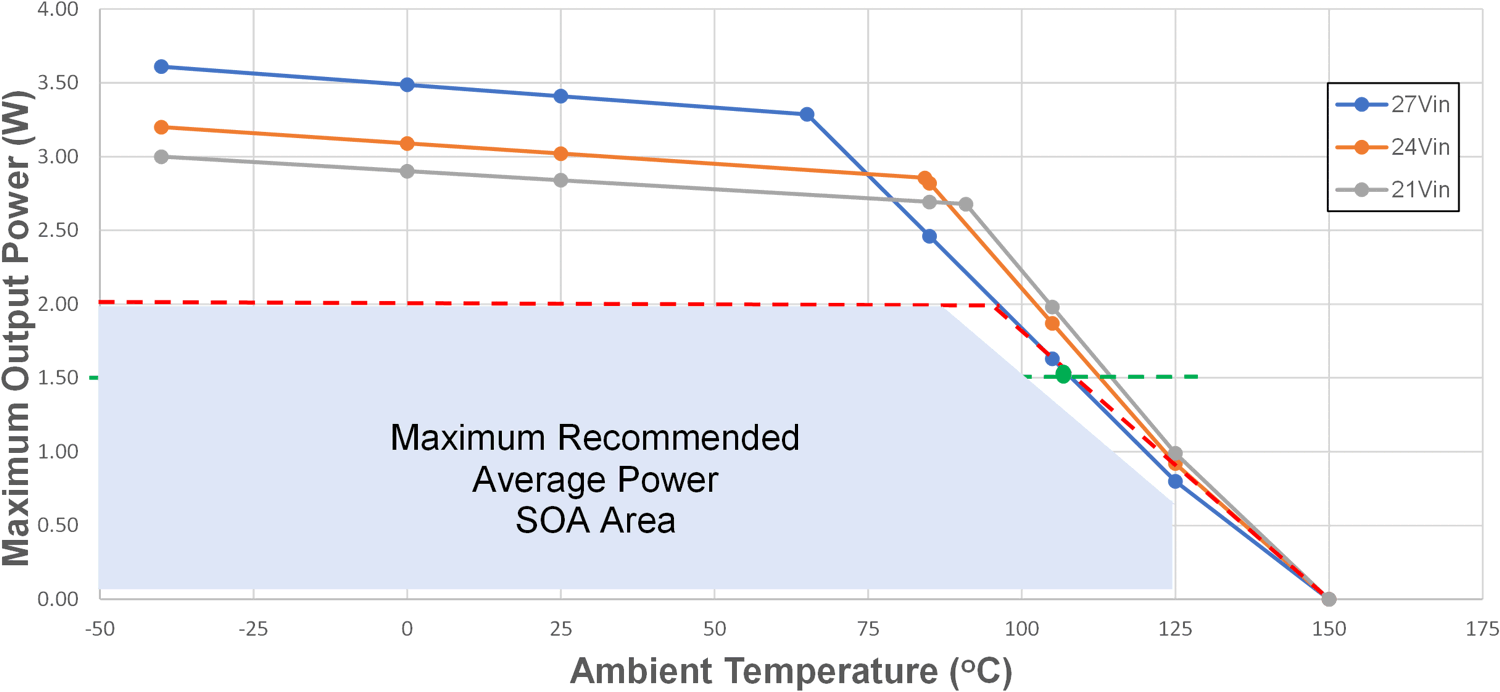

Figure 6-4 SOA Derating Curves: VVDD-VEE = 25 V,
VCOM-VEE = 5 V, No Load
Figure 6-3 SOA Derating Curves: VVDD-VEE = 20 V,
VCOM-VEE = 5 V, No Load

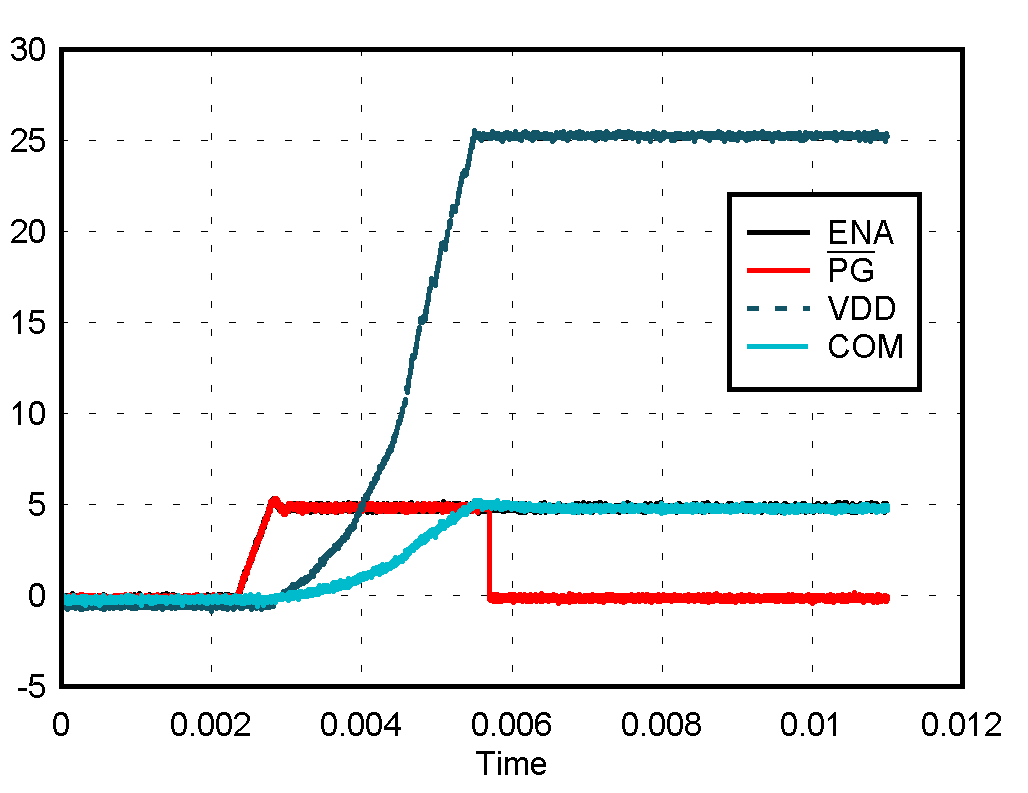

Figure 6-5 Start-up: VIN = 24 V, VVDD-VEE = 25 V, VCOM-VEE = 5
V, No Load

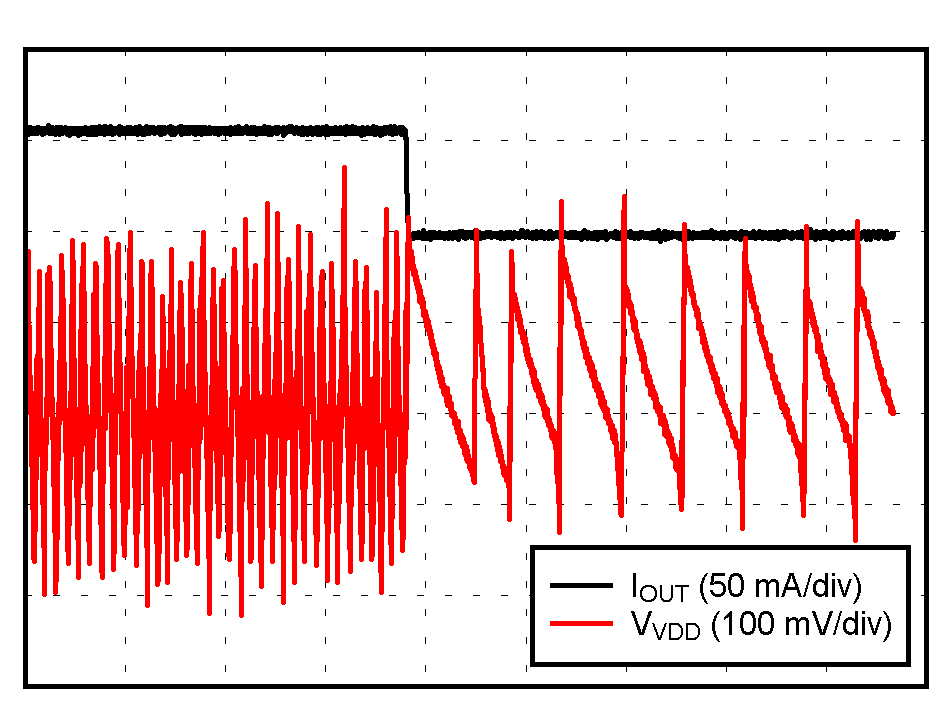

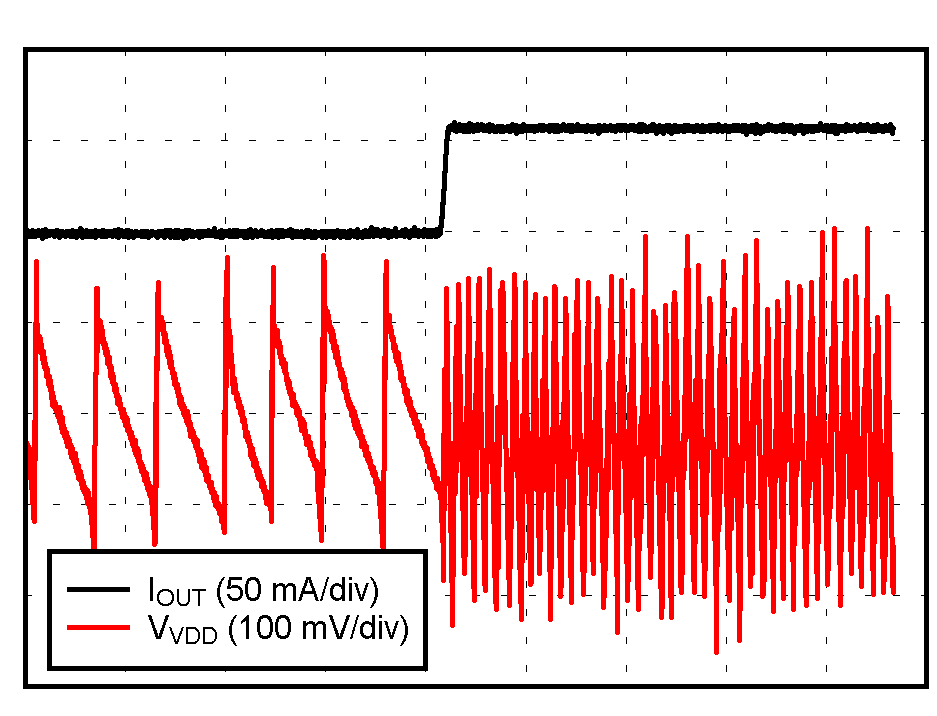

Figure 6-7 Load
Transient Response: No Load to 1 W, VIN = 24 V, VVDD-VEE = 25 V,
VCOM-VEE = 5 V

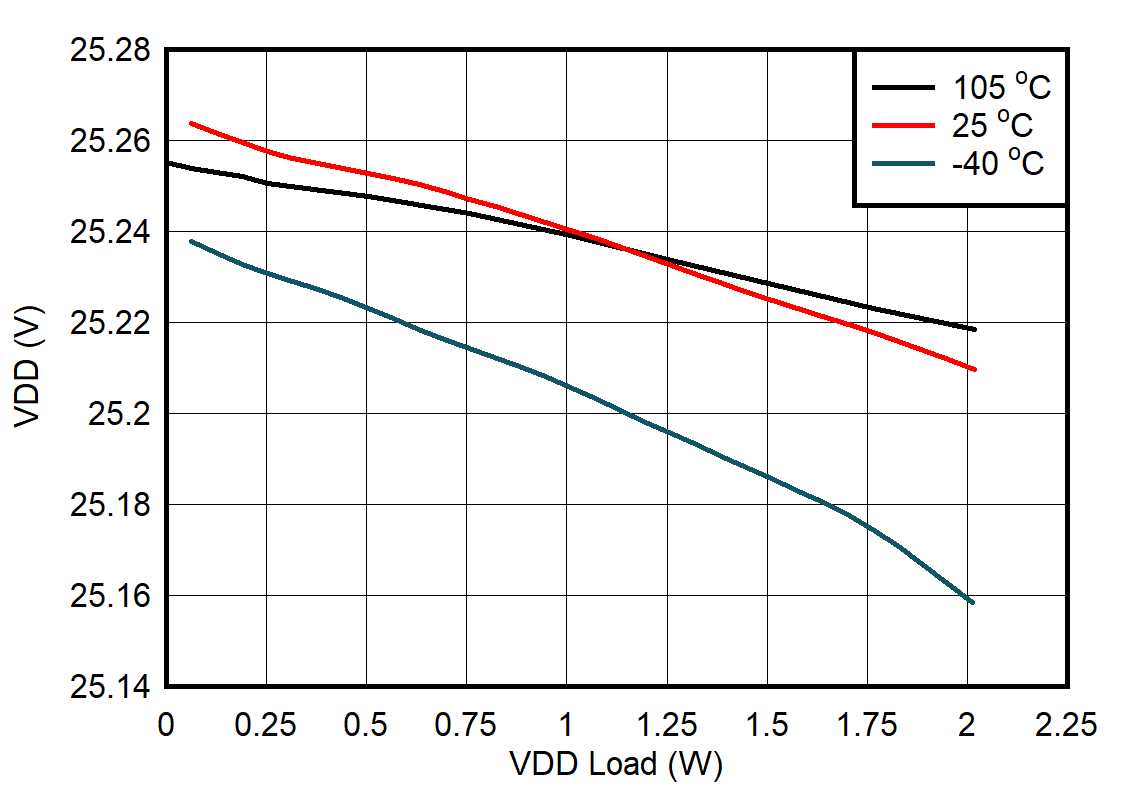

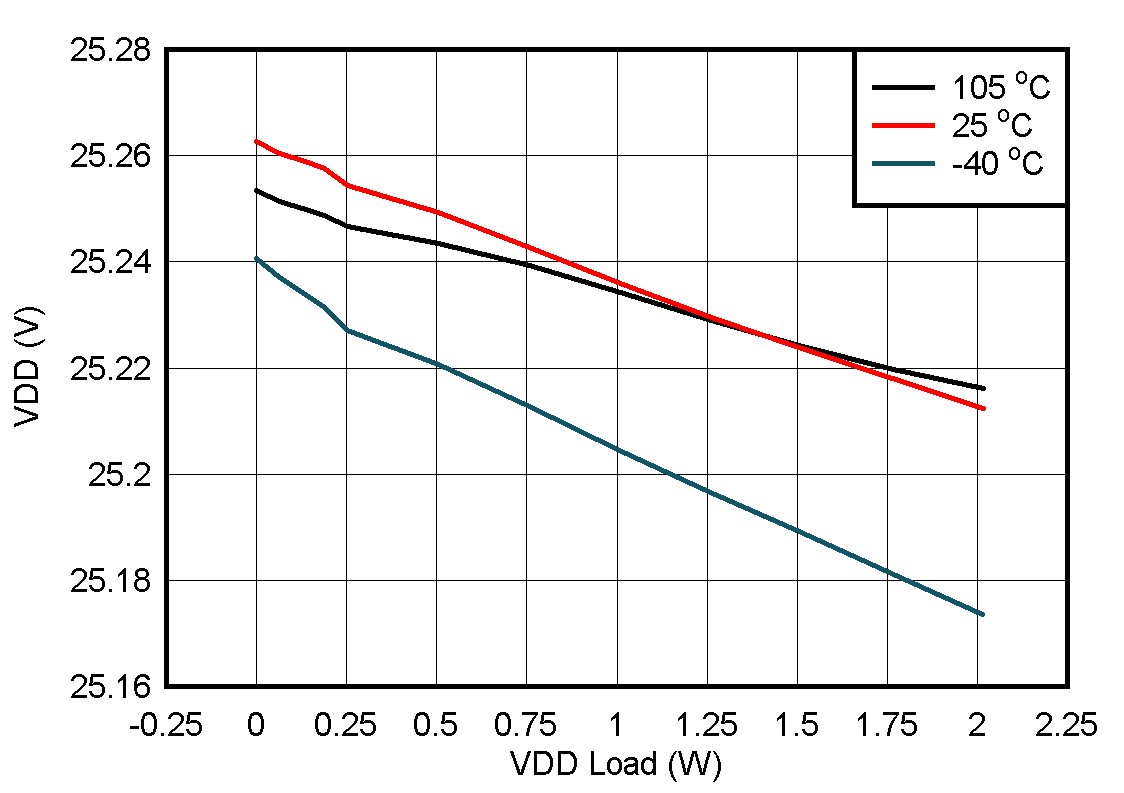

Figure 6-9 VVDD-VEE Load Regulation: VIN = 21 V, VVDD-VEE =
25 V, VCOM-VEE = 5 V
Figure 6-11 VVDD-VEE Load Regulation: VIN = 27 V, VVDD-VEE =
25 V, VCOM-VEE = 5 V

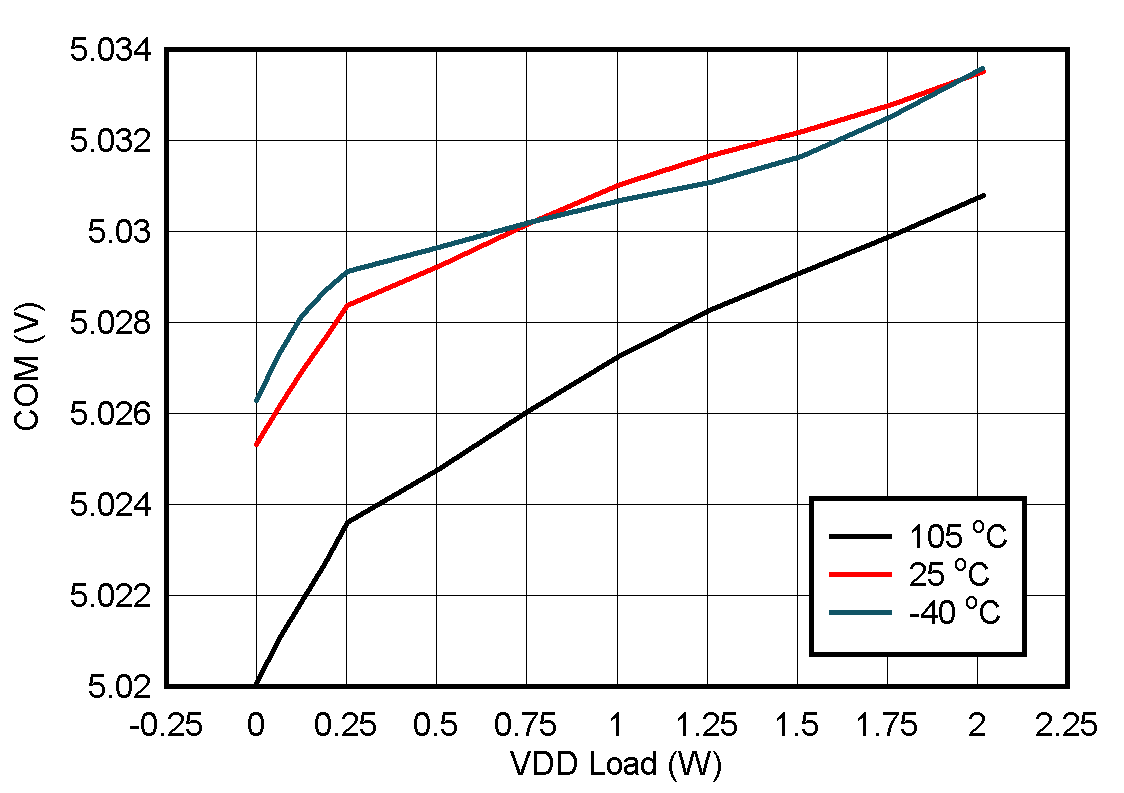

Figure 6-13 VCOM-VEE Load Regulation: VIN = 24 V, VVDD-VEE =
25 V, VCOM-VEE = 5 V

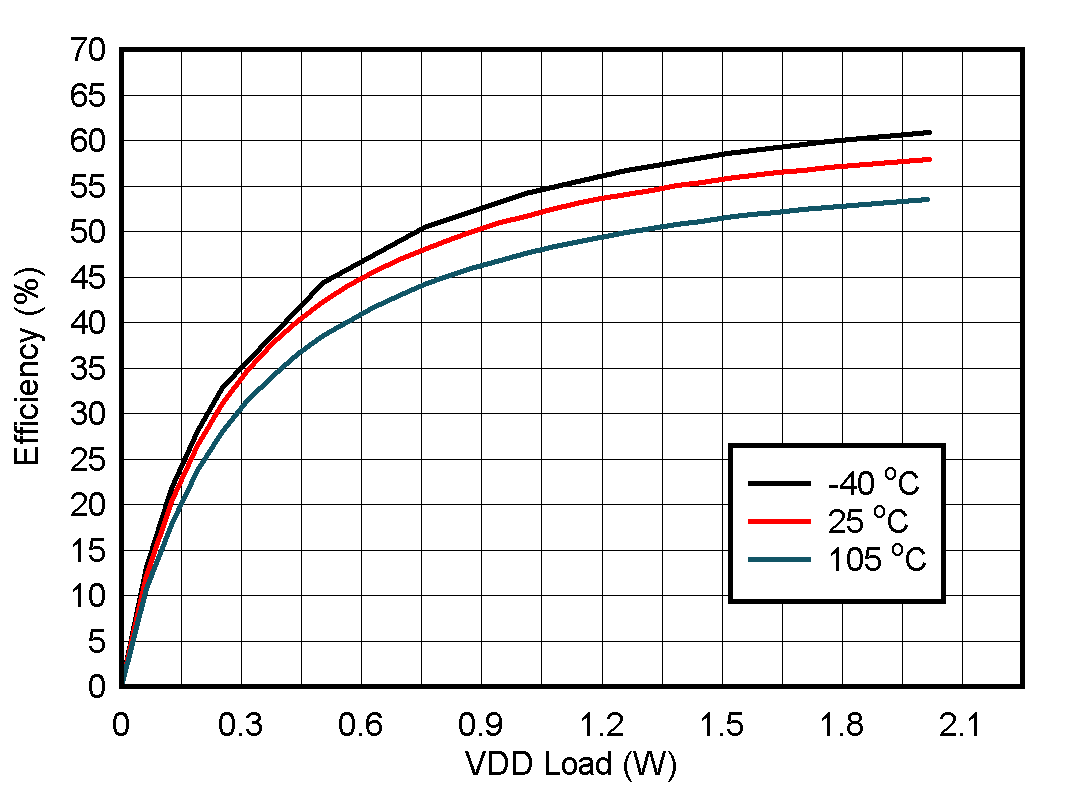

Figure 6-15 Efficiency vs Load on VVDD-VEE: VIN = 21 V, VVDD-VEE
= 25 V, VCOM-VEE = 5 V, No Load on VCOM-VEE
Figure 6-17 Efficiency vs Load on VVDD-VEE: VIN = 27 V, VVDD-VEE
= 25 V, VCOM-VEE = 5 V, No Load on VCOM-VEE

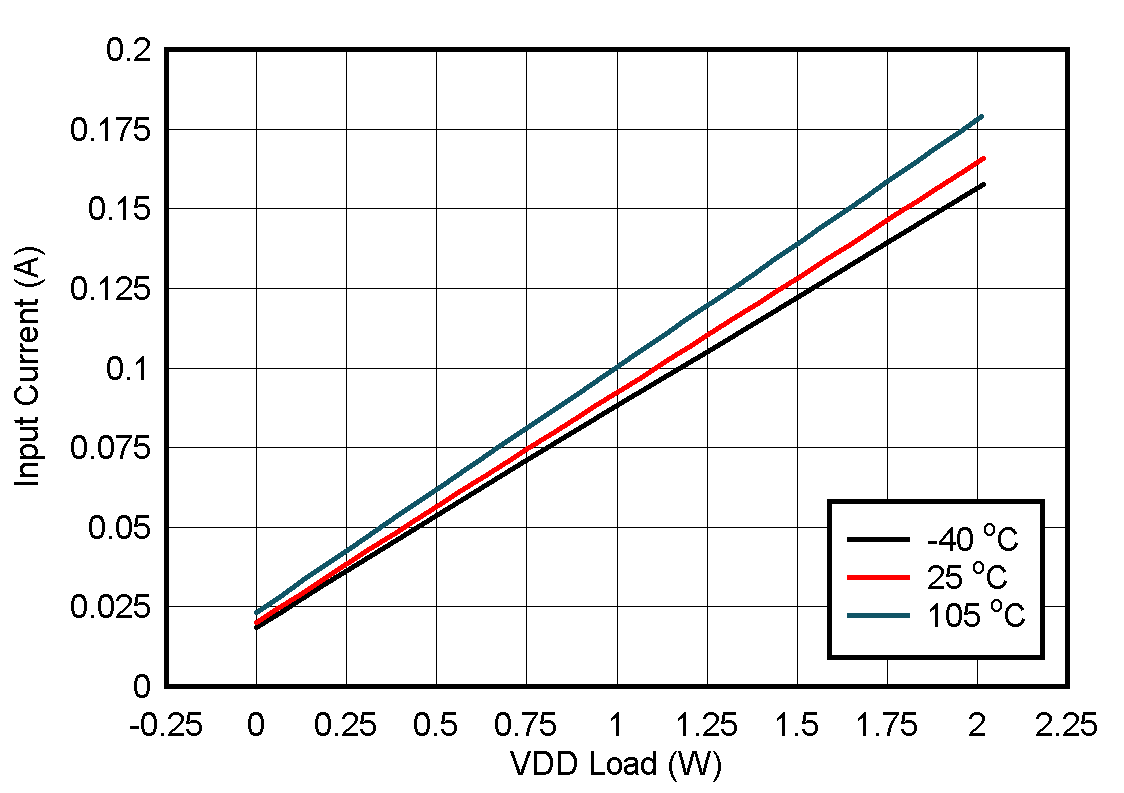

Figure 6-19 Input
Current vs Load on VVDD-VEE: VIN = 24 V, VVDD-VEE = 25
V, VCOM-VEE = 5 V, No Load on VCOM-VEE

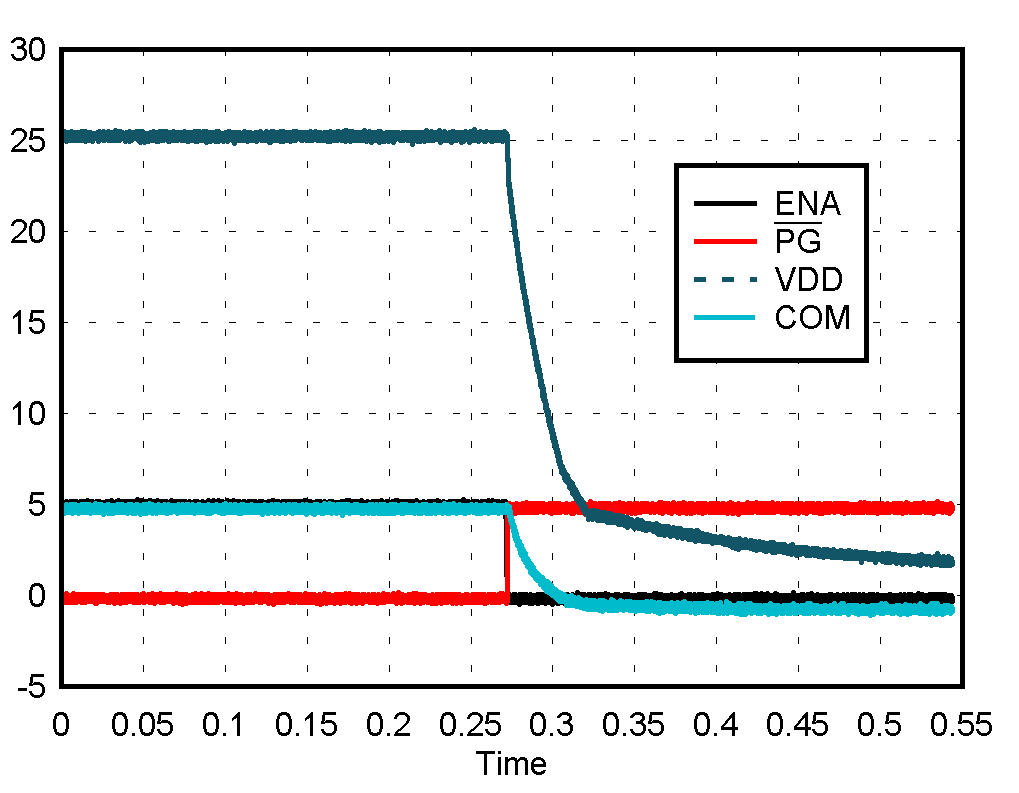

Figure 6-6 Shutdown: VIN = 24 V, VVDD-VEE = 25 V, VCOM-VEE = 5
V, No Load
Figure 6-8 Load
Transient Response: 1 W to No Load, VIN = 24 V, VVDD-VEE = 25 V,
VCOM-VEE = 5 V

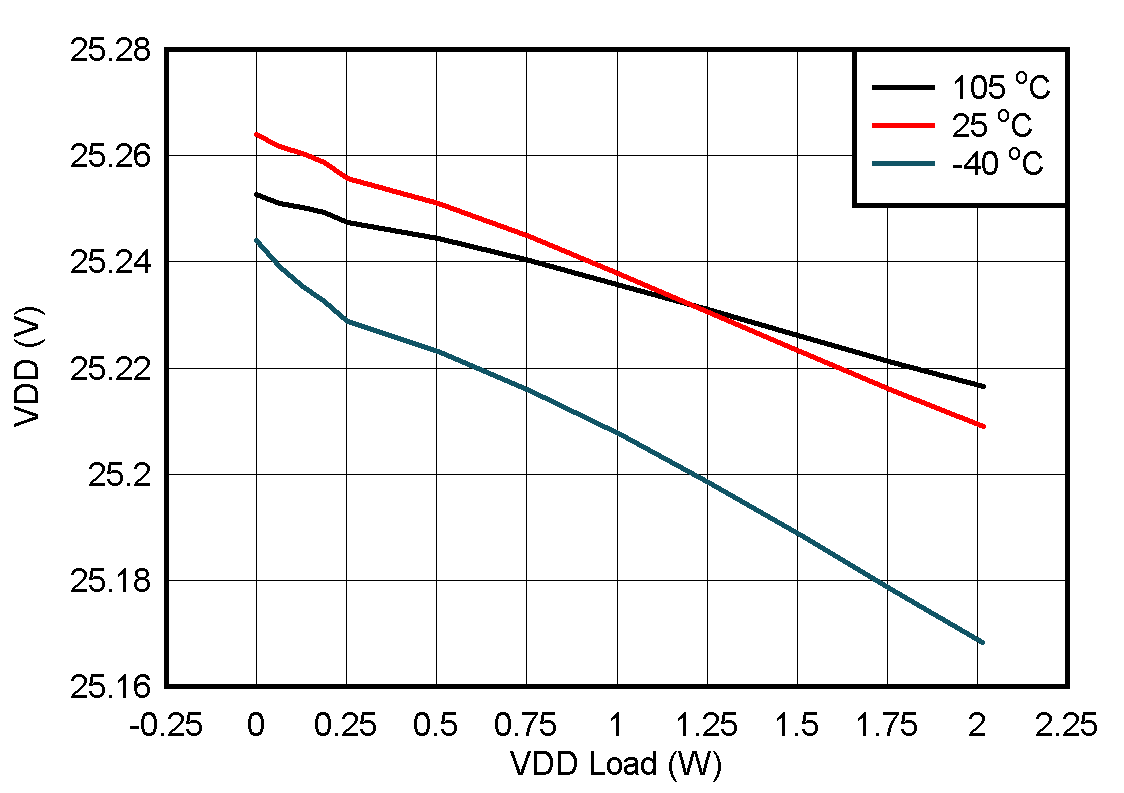

Figure 6-10 VVDD-VEE Load Regulation: VIN = 24 V, VVDD-VEE =
25 V, VCOM-VEE = 5 V
Figure 6-12 VCOM-VEE Load Regulation: VIN = 21 V, VVDD-VEE =
25 V, VCOM-VEE = 5 V
Figure 6-14 VCOM-VEE Load Regulation: VIN = 27 V, VVDD-VEE =
25 V, VCOM-VEE = 5 V

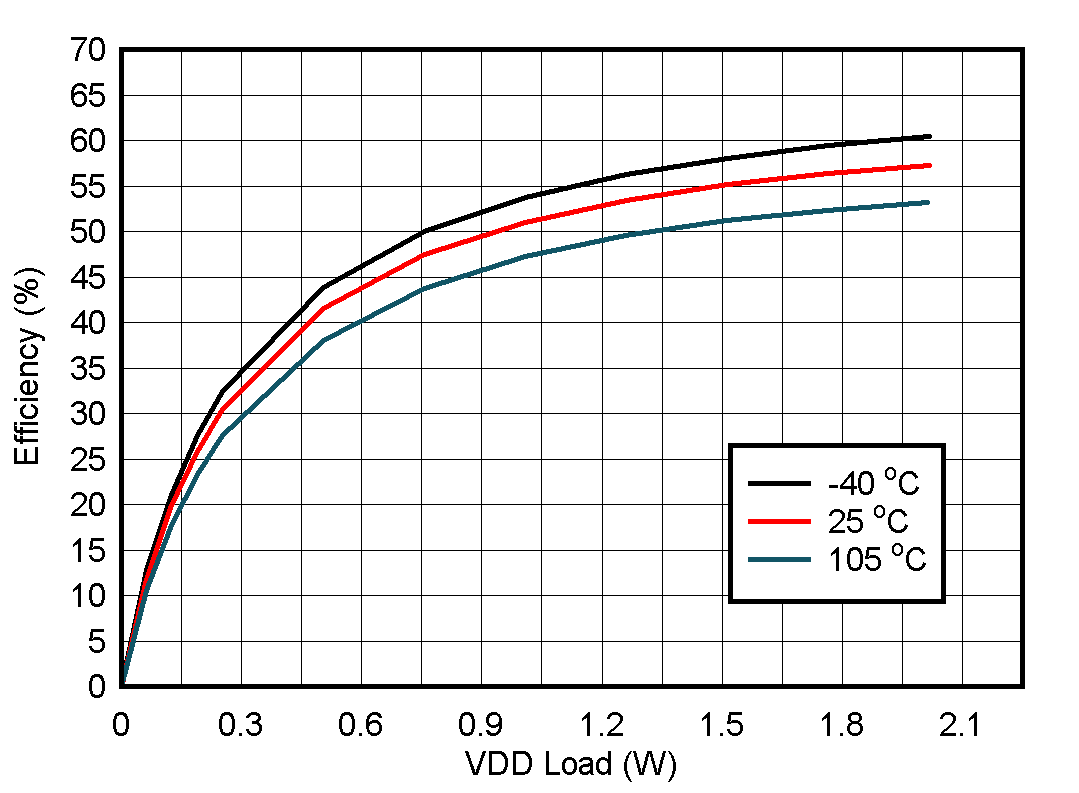

Figure 6-16 Efficiency vs Load on VVDD-VEE: VIN = 24 V, VVDD-VEE
= 25 V, VCOM-VEE = 5 V, No Load on VCOM-VEE
Figure 6-18 Input
Current vs Load on VVDD-VEE: VIN = 21 V, VVDD-VEE = 25
V, VCOM-VEE = 5 V, No Load on VCOM-VEE
Figure 6-20 Input
Current vs Load on VVDD-VEE: VIN = 27 V, VVDD-VEE = 25
V, VCOM-VEE = 5 V, No Load on VCOM-VEE
