8.3 Application Curves

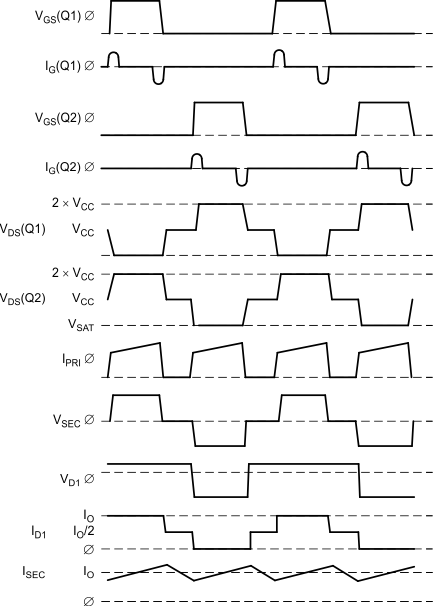

Figure 8-5 Basic Push-Pull Waveforms

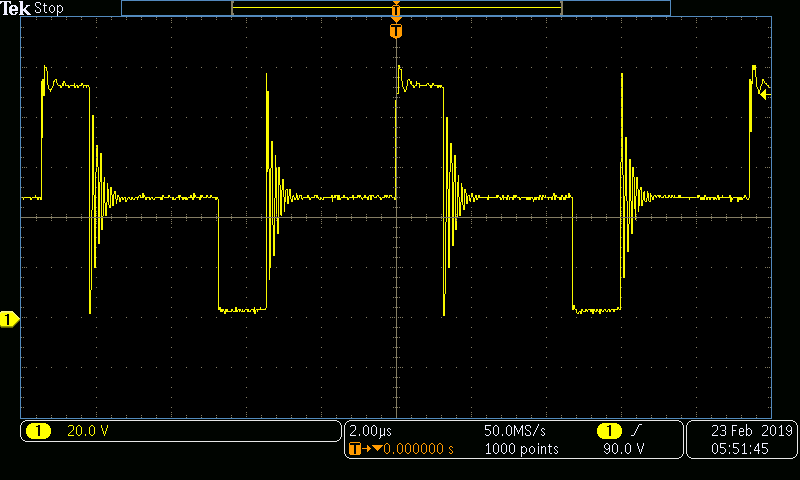

Figure 8-6 Voltage Stress Across Main Switching MOSFETS Q1 and Q2The test in Figure 8-6 was done with 48-V input and a 10-A output load.

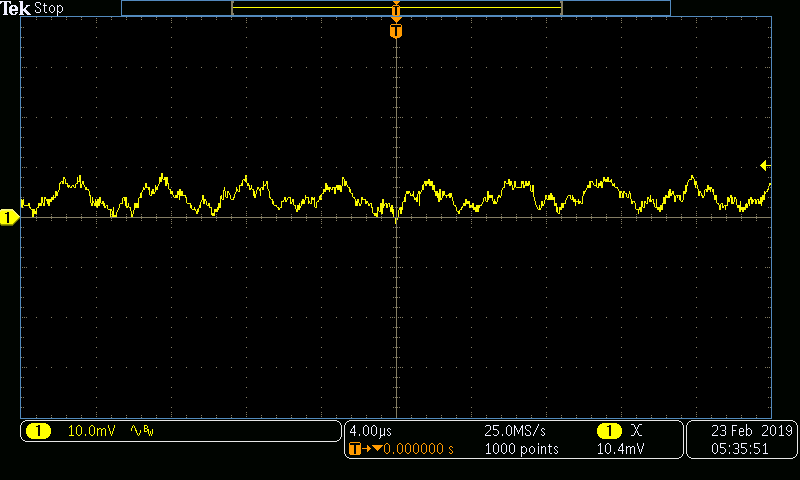

Figure 8-7 Output Voltage Ripple With 48
VINOutput voltage ripple test in Figure 8-7 was done with 48-V input and 10-A output current.

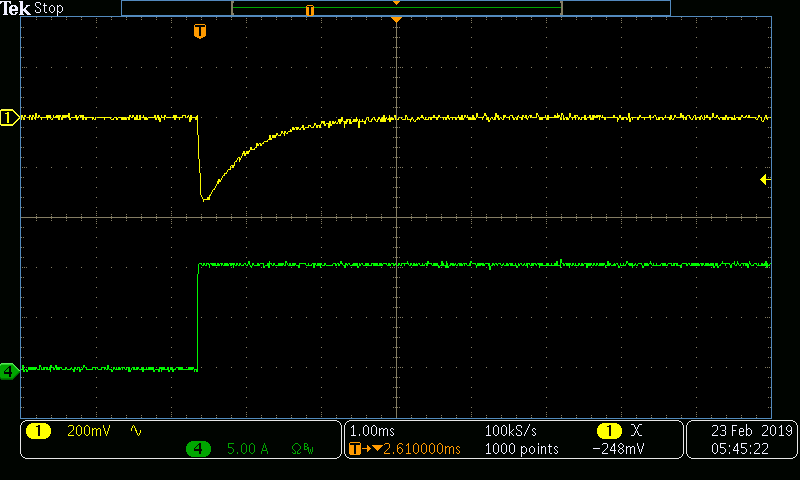

Figure 8-8 Full Output Voltage Transient With 48
VINFull step up transient in Figure 8-8 was done with 48-V input and output current was stepped from 0 A to 10 A.
