8.4.6 Operation Timing – Power Up

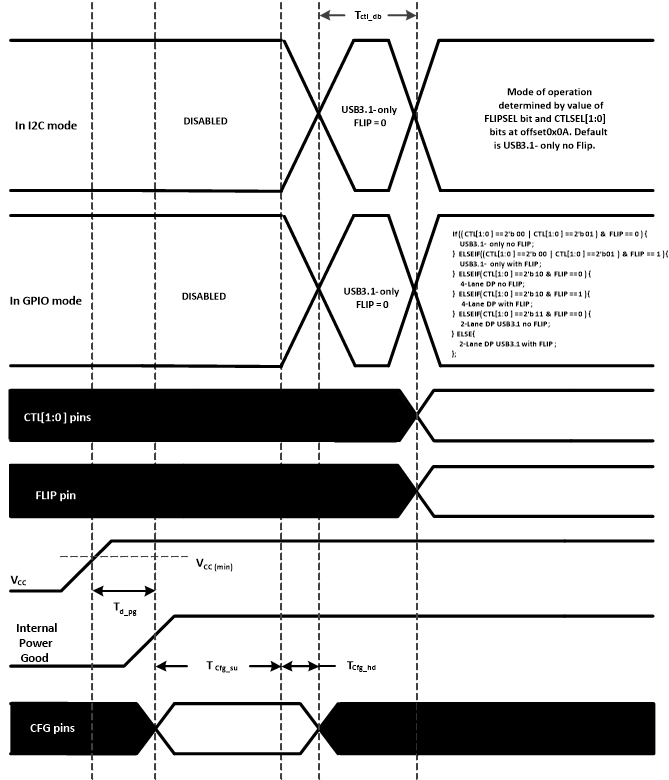

Figure 8-1 Power-Up TimingTable 8-8 Power-Up Timing(1)(2)
| PARAMETER | MIN | MAX | UNIT | |
|---|---|---|---|---|
| td_pg | VCC (minimum) to Internal Power Good asserted high | 500 | μs | |
| tcfg_su | CFG(1) pins setup(2) | 50 | μs | |
| tcfg_hd | CFG(1) pins hold | 10 | μs | |
| tCTL_DB | CTL[1:0] and FLIP pin debounce | 16 | ms | |
| tVCC_RAMP | VCC supply ramp requirement | 0.1 | 100 | ms |
(1) Following pins comprise CFG pins: I2C_EN, EQ[1:0], SSEQ[1:0], and DPEQ[1:0].
(2) Recommend CFG pins are stable when VCC is at minimum value.
