9.3.3 DisplayPort Only
The TUSB546A-DCI operates in 4 Lanes of DisplayPort only mode when the CTL1 pin is high and CTL0 pin is low.

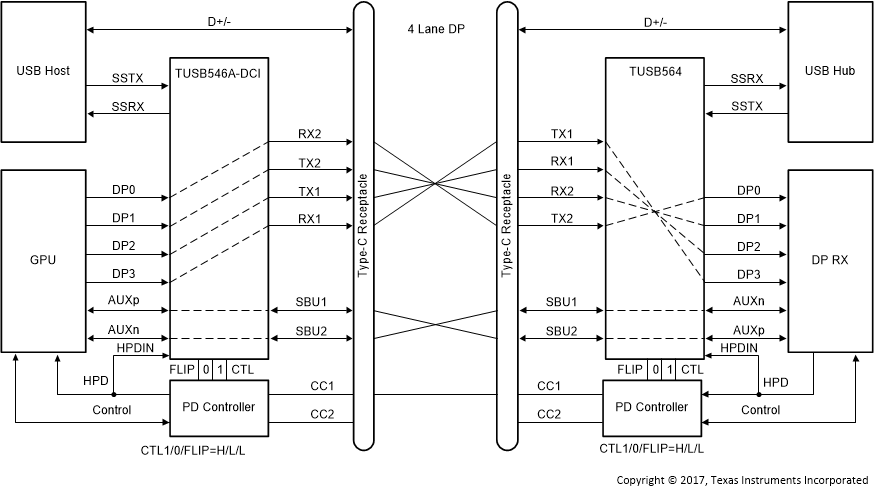

Figure 34. Four Lane DP – No Flip (CTL1 = H, CTL0 = L, FLIP = L)

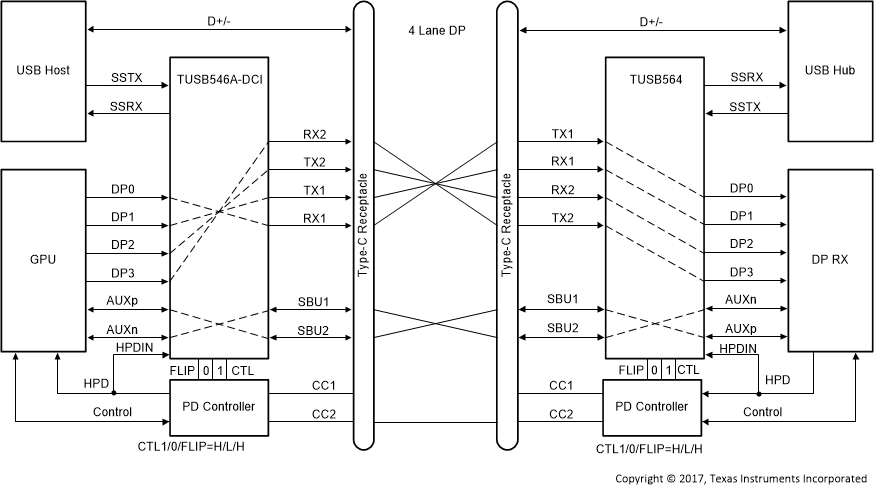

Figure 35. Four Lane DP – With Flip (CTL1 = H, CTL0 = L, FLIP = H)
