7 Parameter Measurement Information

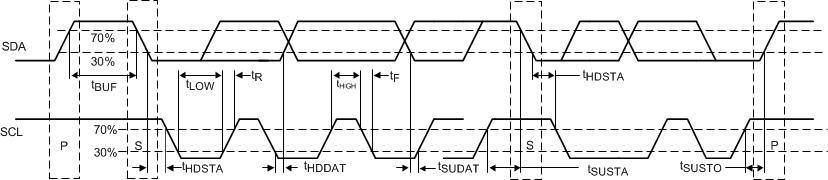

Figure 17. I2C Timing Diagram Definitions
Figure 18. USB3.1 to 4-Lane DisplayPort in GPIO Mode

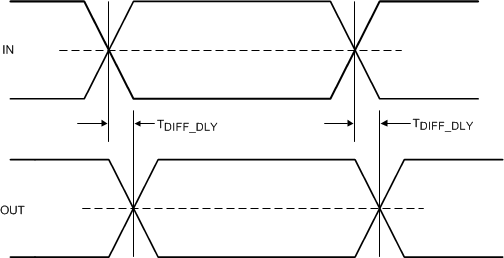

Figure 19. Propagation Delay

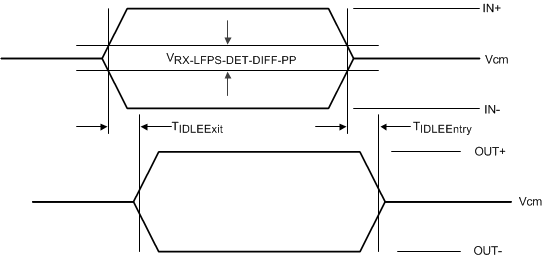

Figure 20. Electrical Idle Mode Exit and Entry Delay

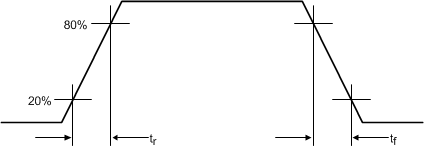

Figure 21. Output Rise and Fall Times

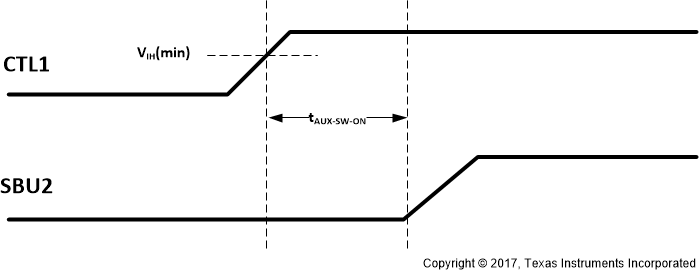

Figure 22. AUX to SBU Switch ON Timing Diagram

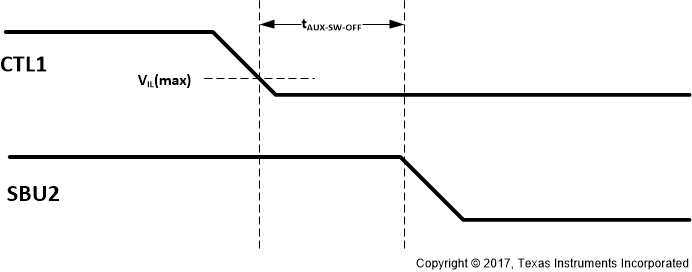

Figure 23. AUX to SBU Switch OFF Timing Diagram

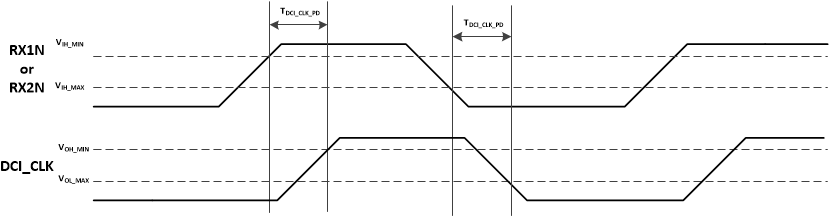

Figure 24. DCI Clock Propagation Delay

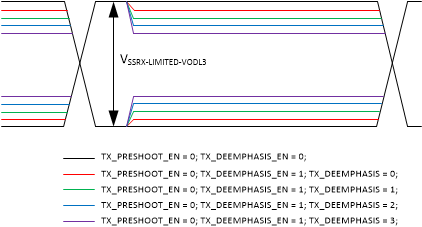

Figure 25. SSRX Limited De-emphasis Only

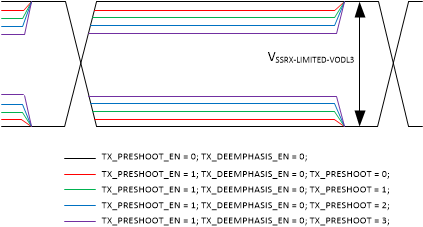

Figure 26. SSRX Limited Pre-Shoot Only
Figure 27. Power-On Timing
