Figure 6-1, Figure 6-2, Figure 6-3 and Figure 6-4 show typical high speed performance plots for TS3DV642-Q1 in TI evaluation board with measurement parasitics calibrated out.

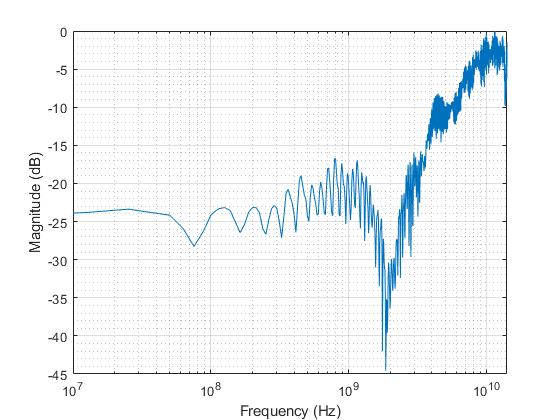

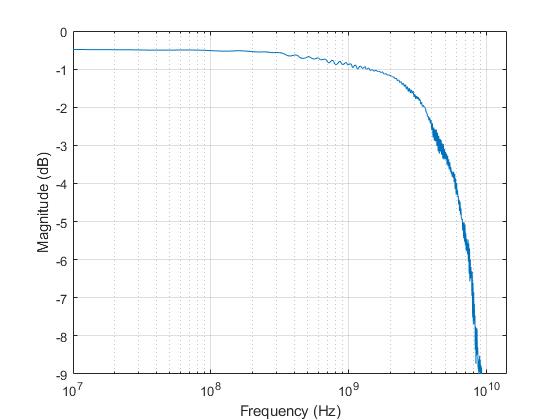

Figure 6-1 Typical differential gain vs frequency	Figure 6-2 Typical return loss vs frequency

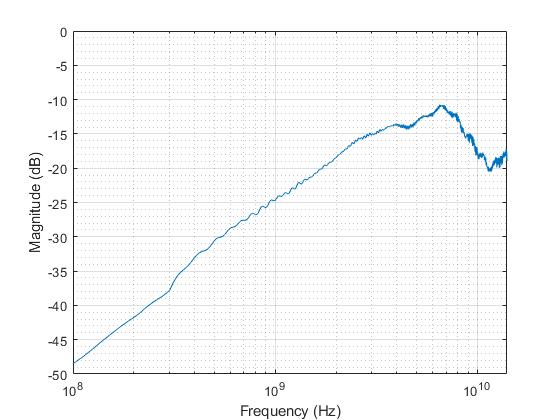

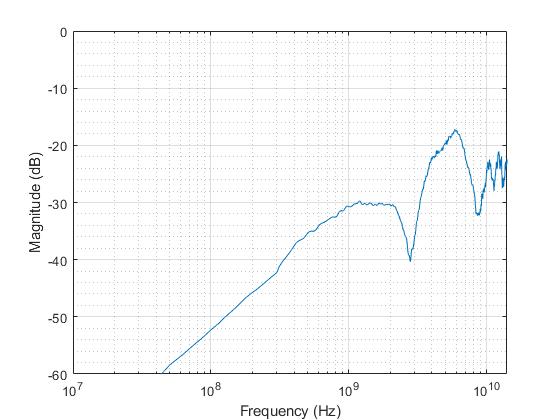

Figure 6-3 Typical differential cross-talk vs frequency	Figure 6-4 Typical differential off-isolation vs frequency

Figure 6-5 illustrates eye diagrams at 3.4 Gbps with jitter decomposion shown. As illustrated added total jitter contribution by the TS3DV642-Q1 is minimal - 17 ps and 16 ps through the TS3DV642-Q1 Port A and Port B respectively versus 13 ps through baseline calibration setup without a DUT.

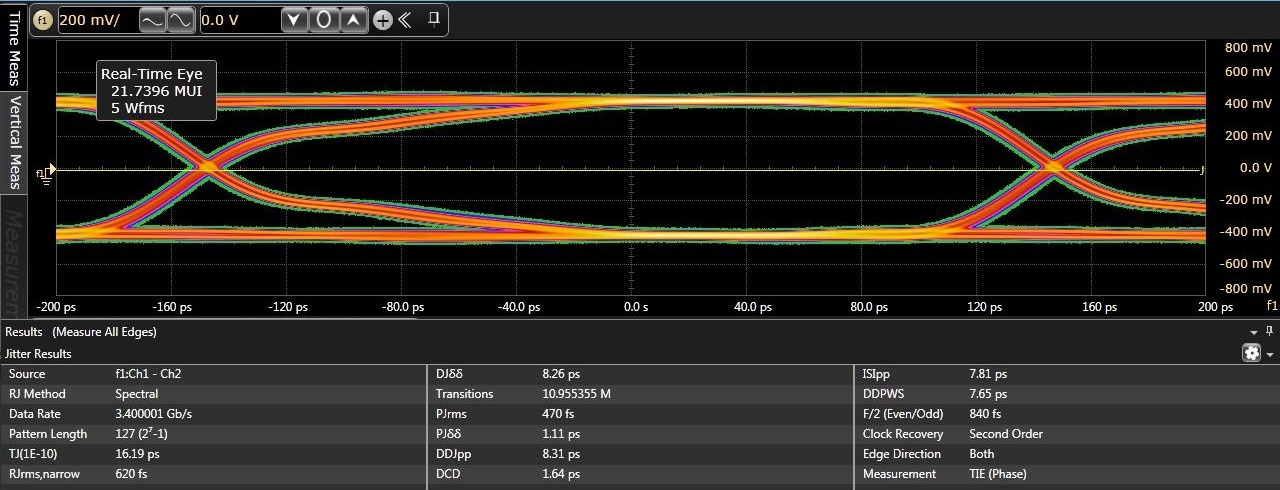

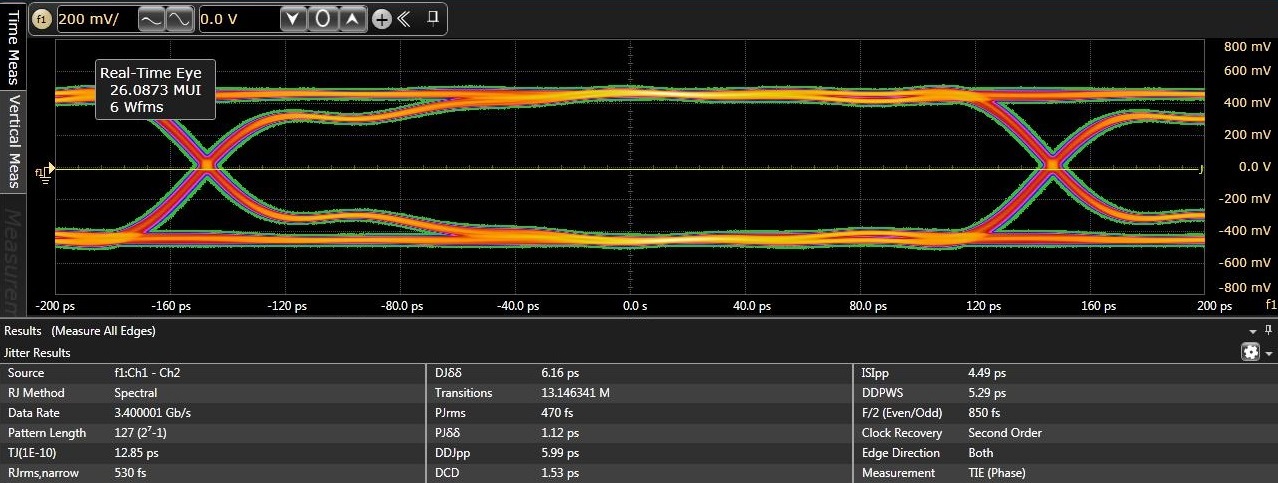

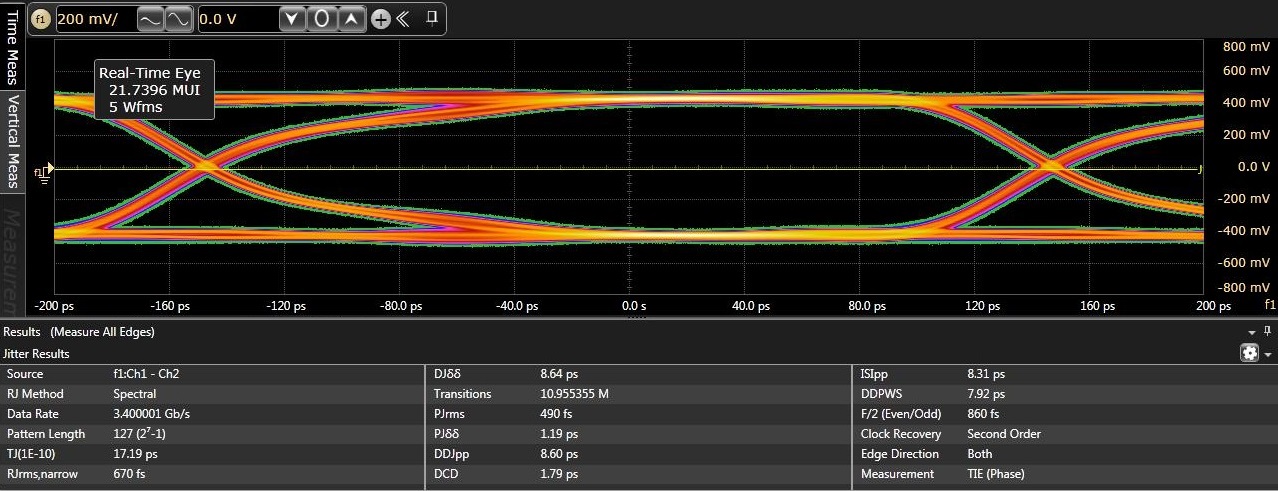

Figure 6-5 Typical eye diagrams at 3.4 Gbps. Top: baseline calibration setup. Middle: through TS3DV642-Q1 Port A. Bottom: through TS3DV642-Q1 Port B.

Figure 6-6 illustrates eye diagrams at 6.0 Gbps with jitter decomposition shown. As illustrated added total jitter contribution by the TS3DV642-Q1 is minimal - 20 ps and 17 ps through the TS3DV642-Q1 Port A and Port B respectively versus 12 ps through baseline calibration setup without a DUT.

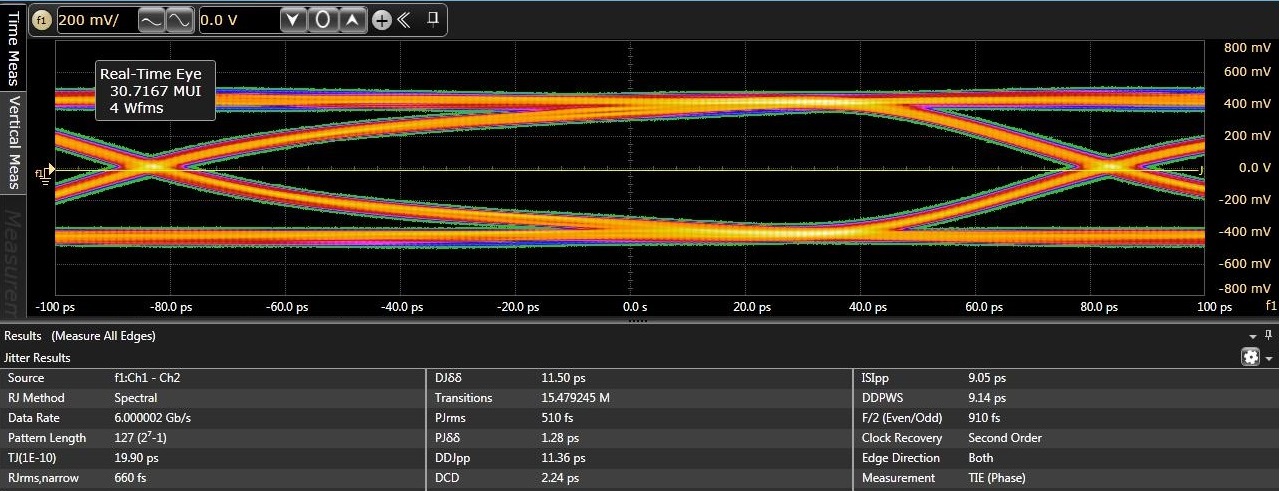

Figure 6-6 Typical eye diagrams at 6.0 Gbps. Top: baseline calibration setup. Middle: through TS3DV642-Q1 Port A. Bottom: through TS3DV642-Q1 Port B.
