9.4 Systems Examples
TS3DV642-Q1 can be used for many high speed interfaces. Figure 9-5, Figure 9-6, Figure 9-7, and Figure 9-8 show some system level examples for select few interfaces. Note for brevity exact detail design implementation is not shown.

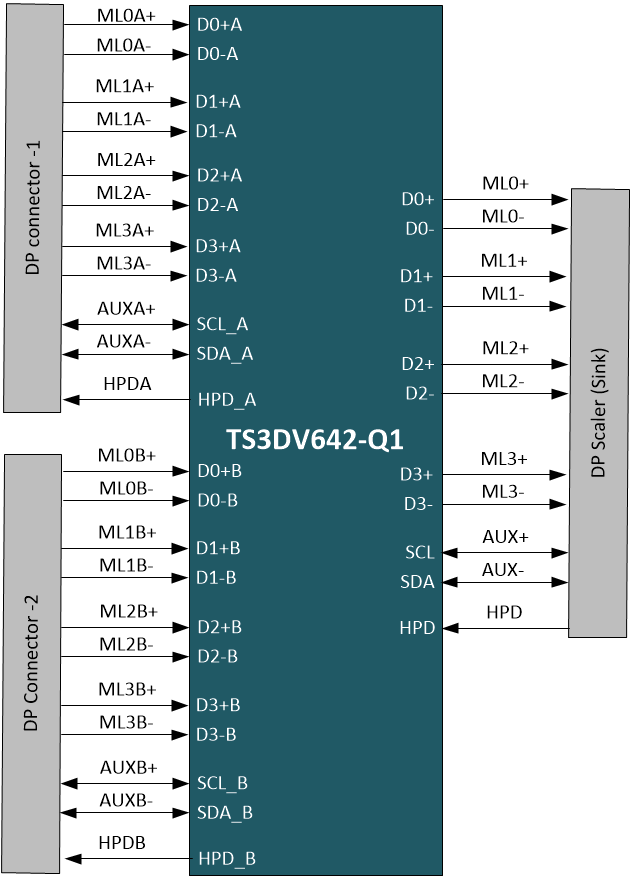

Figure 9-5 DisplayPort 2:1 switching |

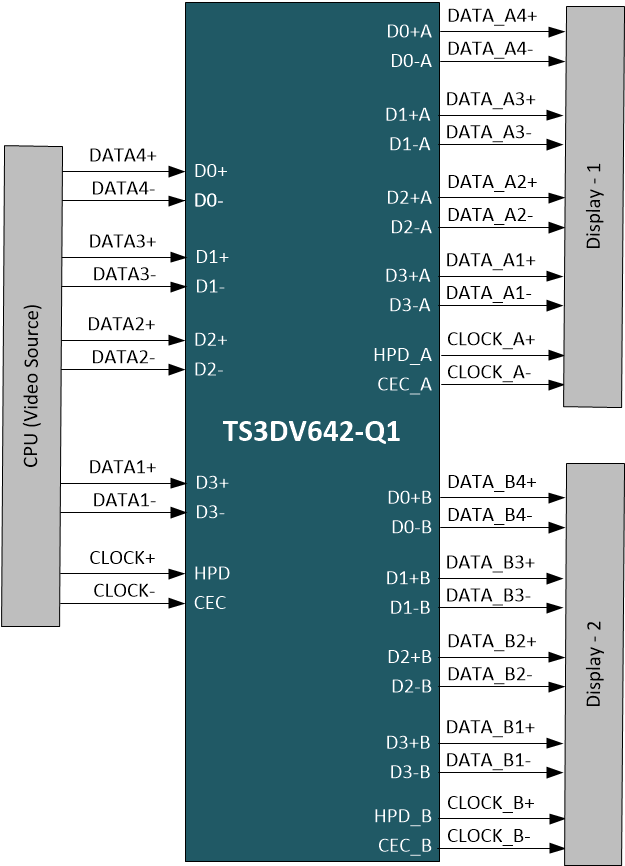

Figure 9-6 Mipi DPHY
based CSI-2 switching |

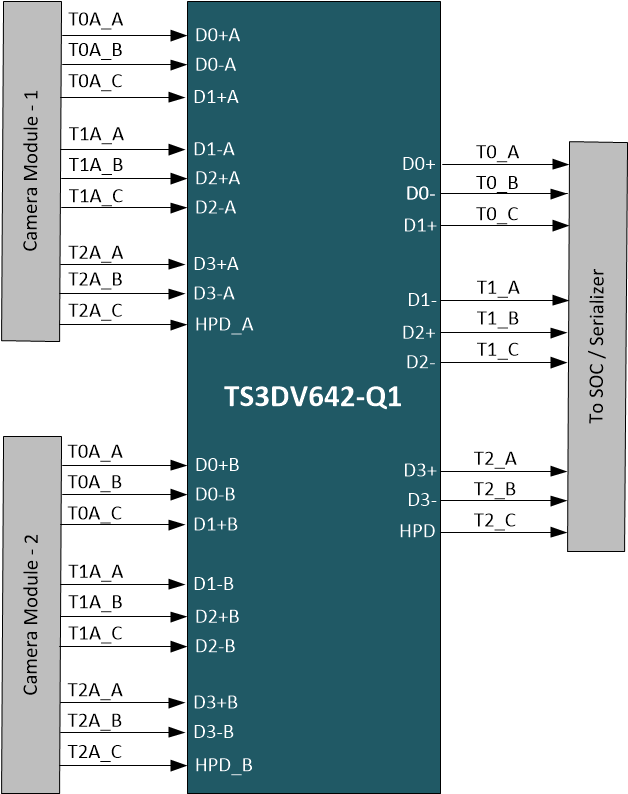

Figure 9-7 Mipi CPHY
based CSI-2 switching |

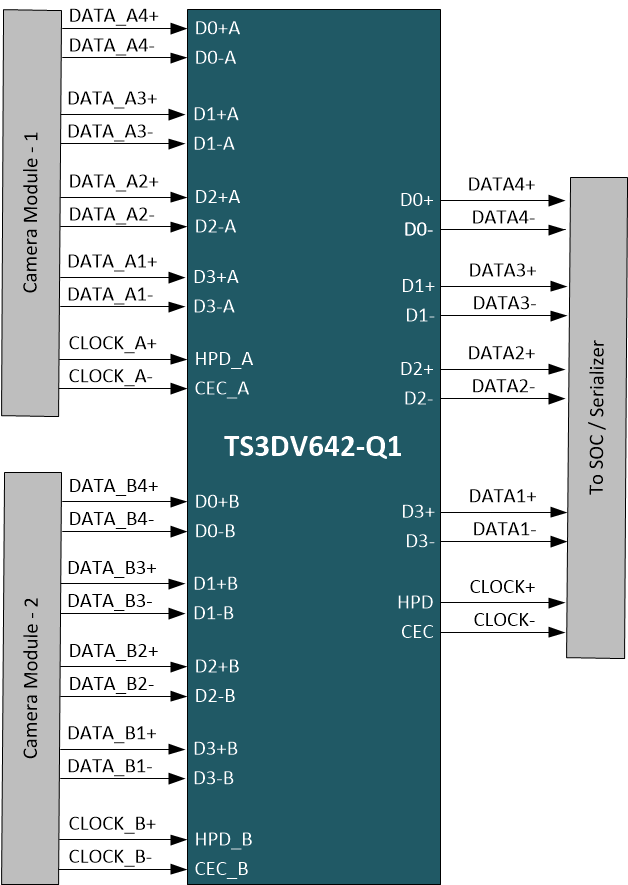

Figure 9-8 Mipi DPHY
based DSI switching |
