5 Pin Configuration and Functions

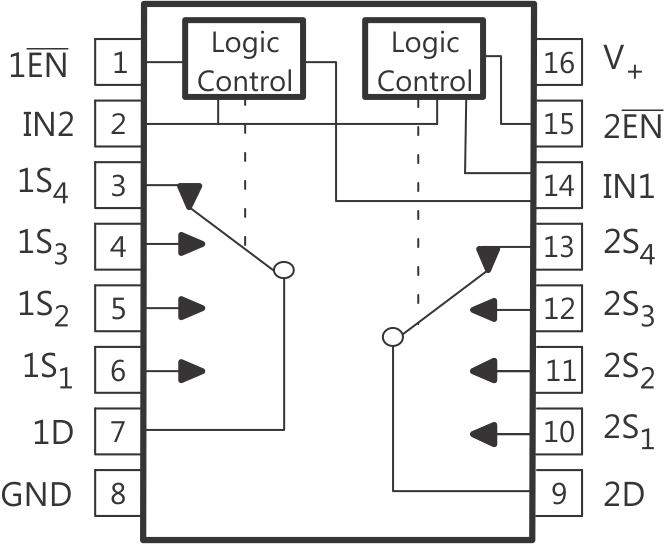

D, DBQ, DGV, and PW Package
16-Pin SOIC, SSOP, TVSOP and TSSOP
(Top View)

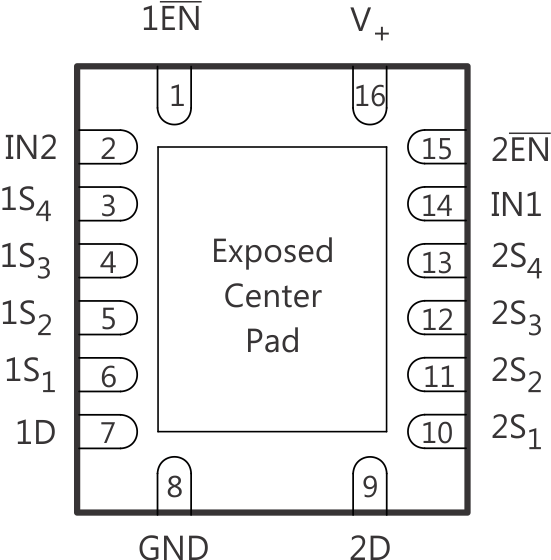

RGY Package
16-Pin VQFN
(Top View)
If exposed center pad is used, it must be connected as a secondary ground or left electrically open.

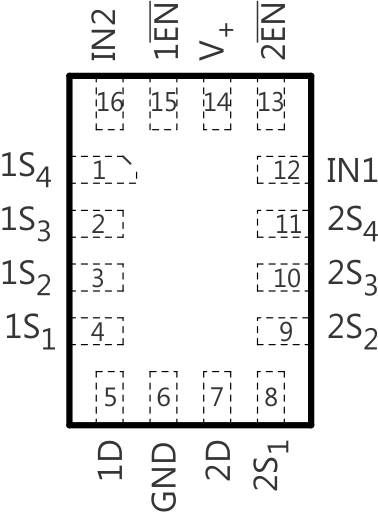

RSV Package
16-Pin UQFN
(Top View)
Pin Functions
| PIN | TYPE | DESCRIPTION | ||
|---|---|---|---|---|
| NAME | SOIC, SSOP, TVSOP, TSSOP, VQFN NO. | UQFN NO. | ||
| 1D | 7 | 5 | I/O | Common path for switch 1 |
| 1EN | 1 | 15 | I | Active-low enable for switch 1 |
| 1S1 | 6 | 4 | I/O | Switch 1 channel 1 |
| 1S2 | 5 | 3 | I/O | Switch 1 channel 2 |
| 1S3 | 4 | 2 | I/O | Switch 1 channel 3 |
| 1S4 | 3 | 1 | I/O | Switch 1 channel 4 |
| 2D | 9 | 7 | I/O | Common path for switch 2 |
| 2EN | 15 | 13 | I | Active-low enable for switch 2 |
| 2S1 | 10 | 8 | I/O | Switch 2 channel 1 |
| 2S2 | 11 | 9 | I/O | Switch 2 channel 2 |
| 2S3 | 12 | 10 | I/O | Switch 2 channel 3 |
| 2S4 | 13 | 11 | I/O | Switch 2 channel 4 |
| GND | 8 | 6 | – | Ground |
| IN1 | 14 | 12 | I | Switch 1 input select |
| IN2 | 2 | 16 | I | Switch 2 input select |
| V+ | 16 | 14 | – | Supply voltage |
