7 Parameter Measurement Information

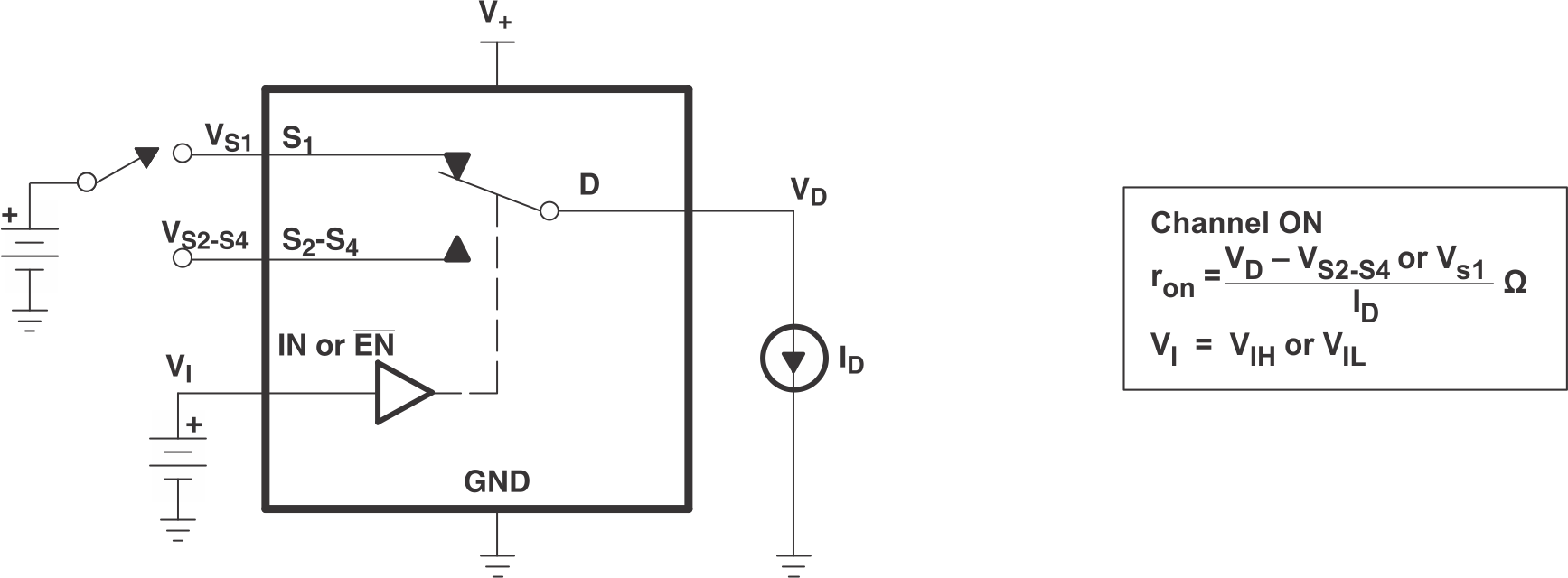

Figure 12. ON-State Resistance (ron)

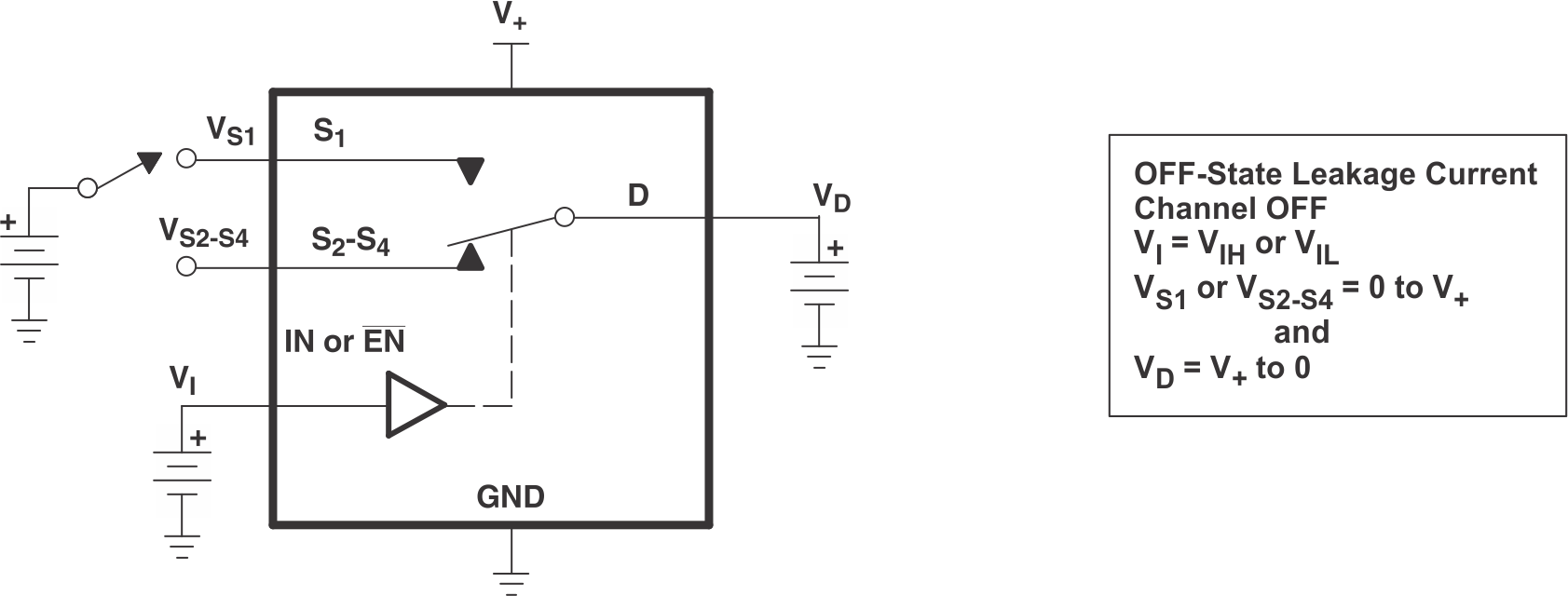

Figure 13. OFF-State Leakage Current (ID(OFF), IS(OFF))

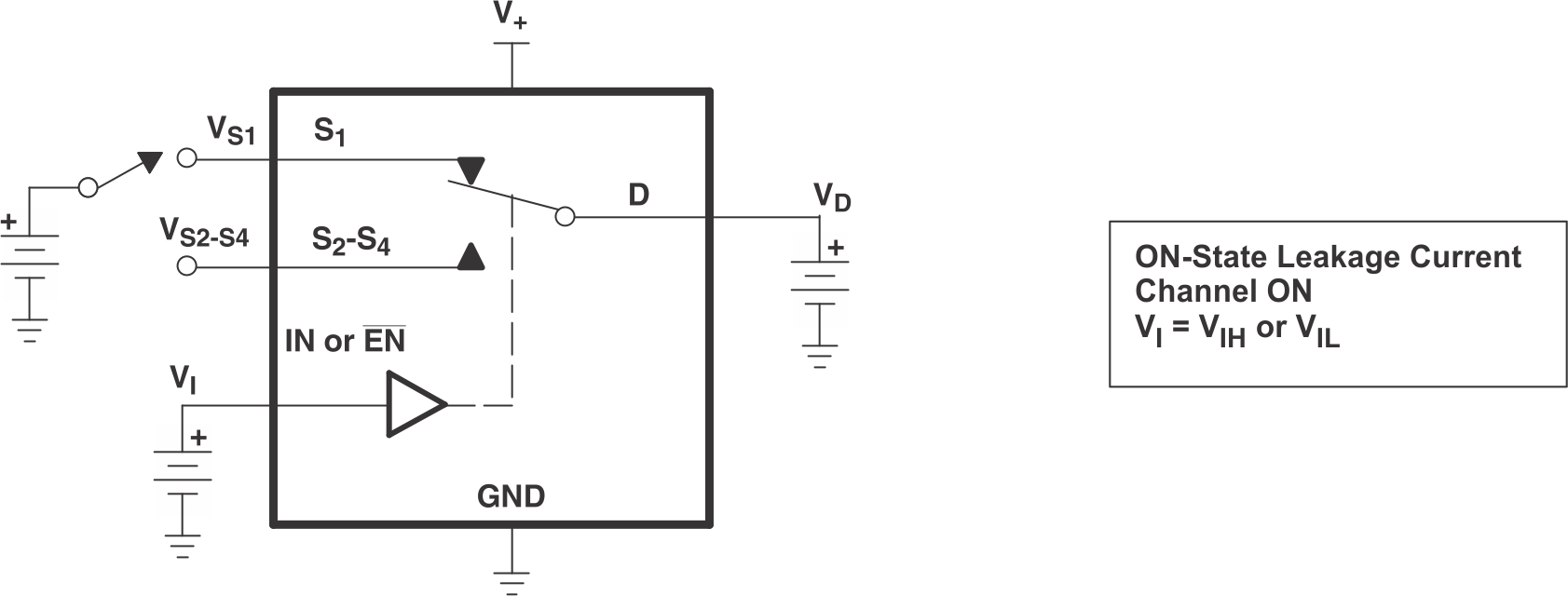

Figure 14. ON-State Leakage Current (ID(ON), IS(ON))
Figure 15. Capacitance (CI, CD(OFF), CD(ON), CS(OFF), CS(ON))
A. All input pulses are supplied by generators having the following characteristics:
PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
B. CL includes probe and jig capacitance.
C. See Electrical Characteristics for VD.

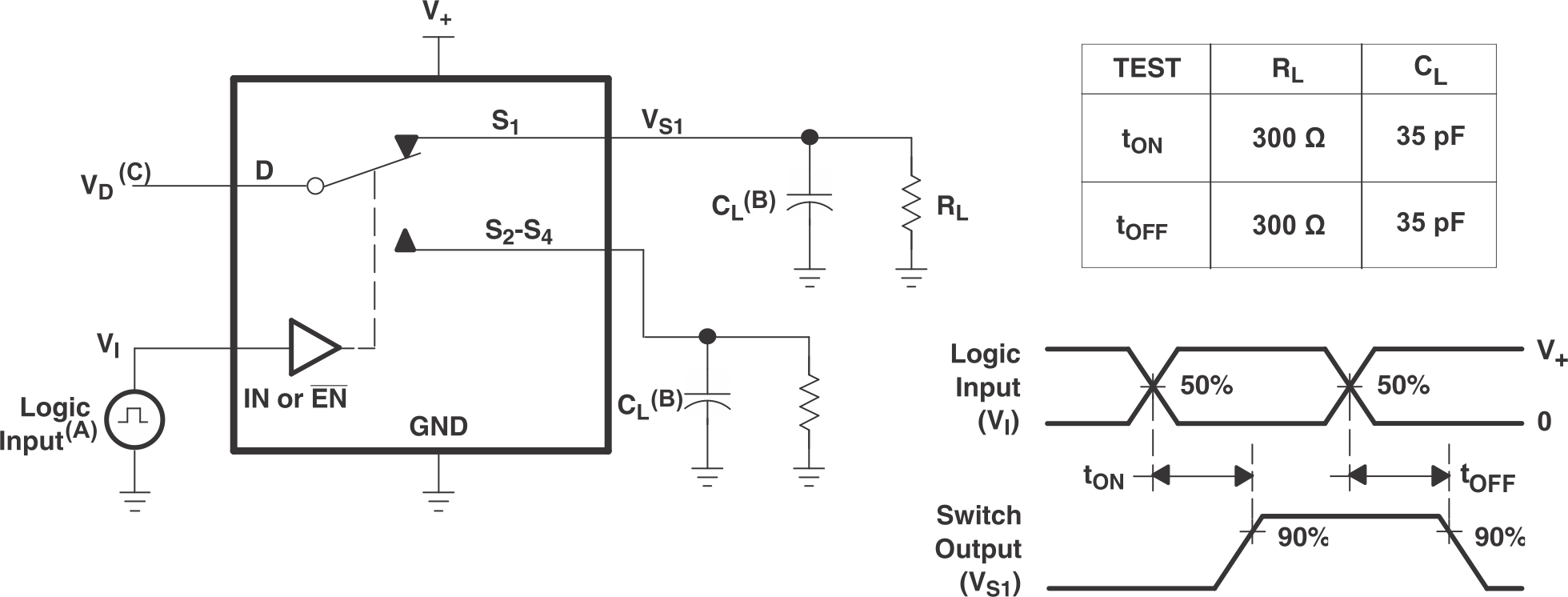

Figure 16. Turnon (tON) and Turnoff Time (tOFF)

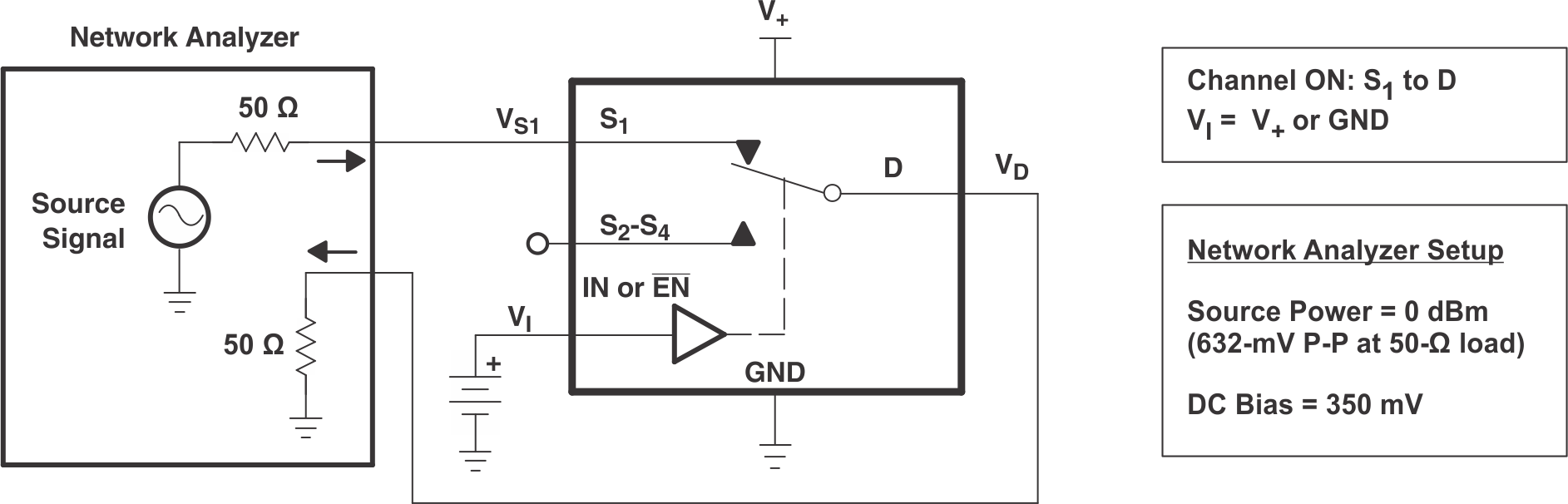

Figure 17. Bandwidth (BW)

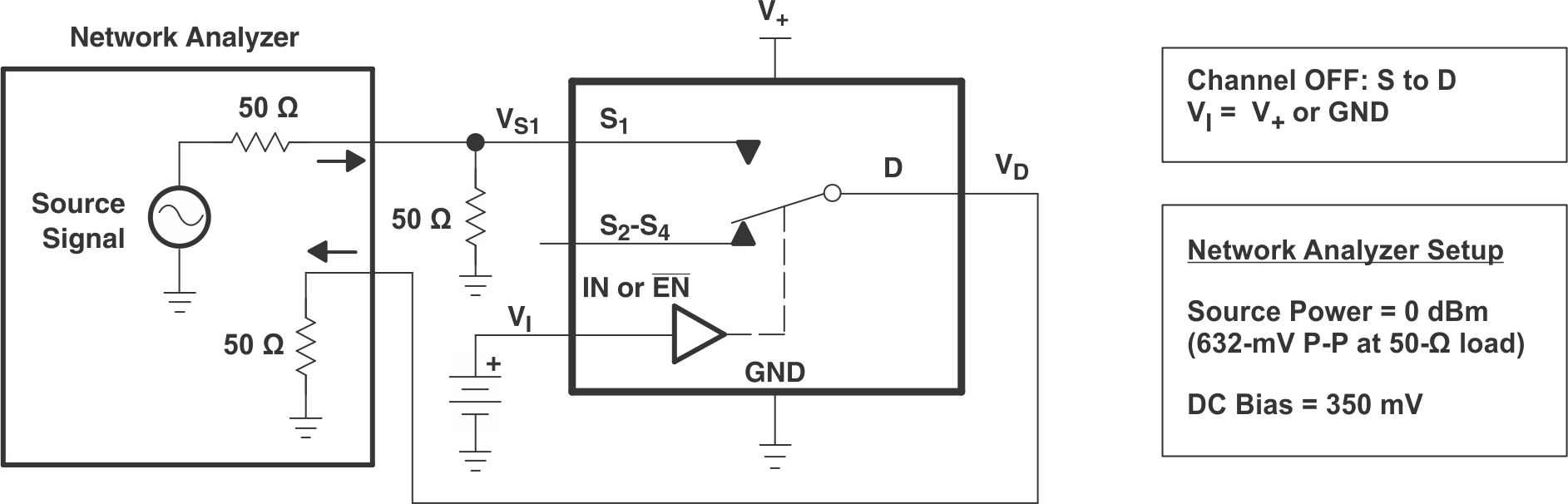

Figure 18. OFF Isolation (OISO)

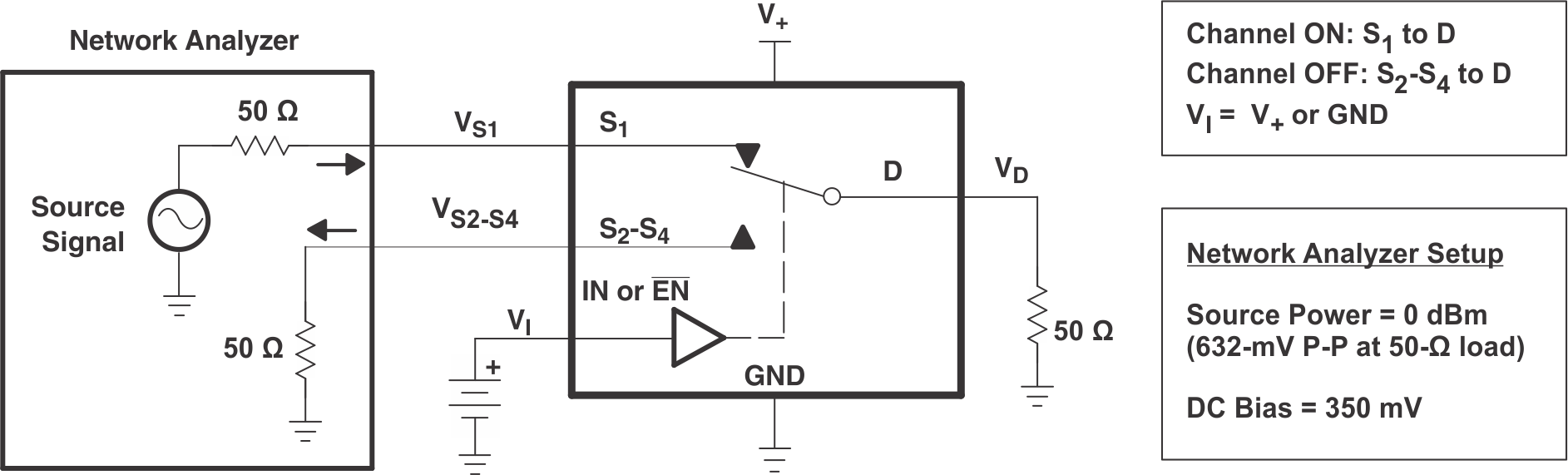

Figure 19. Crosstalk (XTALK)

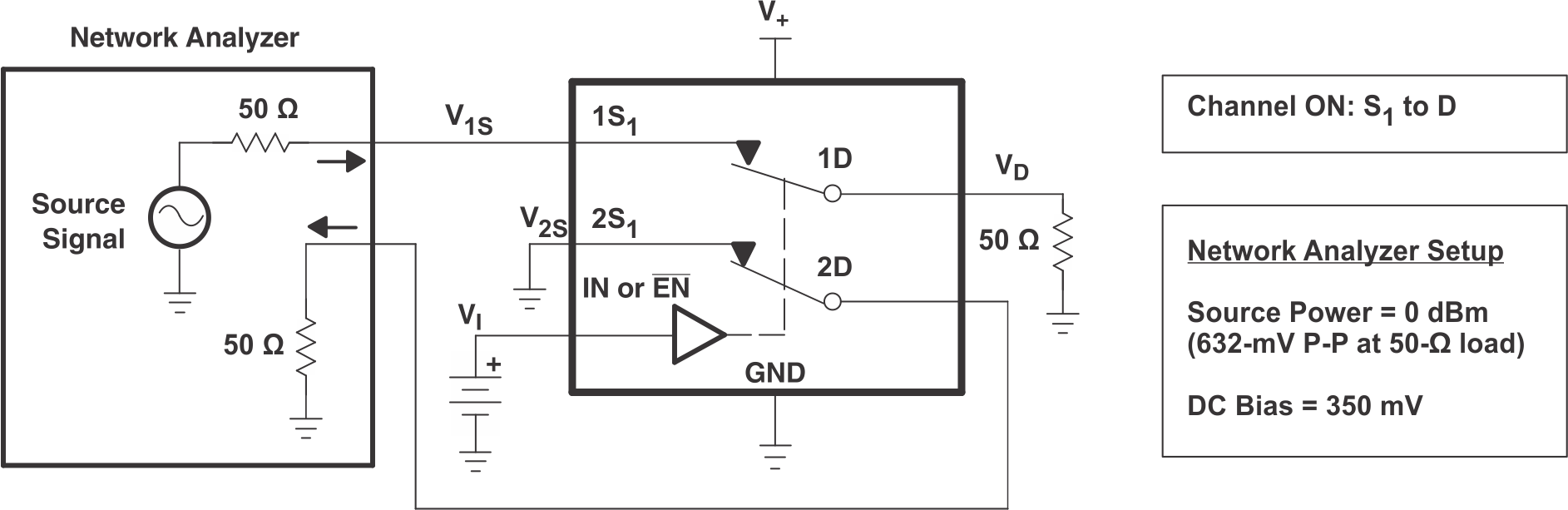

Figure 20. Adjacent Crosstalk (XTALK)
A. All input pulses are supplied by generators having the following characteristics:
PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
B. CL includes probe and jig capacitance.

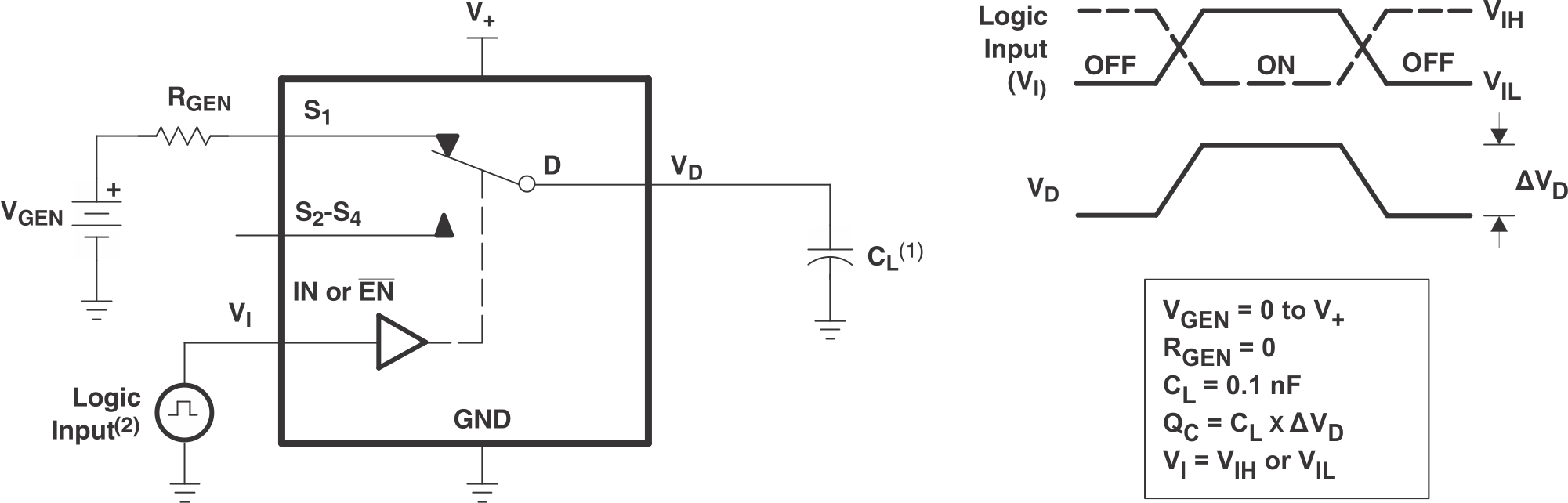

Figure 21. Charge Injection (QC)
A. CL includes probe and jig capacitance.

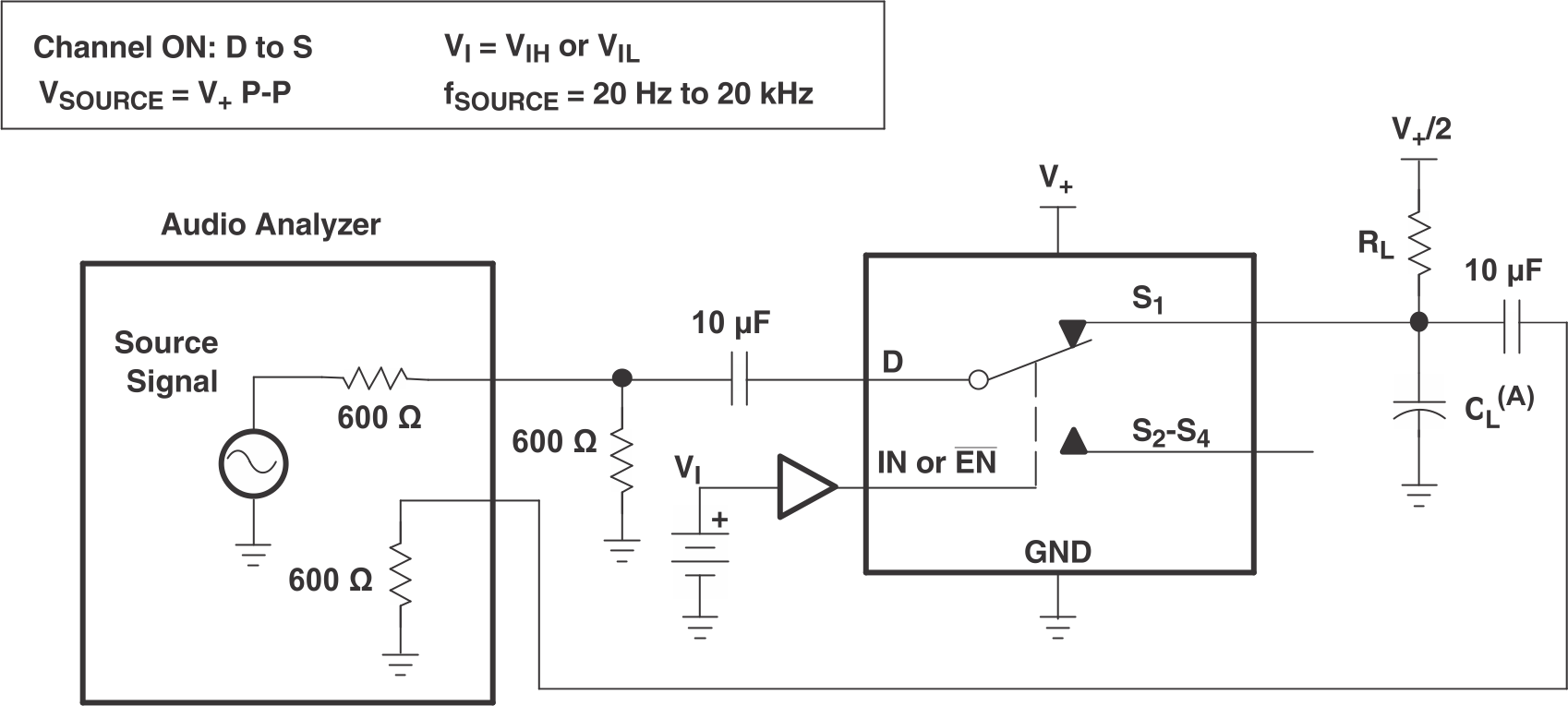

Figure 22. Total Harmonic Distortion (THD)
