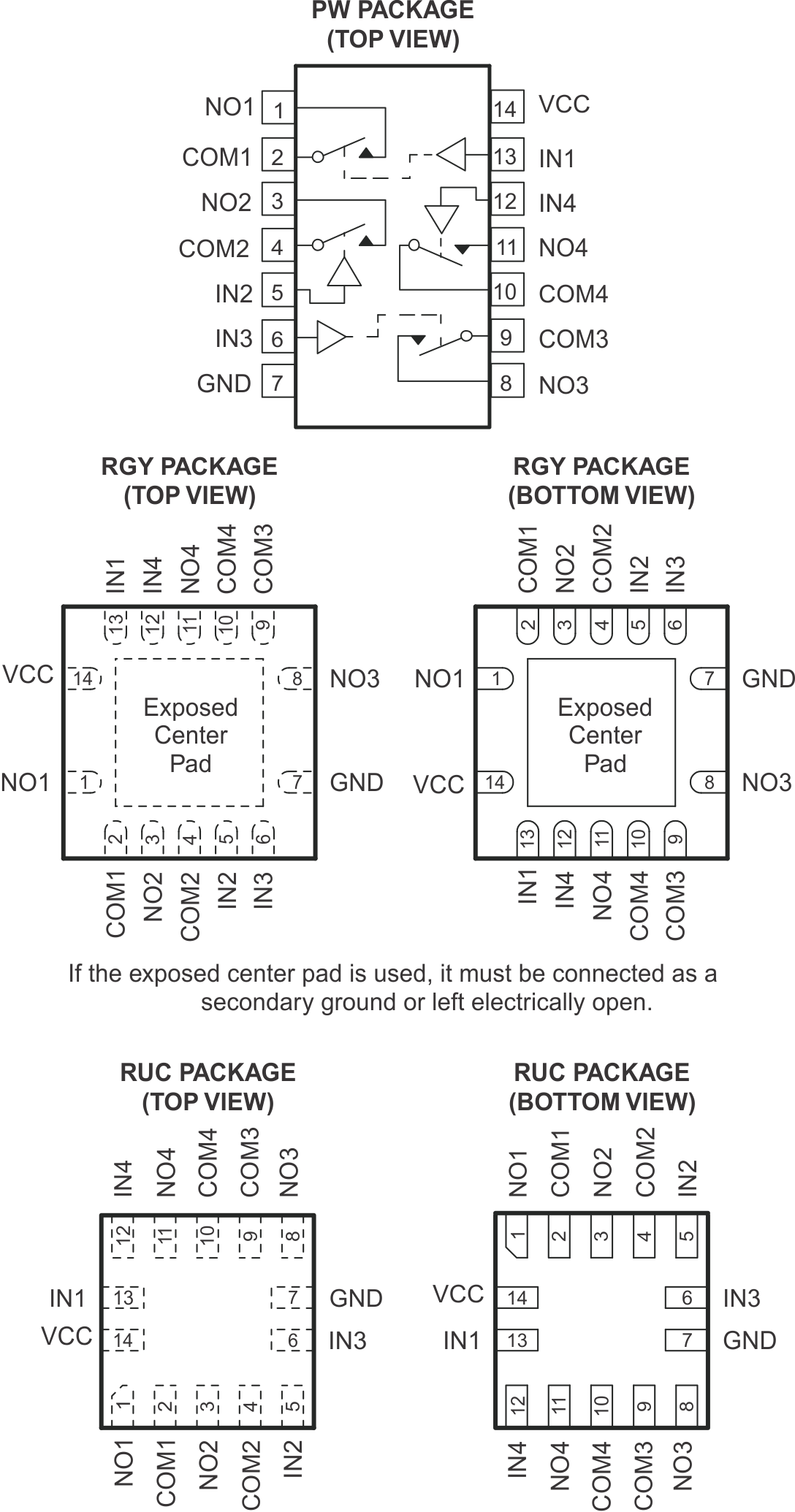

5 Pin Configuration and Functions
Pin Functions
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NO. | NAME | ||
| 1 | NO1 | I/O | Normally open signal path |
| 2 | COM1 | I/O | Common signal path |
| 3 | NO2 | I/O | Normally open signal path |
| 4 | COM2 | I/O | Common signal path |
| 5 | IN2 | I | Logic control input |
| 6 | IN3 | I | Logic control input |
| 7 | GND | — | Ground |
| 8 | NO3 | I/O | Normally open signal path |
| 9 | COM3 | I/O | Common signal path |
| 10 | COM4 | I/O | Common signal path |
| 11 | NO4 | I/O | Normally open signal path |
| 12 | IN4 | I | Logic control input |
| 13 | IN1 | I | Logic control input |
| 14 | VCC | I | Positive supply voltage |
