ZHCSJI4F July 2006 – March 2015 TS3A4751
PRODUCTION DATA.
- 1 特性
- 2 應用
- 3 說明
- 4 修訂歷史記錄
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Detailed Description
- 8 Application and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11器件和文檔支持
- 12機械、封裝和可訂購信息
封裝選項
機械數據 (封裝 | 引腳)
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
6.7 Typical Characteristics
Figure 6. Ron vs VCOM

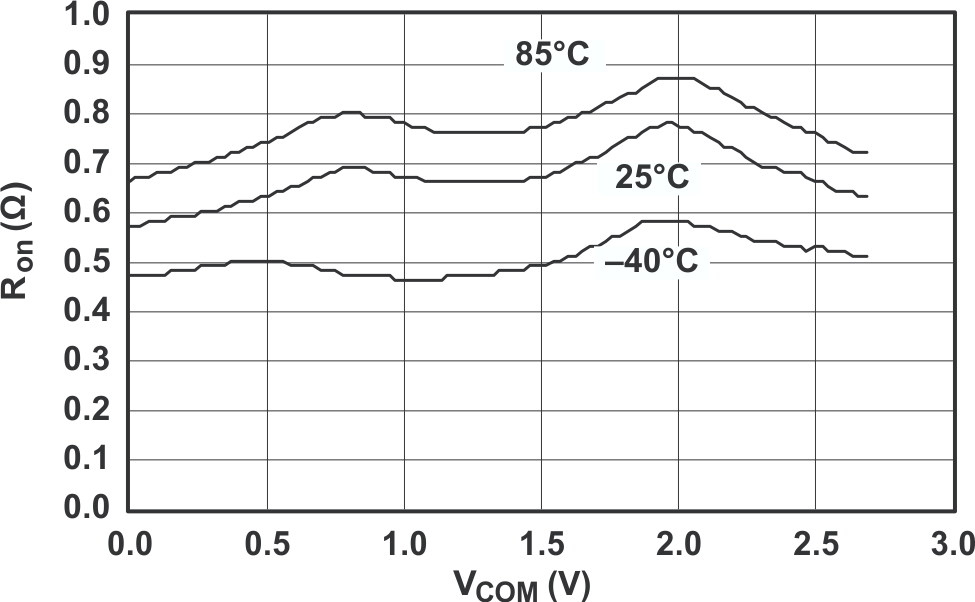

Figure 8. Ron vs VCOM (VCC = 2.7 V)

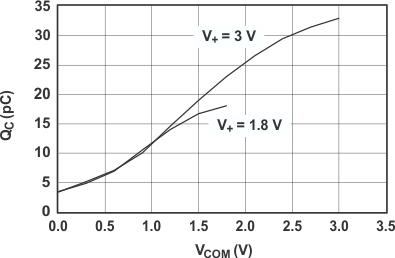

Figure 10. QC vs VCOM

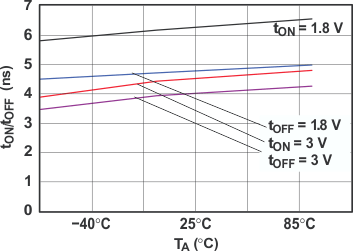

Figure 12. tON and tOFF vs Temperature

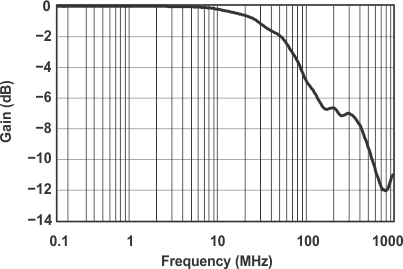

Figure 14. Gain vs Frequency
(VCC = 3 V)

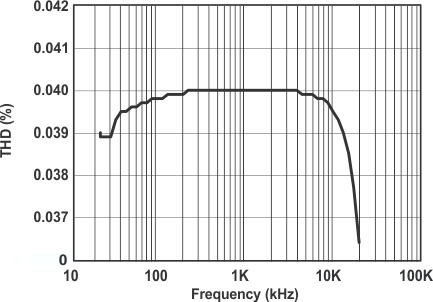

Figure 16. Total Harmonic Distortion vs Frequency
(RL = 32 Ω)
Figure 18. Crosstalk vs Frequency (VCC = 3 V)

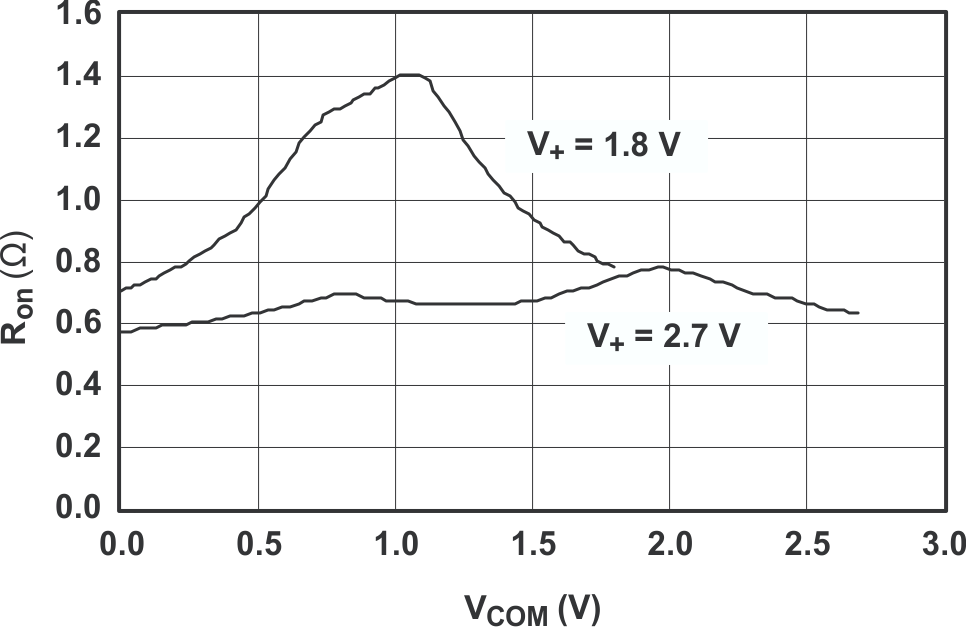

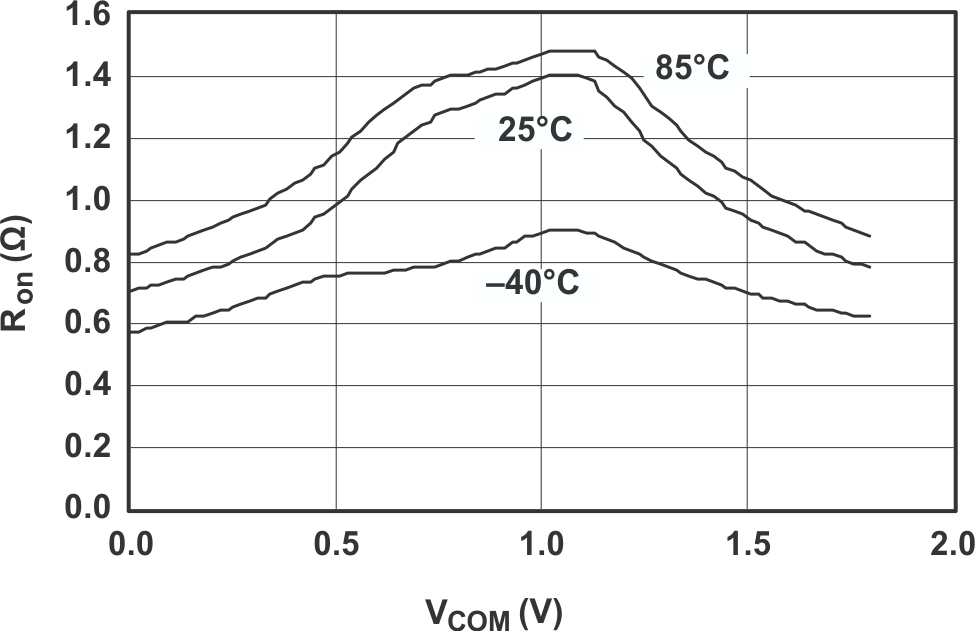

Figure 7. Ron vs VCOM (VCC = 1.8 V)
Figure 9. ION and IOFF vs Temperature
(VCC = 3.6 V)

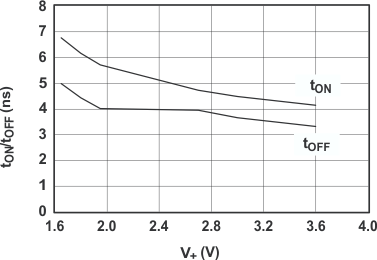

Figure 11. tON and tOFF vs Supply Voltage

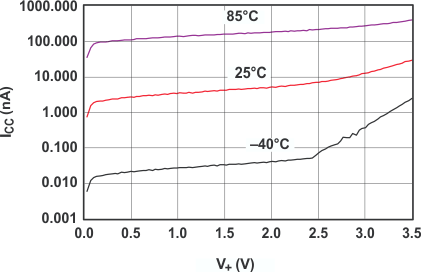

Figure 13. ICC vs VCC

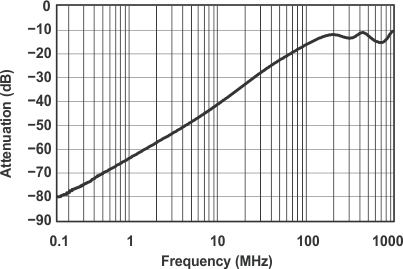

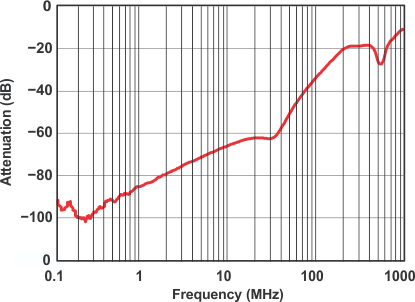

Figure 15. OFF Isolation vs Frequency
(VCC = 3 V)

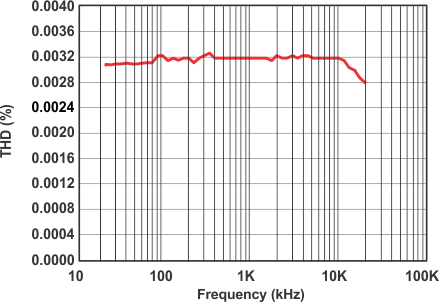

Figure 17. Total Harmonic Distortion vs Frequency
(RL = 600 Ω)
