6.7 Typical Characteristics (VIN = 12 V)
The typical characteristic data has been developed from actual products tested at TA = 25°C. This data is considered typical for the device.

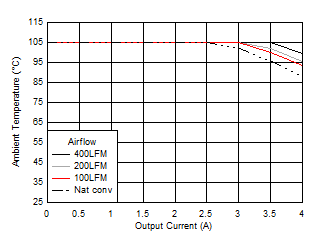

| VIN = 12 V | Linear Scale |

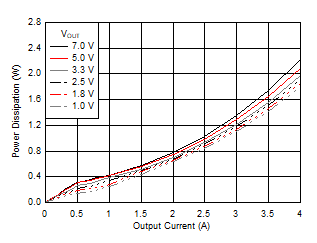

| VIN = 12 V |
| VIN = 12 V | VOUT = 1.8 V | |
| PCB = 85 mm × 65 mm, 4-layer, 2 oz. copper | ||

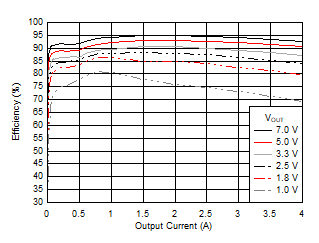

| VIN = 12 V | Log Scale |
| VIN = 12 V | COUT = 4x 47μF | ||

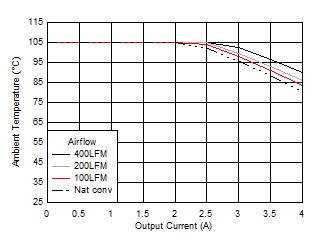

| VIN = 12 V | VOUT = 5 V | |
| PCB = 85 mm × 65 mm, 4-layer, 2 oz. copper | ||
